Emtek 3131 Da Vinci Lost Wax C...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$758.00
$606.40

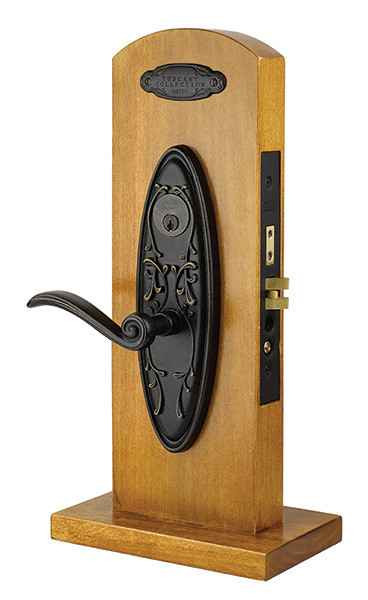

Emtek 3131 Da Vinci Lost Wax Cast Bronze Mortise Entrance Lockset - Dummy

Emtek 3131 Da Vinci Lost Wax Cast Bronze Mortise Entrance Lockset - Dummy

(No reviews yet) Write a Review

Model: 3131-RH-FB
From the Tuscany Bronze Collection
$758.00
$606.40
Selected Handing is
Selected Finish is
Selected Knob or Lever for the inside trim is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$758.00
$606.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 3131 Da Vinci Lost Wax Cast Bronze Mortise Entrance Lockset - Dummy

- Can be ordered with any Tuscany Bronze Knob, Crystal and Porcelain or Lever
- Sold as complete set.
- Handing required for All Mortise Locks

Product Codes:

Entryset: 3531
Dummy: 3131




Specifications:

  • Backset: 2-1/2" or 2-3/4"
  • Door Prep: Standard Mortise ANSI A115.1
  • UL Function: ANSI F20 or F13
  • Door Thickness: 1-3/4" standard (specify if thicker)
  • Keyway: Schlage C
  • Handing: Required – specify left or right
  • Fire Rating: UL 180 minute

Product Specs

Subcategory:
Mortise Entry Sets
Collection:
Tuscany Bronze
Product Type:
Mortise Locks
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Commercial/Residential:
Residential
Keyed Function:
Non-Keyed
Lock Type:
Mortise
Keyed:
No
Lock Function:
Dummy
Series:
Da Vinci
Theme:
Tuscany
Electronic:
No
MAP Policy:
Yes
Product Model:
3131
Product Function:
Dummy
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 3131-RH-FB – Frequently Asked Questions

1) Does the Emtek 3131 Da Vinci dummy set actually latch, or is it just trim?
It's a dummy set, non-keyed and non-latching. The 3131 mounts as a fixed handleset for an inactive leaf of a double door, a false door, or a pantry door that closes with a magnet or ball catch. If you need the door to latch and lock with a key, order the keyed entryset version, product code 3531, instead.
2) Do I have to specify handing on an Emtek Da Vinci 3131 dummy handleset?
Yes, handing is required on all Emtek mortise sets, including the 3131 dummy. It's ordered as either Left Hand (in-swing door) or Right Hand (in-swing door). Stand outside the door: if the hinges are on your left and it swings away from you, that's left hand.
3) Will the Emtek 3131 work on a door thicker than 1-3/4 inches?
1-3/4 inches is the standard build. Thicker doors are accommodated, but you have to state the actual door thickness when you order, and there's a text field for it on the 3131 for exactly that reason. Measure the slab at the lock edge before ordering.
4) What door prep does the Emtek Da Vinci mortise dummy need, and what backset?
Standard mortise prep to ANSI A115.1, with a backset of 2-1/2 inches or 2-3/4 inches. If your door is already mortised for a standard lock case, the 3131 drops into that pocket, but confirm which of the two backsets your existing prep uses so the handle centers land correctly.
5) Is an inside knob or lever included with the Emtek 3131, or do I order it separately?
It ships as a complete set, but you choose the inside trim yourself. Lever options are Medici, Napoli, Octagon, and Padua. Knobs are Octagon, Parma, Petal, Diamond, Georgetown, Old Town, Bristol, Hampton, Lowell, and Windsor, plus Ebony and Ice White porcelain. That selection is required, so nothing ships without it.
6) If I'm doing a pair of doors, what do I order alongside the 3131 dummy?
Pair the 3131 dummy on the inactive leaf with the 3531 keyed entryset on the active leaf. Order both in the same finish, the same Da Vinci trim style, and with handing that matches each leaf, since handing has to be called out on every Emtek mortise set.
7) What is the commercial equivalent of the Emtek 3131 Da Vinci dummy mortise lockset for a Grade 1 opening?
The Emtek 3131 is a residential dummy mortise set in lost wax cast bronze, non-keyed. Where a Grade 1 commercial dummy is required instead, the Schlage L0170 is a half dummy trim, Grade 1 mortise non-keyed lever lock in the L Series, heavy duty, for 1-3/4 inch doors. The Schlage is a trim-only half dummy, while the 3131 is sold as a complete set with a choice of Tuscany Bronze knob, crystal and porcelain, or lever inside trim.
8) I need a working latch on the door, not a dummy - what should I order instead of the Emtek 3131?
The Emtek 3131 is a dummy: it has no latch and no key. For an operating non-keyed latch, the Schlage PM010 is a Grade 1 passage latch mortise lock, non-keyed, for 1-3/4 inch doors, and the Hager 3810S is a Grade 1 passage mortise lock with rose and a 2-3/4 inch backset. Within Emtek's own Da Vinci mortise family, the keyed entryset is product code 3531.
9) For a bedroom or bathroom door, is the Emtek 3131 the right choice?
The Emtek 3131 is a dummy with no latch or locking function, so it suits a fixed inactive leaf or a closet face rather than a door that needs privacy. For a privacy function, the Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for 1-3/4 inch to 2 inch doors, and the Cal-Royal NM8440 is a heavy duty Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors.
10) What finishes does the Emtek Da Vinci 3131 cast bronze handleset come in?
Two lost wax cast bronze finishes: Flat Black Bronze (FB) and Medium Bronze (MB). Both are solid bronze, a living finish that will develop character with handling, so pair it with the same finish on adjacent openings if you want a consistent look.
11) Can I use the Emtek 3131 on a fire rated door?
The Da Vinci mortise entrance platform carries a UL 180 minute fire rating. Bear in mind the 3131 is the dummy configuration, so it does not latch, and a fire door assembly requires positive latching. On a rated opening use the keyed 3531 entryset on the active leaf.
12) Will the keyed version of this Emtek set key into my existing Schlage keys?
The Da Vinci mortise platform uses the Schlage C keyway, so the keyed 3531 entryset can be keyed alike with other Schlage C cylinders on the property. The 3131 itself is non-keyed and takes no cylinder at all.
13) What is a comparable decorative residential mortise entry lock body if the Emtek Da Vinci bronze look is not right for the door?
The Baldwin 6301 is an entry/apartment mortise lock body with a 2-1/2 inch backset, offered knob by knob or lever by lever (6301LS), for doors 1-3/4 inch and over. The Baldwin 6310 is the entry/storeroom version at the same 2-1/2 inch backset for doors 1-3/8 inch and over. Both are keyed entry functions, where the Emtek 3131 is a non-keyed dummy in lost wax cast bronze from the Tuscany Bronze collection.
14) Is a dummy escutcheon trim like the Falcon MESC600DT a substitute for the Emtek 3131?
No. The Falcon MESC600DT is a dummy escutcheon lever trim made for M9900 Series exit devices, so it mounts to an exit device opening rather than a mortise pocket. The Emtek 3131 is a mortise dummy set that uses a standard mortise door prep to ANSI A115.1 and is sold as a complete set with inside trim selected from the Tuscany Bronze knob and lever range. They both read as dummy hardware but they fit entirely different door preps.
15) We standardize our buildings on keyed mortise locksets - what fits that program better than the Emtek 3131?
The Emtek 3131 is non-keyed and residential. For a keyed facility standard, the Cal-Royal NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option for 1-3/4 inch doors, the Accentra 8805FL is a Grade 1 storeroom mortise lock with Arcadia lever in the 8800 Series, and the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset for 1-3/4 inch doors.
16) Does the Emtek 3131 require handing like other mortise locks, and which comparable options avoid that?
Yes - handing is required on the Emtek 3131 and it is ordered left hand or right hand for an in-swing door. If you want to avoid committing to a hand, the Falcon MA101 Grade 1 heavy duty mortise passage lock is field reversible, the BEST 45H public entrance mortise lock body is field reversible, and the Kaba Ilco 185 Series mortise locks are supplied with no handing.
17) Are there installation instructions and dimensions for the Emtek mortise handleset prep?
Yes. Emtek publishes F20 mortise lock installation instructions plus a technical specification sheet covering mortise entrance handleset dimensions and door thickness, both available with the product. Useful if your carpenter is routing the pocket rather than dropping into an existing mortise.
