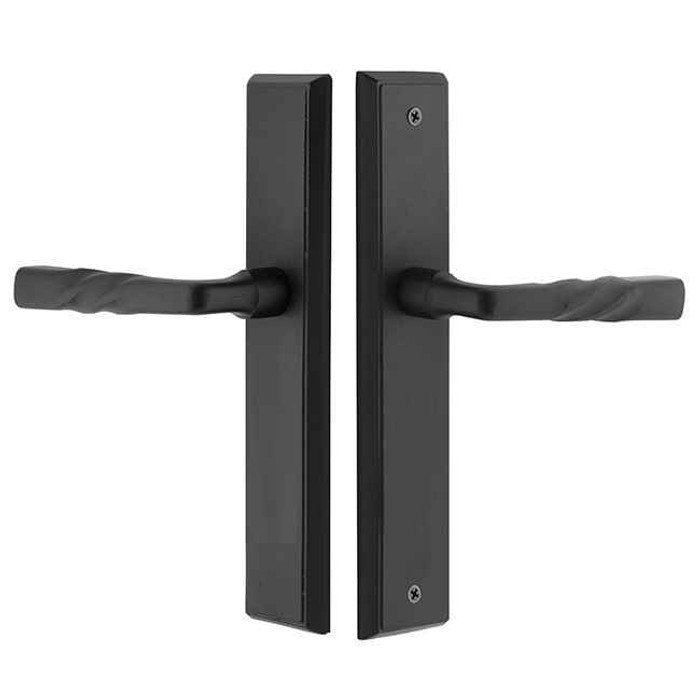

Emtek 5042 STRETTO Narrow Trim Lockset, 2" x 10" Rectangular, Brass Tubular, Dummy (Pair)
- Can be ordered with any Brass Knob or Lever
- Narrow 1-1/4" Door Preps, 3-3/8" C-to-C Hole Spacing
- Handing required for Leversets
Specifications:
- Door Thickness: 1-3/8" to 1-3/4"
- Mount: Surface Mount (no door prep required)
- Material: Brass
Manufacturer Resources
Product Specs
- Subcategory:
- Single Point Locksets
- Product Type:
- Narrow Trim Locksets
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Lock Type:
- Tubular
- Keyed:
- No
- Keyed Function:
- Non-Keyed
- Collection:
- Brass
- Lock Function:
- Dummy
- Series:
- STRETTO Rectangular
- Theme:
- Contemporary
- Electronic:
- No
- MAP Policy:
- Yes
- Product Model:
- 5042
- Product Function:
- Dummy
- Product Size:
- 2" x 10"
- Product Shape:
- Rectangular
- Product Style:
- STRETTO
- Product Material:
- Brass
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Department:
- Door Hardware
Emtek 5042-FB – Frequently Asked Questions
1) Does the Emtek 5042 STRETTO dummy set actually latch, or is it just trim?
It is a dummy set, so there is no latch and no functioning mechanism. The 2 x 10 inch STRETTO rectangular plates and the knobs or levers are fixed pull trim only, used on closet doors, inactive leaves of a pair, or french door slabs that are held closed by something else. If you need the door to latch or lock, you want a passage, privacy or keyed STRETTO set instead.
2) Do I have to bore the door for the Emtek 5042 narrow trim dummy set?
No door prep is needed. The 5042 dummy is surface mounted, so the plates and trim fasten to the face of the door. The related functioning STRETTO sets use a narrow 1-1/4 inch prep with 3-3/8 inch center-to-center hole spacing, which is why this trim lines up with those openings if you later swap functions.
3) Is handing required when I order the Emtek 5042 dummy set?
Yes, handing is a required selection, right hand or left hand. It matters because the lever castings are handed; if you pick a knob the handing choice still has to be made on the order. Determine hand from the outside of the door facing it.
4) Will the Emtek 5042 dummy trim match my other STRETTO doors that have working locks?
Yes. It is the same 2 x 10 inch STRETTO rectangular plate and takes the same brass knob and lever designs as the functioning STRETTO passage, privacy and keyed sets, so a dummy on a closet or inactive leaf reads identically to the latching doors next to it in the same finish.
5) Can I pick which knob or lever goes on the Emtek 5042 STRETTO plates?
Any Emtek brass knob or lever can be paired with it. The list runs ten levers (Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, Yuma) and fifteen knobs including Butte, Egg, Round, Winchester, Bristol, Hampton, Lowell, Windsor, Astoria, Diamond, Georgetown, Modern Disc, Modern Square, Old Town and Providence. Trim style is a required choice on the order.
6) Is the Emtek 5042 a single dummy or does it cover both sides of the door?
It ships as a pair, so you get trim for both faces of one door leaf. For a single-sided application, such as the pull side only of a closet door, a pair is more hardware than you need.
7) Is the Emtek 5042 STRETTO set suitable for a commercial opening?
It is classified residential. The STRETTO narrow trim in the brass collection is a contemporary decorative line, and as a dummy it carries no latch, grade or life-safety function, so it does not belong on a rated or high-traffic commercial door. For multifamily unit interiors and high-end residential it is the right fit.
8) Is the Emtek 5042 keyed or can a cylinder be added?
No cylinder. It is listed non-keyed, and as a tubular dummy there is nothing for a cylinder to operate. If you need key control on that opening, move to a keyed STRETTO entry set.
9) What finishes does the Emtek 5042 STRETTO rectangular dummy come in?
Three: Flat Black (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are on solid brass trim, so they match the rest of Emtek's brass collection if you are trying to keep a whole floor of doors consistent.
