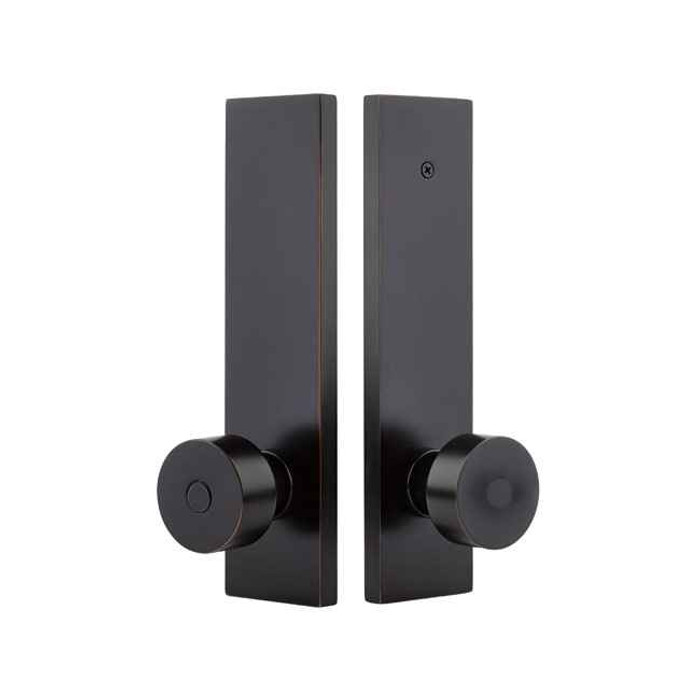

Emtek 5352 Modern Rectangular Single Point Lockset - Brass Tubular - Dummy (Pair)

It's a dummy set, so there is no latch and nothing turns anything. The knob or lever is fixed and the plate simply mounts to the face of the door as a pull and a visual match to your operating hardware. Use it on closet doors, pantry doors, French door inactive leaves, and one side of a double door where the other leaf carries the working lock. If you need the door to actually latch closed, a dummy is the wrong function.

No door prep is needed. The 5352 is surface mount, so it fastens to the face of the door with 1 inch wood screws and threaded tubes with machine screws. That makes it the easy option when you are adding hardware to a door that was never bored, and it also means you can put it on a slab that already has a hole without matching a bore pattern.

The specifications call out 1-3/8 inch to 1-3/4 inch doors, which covers standard interior slabs and standard commercial-thickness doors. There is also a door thickness entry on the order so you can state your actual slab. If your door falls outside the usual range, put the measured thickness in that field when you order rather than assuming.

Handing is required for leversets. If you pick one of the lever styles (Cortina, Hanover, Helios, Luzern, or Rope), you have to state which way the door swings so the lever points the right direction. The knob options (Egg, Providence, Rope Knob, Round, Waverly) are symmetrical and do not need handing.

The 5352 itself is non-keyed, so it can't secure anything. For the working openings on the same run, Omnia's D12036A is a single cylinder deadbolt lever lockset in solid brass, and the D12036AC is the double cylinder version, keyed on both sides for doors with glass beside them. Pair one of those on the active leaf and the Emtek dummy on the inactive one if you are willing to mix brands, or stay in the Emtek Modern Rectangular series and order the passage or keyed function on the same rectangular plate so the trim matches exactly.

Both are non-keyed dummy trim sets sold as a pair for door faces that do not latch. The Emtek 5352 is a Modern Rectangular sideplate lockset in brass with a dummy function, and it is ordered with a Key In Knob/Lever style such as the Cortina Lever, Hanover Lever, Providence Knob or Waverly Knob. The Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates on 5-1/2 inch center to center spacing, so the lever and the deadbolt plate are fixed at that dimension. If you are matching an existing pair of holes at 5-1/2 inch centers, the Omnia spacing is the governing detail; if you are choosing a knob or lever design to match other doors, the Emtek 5352 carries the wider trim selection.

The 5352 is a dummy, non-keyed set, so it has no cylinder and no latch at all. For a keyed opening in a comparable solid brass sideplate format, the Omnia D12036A is a single cylinder deadbolt lever lockset, keyed outside with a thumbturn inside. Where a door needs a key from both sides, such as a glass-adjacent entry where an inside turn could be reached, the Omnia D12036AC is the double cylinder version of the same lever lockset with a sideplate design.

Yes, with the right fasteners. Hardware for hollow-core doors is supplied on request, so note it when you order. Because the set is surface mount and carries no latch, there is no bolt load pulling on the skin, but hollow-core slabs still need the correct screws to hold.

It ships as a complete set with hardware for both sides, so one order covers a single door front and back. If you are trimming out a pair of French doors and want dummy hardware on both leaves, you need two of these.

Ten designs mount to the rectangular plate: Cortina, Hanover, Helios, Luzern and Rope levers, and Egg, Providence, Rope, Round and Waverly knobs. Any of those key-in-knob or key-in-lever styles will also work with the Annapolis trim style if you are mixing plate designs across a house.

Seven finishes: Flat Black (US19), Oil Rubbed Bronze (US10B), Polished Chrome (US26), Polished Nickel (US14), Satin Brass (US4), Satin Nickel (US15) and Unlacquered Brass (US3NL). One restriction to watch: the Rope Lever (RL) is not made in US4, US14 or US19, so if you want satin brass, polished nickel or flat black you need a different lever design. Unlacquered brass is a living finish that will darken with handling, which matters if you are trying to match existing hardware exactly.

It's classified residential, so treat it as a home or light-duty finish product rather than a spec'd commercial opening. For corridor doors, tenant entries under a commercial spec, or anything in a high-traffic institutional setting, you want a Grade 1 or Grade 2 cylindrical lockset instead. Inside a unit, on closets and interior doors where the hardware is decorative, the 5352 is fine.

Not as a like for like swap. The Emtek 5352 is a surface mounted dummy with no door prep required, so the door behind it has no bore for a latch or a cylinder. The Omnia D12036A is a single cylinder deadbolt lever lockset, which means the door has to be prepped for both a lever and a keyed deadbolt. Going from the 5352 to the D12036A is a door prep job, not a trim change.

Both suit an inactive leaf. The Emtek 5352 ships as a complete pair, so one order covers both faces, and it is a tubular brass sideplate set in a contemporary rectangular shape offered in Flat Black, Oil Rubbed Bronze, Polished Chrome, Polished Nickel, Satin Brass, Satin Nickel and Unlacquered Brass. The Omnia D12036PD is a double dummy with plates in solid brass at 5-1/2 inch center to center, which reads as a lever plus deadbolt plate rather than a single sideplate. Choose on which trim profile matches the active leaf hardware already on the pair of doors.

Brass throughout, both the material and the substrate, and it belongs to Emtek's Brass collection. That is what lets it carry finishes like unlacquered brass and satin brass honestly rather than as a plated look over a lesser base metal.

The plate is rectangular and the styling is contemporary, so it reads modern on the door even when you hang a traditional knob design like the Egg or Providence on it. That combination is useful in a renovation where the room is modern but the client wants a classic knob shape, and it's why property managers standardizing a building often pick the plate first and vary the knob by unit.

The Emtek 5352 is a residential brass set built around one sideplate profile with ten Key In Knob/Lever styles, including the Cortina, Hanover, Helios and Luzern levers and the Egg, Providence, Rope, Round and Waverly knobs, all in a single finish family across seven finishes, so units can differ in handle shape while the plate and finish stay identical. The Omnia D12036PD is a solid brass double dummy fixed to a lever with plates at 5-1/2 inch centers, which gives one consistent look with no trim choice to manage. The Emtek path suits a mix of unit types under one finish standard; the Omnia path suits a single repeated specification.
