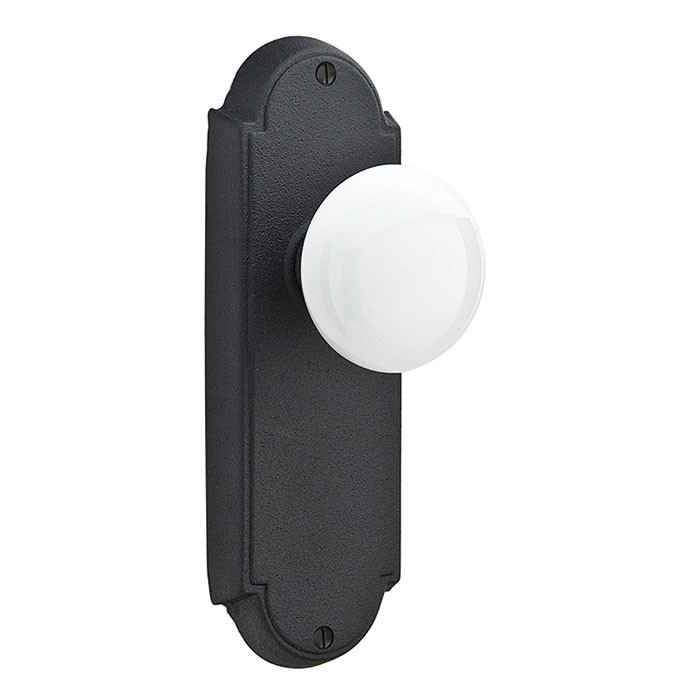

Emtek 7005 Wrought Steel #5 7-1/8" Non-Keyed Sideplate Tubular Lockset, Dummy (Pair)

No boring needed. The Wrought Steel #5 sideplate dummy set is surface mounted, so there is no door prep. That is what makes it usable on closet, pantry and French doors where you only want the look of a working lockset, since a dummy has no latch and no turning function.

It covers 1-3/8 to 1-3/4 inch doors, which spans both the common older interior thickness and standard 1-3/4 inch doors. The sideplate itself measures 7-1/8 inches, so check you have enough flat stile face for the plate to sit on.

It ships as a pair, both sides, with the knobs or levers included. That suits a set of double doors where each leaf gets one inactive trim, or a single door you want trimmed both faces.

Yes, handing is a required selection, right hand or left hand, because the lever has to point the correct way once the sideplate is mounted. Knob styles still take the handing selection on the order form. Pick the hand by standing on the outside of the door.

The Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates, listed at 5-1/2 inch center to center, and it is the nearest non-functioning sideplate-style lever set to the Emtek 7055. The Emtek 7055 is a dummy-function tubular sideplate lockset in the Wrought Steel #5 series with a 7-1/8 inch plate, offered in Flat Black Steel and Satin Steel. Both are non-latching trim; the Emtek differs in plate length and in its steel Wrought Steel styling, while the Omnia is solid brass.

The Emtek 7055 is a non-keyed dummy set, so it provides pull trim only and will not latch or lock. For a locking opening, the Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass, and the Omnia D12036AC is the double cylinder version with a sideplate design. Single cylinder takes a key outside with a thumbturn-style inside; double cylinder is keyed on both sides, which matters on glazed or sidelight-adjacent doors.

Seven trims are offered: Lafayette, Normandy and San Carlos levers, and Jamestown, Savannah, Madison Black and Madison Ivory knobs. Any Wrought Steel knob or lever style can be ordered on the plate, so you can match trim already hung elsewhere in the house.

It is a residential product. For a commercial opening with traffic and code requirements you want a Grade 1 or Grade 2 cylindrical or mortise lock instead; this dummy trim carries no latch and no grade for that use.

No. A dummy has no latch, no bolt and no moving mechanism, so it only gives a pull and a look. Doors that need to stay shut need a ball catch, roller catch, or a passage or privacy tubular lockset instead.

The Emtek 7055 requires handing to be specified, right hand or left hand, along with the inside knob or lever style. The Omnia D12036PD is catalogued as a double dummy lever lockset with plates at 5-1/2 inch center to center, supplied as a dummy pair. If you need to order left and right separately for a pair of doors, the Emtek 7055's handing selection covers that at the point of order.
