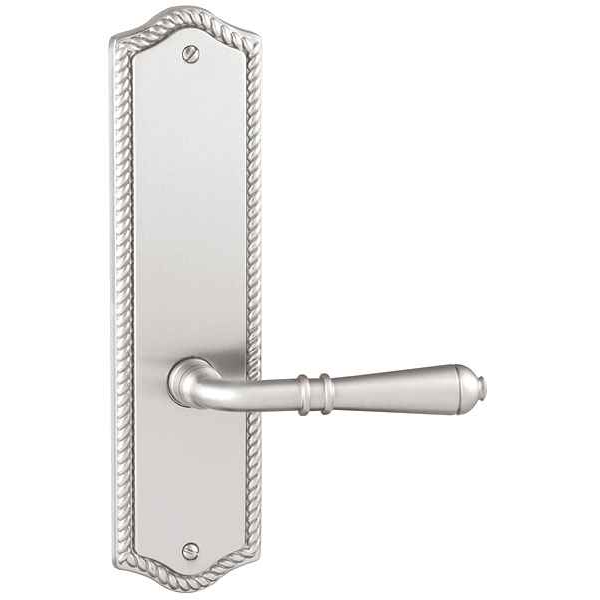

Emtek 7710 Rope 9-5/8" Non-Keyed Sideplate Lockset, Passage - Brass Tubular

Both work. The latch is adjustable for 2-3/8 inch or 2-3/4 inch backset, and backset is a required selection when you order. The standard latch ships set for 2-3/8 inch, so call out 2-3/4 inch if that is what your door is bored for.

Yes. The 7710 Rope sideplate set covers door thicknesses from 1-3/8 inch to 1-3/4 inch, which spans older interior doors at 1-3/8 inch and standard 1-3/4 inch doors. There is a door thickness field on the order so you can state the actual thickness.

No, it does not. Passage function means the latch operates from both sides at all times with no locking, no key and no thumbturn. It is for hall, closet and pantry doors. For a bathroom or bedroom you want a privacy set with a push button or turn instead.

Handing is a required selection, right hand or left hand. It matters for levers, since a lever has to sweep down toward the latch edge. Knobs are symmetrical, so if you pick a knob style the handing choice does not change how it operates, but the order still asks for it.

The Emtek 7710 Rope sideplate set is a working passage lockset - it includes a latch and strike plate and operates from both sides. On a non-operating door such as a closet or a pair of French doors held by ball catches, a dummy set is the right part instead: the Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates, 5-1/2 inch center to center, which mounts as surface trim with no latch to retract.

Yes. The 7710 Rope sideplate accepts any Emtek brass knob or lever style, so you can run Rope plates throughout and vary the trim, or pair the plate with the matching Rope Knob or Rope Lever. Crystal, marble, knurled and cast options are all on the list of inside trim choices.

Five: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Unlacquered brass is left raw and will patina with handling, so if you want the look held steady across a run of doors go with the lifetime polished brass.

It is a residential product. The 7710 Rope is a solid brass tubular set in a traditional American Designer style, intended for homes and light-duty interior openings. For a commercial corridor or a multi-family common area you want a graded cylindrical or mortise lock instead.

The 7710 Rope is non-keyed passage only. For a keyed sideplate lever, the Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass, and the D12036AC is the double cylinder version with a sideplate design, keyed both sides. If you just need matching trim on a non-operating door, the Omnia D12036PD is a double dummy with plates on 5-1/2 inch centers.

They are different functions, not interchangeable. The Emtek 7710 Rope is a 9-5/8 inch non-keyed passage sideplate lockset in brass, bored for one standard 2-1/8 inch cross bore with an adjustable 2-3/8 or 2-3/4 inch backset. The Omnia D12036AC is a double cylinder deadbolt lever lockset with a sideplate design, so it adds a keyed deadbolt above the lever and requires the corresponding deadbolt prep in the door. Use the 7710 where the door only needs to latch and the Omnia where a keyed bolt is part of the opening.
