Emtek 8141 STRETTO Narrow Trim...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$317.00
$253.60

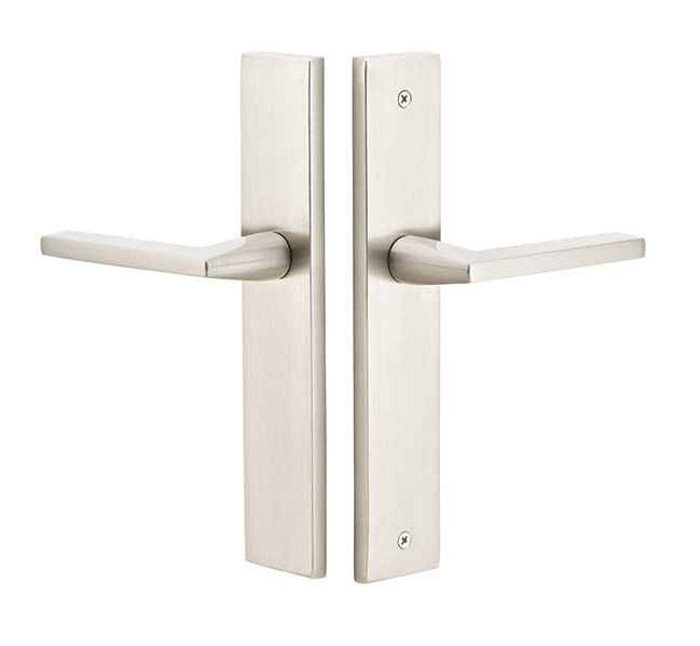

Emtek Emtek 8141 STRETTO Narrow Trim Lockset, 2" x 10" Modern Rectangular Non-Keyed, Brass Tubular, Passage EMTEK-8141

Emtek 8141 STRETTO Narrow Trim Lockset, 2" x 10" Modern Rectangular Non-Keyed, Brass Tubular, Passage

(No reviews yet) Write a Review

Model: 8141-US26
From the Brass Collection
$317.00
$253.60
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$317.00
$253.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 8141 STRETTO Narrow Trim Lockset, 2" x 10" Modern Rectangular Non-Keyed, Brass Tubular, Passage

An innovative new product leading the industry in decorative door hardware, the Emtek Stretto offers a sleek, narrow design that can be paired with any Emtek brass knob or lever allowing you to customize to your specific style. Built with high quality materials and made to order, the Stretto is a perfect blend of quality and design. Sleek, modern, and sophisticated, this Emtek leverset is suitable for even the most luxurious of homes.

Features:

  • Brass Construction
  • Left or Right Hand Application (Please Specify)
  • Narrow 1-1/4" Door Prep
  • Square or Round Corner Latch



Key Features:

  • Passage Function: Emtek passage entry sets have no locking function and are free turning on both sides. These sets are perfect for a hallway or closet where a lock isn't necessary. They can also be used in conjunction with a deadbolt to secure an entrance or back door.



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Height: 10"
  • Width: 2"
  • Door Thickness: 1-1/4" - 3"
  • Bore Hole: 1-1/4"
  • Plates: 3/4" Thick



Available Functions:

  • 8042: Keyed Dummy Set
  • 8041: Single Dummy
  • 8241: Thumb Turn Privacy
  • 8045: Non Keyed Dummy Set
  • 8442: Keyed Entry Set

Product Specs

Subcategory:
Single Point Locksets
Collection:
Brass
Product Type:
Narrow Trim Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
No
Keyed Function:
Non-Keyed
Series:
STRETTO Modern Rectangular
Theme:
Contemporary
Electronic:
No
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
8141
Product Function:
Passage
Product Size:
2" x 10"
Product Shape:
Rectangular
Product Style:
STRETTO
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 8141-US26 – Frequently Asked Questions

1) Will the Emtek 8141 Stretto passage set fit a 2-1/4 inch thick door?
Yes. The 8141 Stretto covers doors from 1-1/4 inch up to 3 inches thick, but thickness is an ordering choice, not something the standard set stretches to cover. You pick one of three ranges when you order: standard 1-1/4 to 1-3/4 inch, extended 1-3/4 to 2-1/4 inch, or extended 2-1/4 to 3 inch. A 2-1/4 inch door sits at the boundary of two of them, so order the range that brackets your actual measured door rather than the nominal one. Measure the slab at the lock stile before you order.
2) What size hole does the Emtek Stretto narrow trim lockset need in the door?
A 1-1/4 inch bore, not the 2-1/8 inch cross bore a standard tubular knob or lever set uses. That narrow prep is the whole point of the Stretto plate: the trim is only 2 inches wide by 10 inches tall, so it lands on stiles where a conventional rose or wide escutcheon will not. On a new door this is a smaller, easier prep. On an existing door already bored 2-1/8 inches, the 1-1/4 inch prep will not cover the hole, so it is not a straight swap for a standard bored set.
3) Does the Emtek 8141 lock, or do I need a deadbolt with it?
The 8141 is passage function, so it does not lock at all. Both sides turn freely at all times, no key, no thumbturn. For a hallway, closet, pantry, or a pair of doors you just want latched, that is exactly right. For a bathroom or bedroom you want the 8241 thumb turn privacy version instead. For an entry or back door, pair the 8141 with a deadbolt, or step up to the 8442 keyed entry set.
4) Do I have to specify handing on the Emtek Stretto 8141?
Yes, and it is required at the time of order, not adjusted in the field. Right hand or left hand are separate builds because the Stretto is made to order. Stand outside the door (the side it swings away from): if the hinges are on your right, it is right hand. Get it wrong and the lever points the wrong way on a plate you cannot flip.
5) Will the Emtek 8141 hit my existing 2-3/8 inch backset latch prep?
Either backset works. The 8141 ships with an adjustable latch that sets to 2-3/8 or 2-3/4 inches, and backset is a required selection when you order. 2-3/8 inch is the common residential interior backset and 2-3/4 inch is the usual entry-door backset, so measure from the door edge to the center of the existing bore and order to match. The latch is available with a square corner or round corner face, so match the corner style of the mortise already cut in your door edge and you avoid re-cutting the latch pocket.
6) Will a 2 inch wide lockset plate fit on my narrow glass-panel or French door stile?
That is what the Stretto trim is built for. The plate is 2 inches wide and 10 inches tall with a 1-1/4 inch bore, so it needs far less stile than a conventional bored set with a 2-1/8 inch cross bore. On a French door or a narrow-stile door where a standard rose crowds the glass stop, the 8141 gives you a full-height rectangular plate on a slim stile. Measure your lock stile against the 2 inch plate width plus the reveal you want on each side before committing.
7) Can I choose which knob or lever goes on the Emtek Stretto plate?
That choice is required, not optional. The 8141 plate takes any Emtek brass knob or lever, and you specify the style when ordering from a list of 89 options spanning modern levers (Stuttgart, Helios, Athena, Hermes, Poseidon), knurled and faceted bar styles (L-Square, T-Bar, R-Bar in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble), traditional knobs (Egg, Melon, Norwich, Providence, Waverly), and crystal (Bristol, Windsor, Diamond, Georgetown, Hampton, Lowell, Old Town, Providence). If you are matching other openings in a house, pick the same lever style and finish across all of them.
8) What finishes does the Emtek 8141 Stretto passage set come in?
Seven, and they are the standard Emtek brass finishes so they suite with other Emtek brass hardware in the same finish: Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). Unlacquered brass is a living finish, so it will darken and patina with handling rather than staying bright. If you are standardizing a whole floor, order the passage, privacy and entry functions in the same finish code at the same time.
9) Is the Emtek Stretto lockset suitable for a commercial building?
No. The Stretto is a residential product, brass tubular construction, and it is decorative narrow trim rather than commercial-grade hardware. For an office, school, or multi-family common area where you need a graded cylindrical or mortise lock, this is the wrong family. Where it does fit is high-end residential and residential-style interiors, including hospitality guest rooms and luxury unit interiors where the look matters more than a traffic rating.
10) I need matching dummy and privacy sets for the same doors as my Emtek 8141. What models are those?
The Stretto narrow trim family runs across the functions so the 2 inch by 10 inch plate stays identical from door to door. Alongside the 8141 passage set: 8041 single dummy, 8045 non-keyed dummy set, 8042 keyed dummy set, 8241 thumb turn privacy, and 8442 keyed entry set. Order them all in the same finish and the same knob or lever style and the closet, bath, and entry openings read as one suite.
11) How far do the Emtek Stretto plates stand off the door face?
The plates are 3/4 inch thick, which is a substantial projection for narrow trim and part of why the Stretto reads as a solid brass plate rather than a thin applied escutcheon. Worth knowing if the door sits close to a wall return, a cabinet, or a door in a pair, since the plate thickness comes on top of whatever the lever or knob projects.
12) Is the Emtek 8141 Stretto an electronic or smart lock?
No, it is purely mechanical. No electronics, no keyway, no cylinder. It is a brass tubular passage set with free-turning trim on both faces. If you need access control or a keypad on this opening, the Stretto passage set is not the part, and no electrified version of it exists in the family.
