Emtek 5141 STRETTO Narrow Trim...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$354.00
$283.20
Emtek Emtek 5141 STRETTO Narrow Trim Lockset, 2" x 10" Rectangular Non-Keyed, Brass Tubular, Passage EMTEK-5141

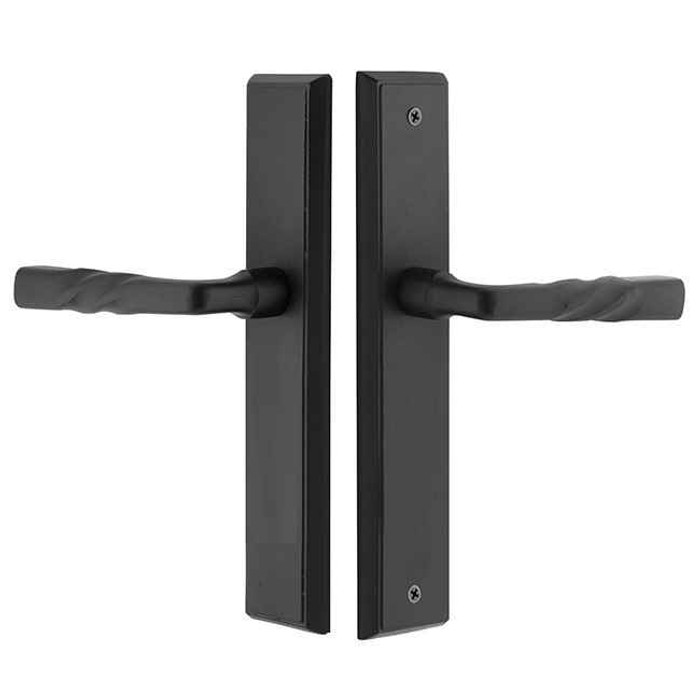

Emtek 5141 STRETTO Narrow Trim Lockset, 2" x 10" Rectangular Non-Keyed, Brass Tubular, Passage

(No reviews yet) Write a Review

Model: 5141-FB
From the Brass Collection
$354.00
$283.20
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$354.00
$283.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 5141 STRETTO Narrow Trim Lockset, 2" x 10" Rectangular Non-Keyed, Brass Tubular, Passage

  • Can be ordered with any Brass Knob or Lever
  • Sold as complete set. Includes Latch and Strike Plate
  • Narrow 1-1/4" Door Preps, 3-3/8" C-to-C Hole Spacing
  • Supplied with 28 Degree Latch
  • Standard backset is 2-3/8" backset. Specify 2-3/4" backset if required.
  • Handing required for Leverset





Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Single Point Locksets
Collection:
Brass
Product Type:
Narrow Trim Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
No
Keyed Function:
Non-Keyed
Series:
STRETTO Rectangular
Theme:
Contemporary
Electronic:
No
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
5141
Product Function:
Passage
Product Size:
2" x 10"
Product Shape:
Rectangular
Product Style:
STRETTO
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 5141-FB – Frequently Asked Questions

1) Will the Emtek 5141 STRETTO narrow plate lockset fit a narrow stile or narrow-rail door?
That is what it is built for. The 5141 STRETTO uses a narrow 1-1/4 inch door prep with 3-3/8 inch center-to-center hole spacing, so the plate and bore sit inside a narrow rail or stile where a standard 2-1/8 inch cross bore rosette set will not. The rectangular trim plate itself measures 2 x 10 inches.
2) Do I need to specify handing on the Emtek 5141 STRETTO passage set?
Handing is required, right hand or left hand, and it is a required selection on the order. It matters for the lever trims because a lever has to point toward the latch edge, and the 28 degree latch supplied with the set is oriented accordingly. If you pick one of the knob trims, still submit the handing so the latch ships correct for your door swing.
3) Which backset does the Emtek 5141 come with, and will it hit my existing strike?
Backset is a choice at order time: 2-3/8 inch or 2-3/4 inch. Those are the two standard residential bore-to-edge dimensions, so match whichever your door is already drilled for. Get the backset right and the latch lines up on the existing strike location; the set also ships with its own strike plate if you are replacing it.
4) Is the Emtek 5141 a locking set or does it just latch?
Passage only. The 5141 is non-keyed with no privacy button and no cylinder, so both sides always operate freely. Use it on hallways, closets, and pantry doors. For a bedroom or bath you want the privacy version of the STRETTO rectangular trim instead, and for an exterior door you need a keyed set.
5) Can I drop the Emtek 5141 into a door already bored for a standard knobset?
Only if that door has the narrow prep. The 5141 wants a 1-1/4 inch door prep with 3-3/8 inch hole spacing; a door bored for a conventional set has a 2-1/8 inch cross bore and a single hole, which the 2 inch wide rectangular plate will not cover. On new or re-bored doors the spec sheet also lists a 2-1/8 inch cross bore option, so confirm which prep your slab carries before ordering.
6) What comes in the box with the Emtek 5141 STRETTO lockset?
It ships as a complete set: trim for both sides, the tubular latch, and the strike plate. The latch is a 28 degree unit and the faceplate can be round corner or square corner to match your existing door mortise. Nothing else is needed for a standard install beyond the screws supplied.
7) What knob and lever styles can I put on the Emtek 5141 narrow plate?
Any Emtek brass knob or lever. The trim choice runs ten levers (Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, Yuma) and fifteen knobs (Butte, Egg, Round, Winchester, Bristol, Hampton, Lowell, Windsor, Astoria, Diamond, Georgetown, Modern Disc, Modern Square, Old Town, Providence). That lets you keep one narrow rectangular plate across a house and vary the grip by room.
8) Is the Emtek 5141 STRETTO lockset rated for a commercial building or an apartment turn?
Emtek catalogues the 5141 as residential hardware. It suits single-family, condo, and higher-end multi-family interiors where the look matters. For a commercial corridor or a high-traffic institutional opening, spec a commercial bored lockset instead of this one.
9) What finishes does the Emtek 5141 STRETTO rectangular passage set come in?
Three: Flat Black, Medium Bronze, and Tumbled White Bronze. All three are on solid brass trim with a brass substrate, so they hold up better than plated zinc on a door that gets handled daily.
