Emtek 5143 STRETTO Narrow Trim...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$354.00
$283.20
Emtek Emtek 5143 STRETTO Narrow Trim Lockset, 1-1/2" x 11" Rectangular Non-Keyed, Brass Tubular, Passage EMTEK-5143

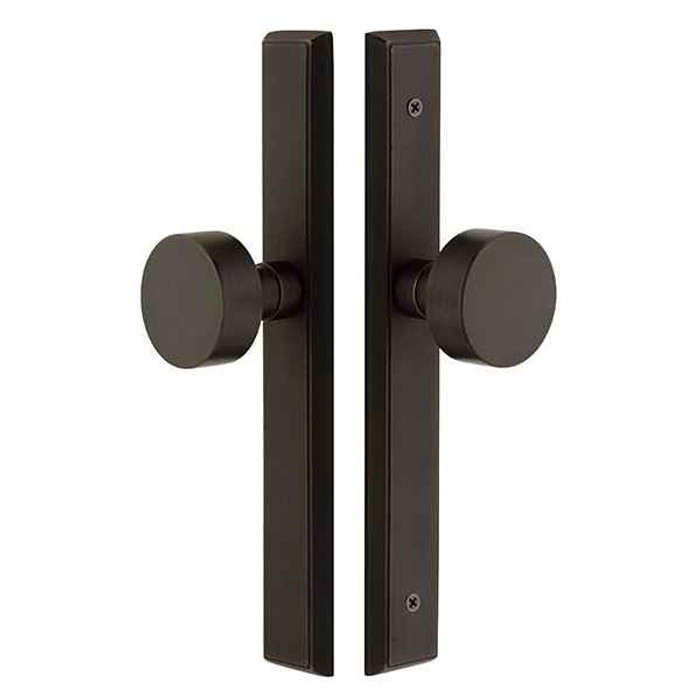

Emtek 5143 STRETTO Narrow Trim Lockset, 1-1/2" x 11" Rectangular Non-Keyed, Brass Tubular, Passage

(No reviews yet) Write a Review

Model: 5143-FB
From the Brass Collection
$354.00
$283.20
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$354.00
$283.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 5143 STRETTO Narrow Trim Lockset, 1-1/2" x 11" Rectangular Non-Keyed, Brass Tubular, Passage

  • Can be ordered with any Brass Knob or Lever
  • Sold as complete set. Includes Latch and Strike Plate
  • Narrow 1-1/4" Door Preps, 3-3/8" C-to-C Hole Spacing
  • Supplied with 28 Degree Latch
  • Standard backset is 2-3/8" backset. Specify 2-3/4" backset if required.
  • Handing required for Leverset





Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Single Point Locksets
Product Type:
Narrow Trim Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
No
Keyed Function:
Non-Keyed
Collection:
Brass
Series:
STRETTO Rectangular
Theme:
Contemporary
Electronic:
No
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
5143
Product Function:
Passage
Product Size:
1-1/2" x 11"
Product Shape:
Rectangular
Product Style:
STRETTO
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 5143-FB – Frequently Asked Questions

1) Will the Emtek 5143 STRETTO narrow trim lockset fit a standard 1-3/4 inch door?
Yes. The 5143 STRETTO passage set is specified for door thicknesses of 1-3/8 to 1-3/4 inches, which covers both a standard commercial/exterior-weight 1-3/4 inch door and the thinner 1-3/8 inch interior doors common in older homes.
2) Is the Emtek 5143 lockset suitable for a narrow-stile door or a door with a narrow rail?
That's what it's built for. The rectangular STRETTO trim plate measures 1-1/2 by 11 inches and the door preps are only 1-1/4 inch wide, so it fits stiles too narrow for a standard round rosette or a wide escutcheon.
3) Which backset do I order for the Emtek 5143 STRETTO passage set?
The latch is adjustable for either a 2-3/8 or 2-3/4 inch backset, the two backsets used on bored doors. 2-3/8 inch is the default; specify 2-3/4 inch if that's how your door is bored (measure from the door edge to the center of the 2-1/8 inch bore).
4) Do I have to specify handing on the Emtek 5143, and what if I order a knob instead of a lever?
Handing is required when you choose a lever for the inside trim, since a lever has to point the correct way on the door. Knob options aren't handed. Determine hand from the outside of the door: hinges on the right is right hand, hinges on the left is left hand.
5) Does the Emtek 5143 lock or is it just a passage set?
Passage only. It's non-keyed with no locking function at all, so both sides always operate the latch. Use it on hallways, closets, pantries, and bedroom-to-hall doors where nothing needs to lock; for a bath or bedroom that has to lock, you need a privacy or keyed version instead.
6) What comes in the box with the Emtek 5143 STRETTO set, and do I need to buy the latch separately?
It ships as a complete set including the tubular latch and the strike plate, so no separate latch purchase. The latch is a 28 degree latch, and the faceplate is available in round corner or square corner to match the mortise already cut in your door edge. You still pick the inside knob or lever style when ordering.
7) Can I pick which knob or lever goes with the Emtek 5143 narrow plate?
Yes, the 5143 accepts any Emtek brass knob or lever. Levers include Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Knobs include Butte, Egg, Round, Winchester, Bristol, Hampton, Lowell, Windsor, Astoria, Diamond, Georgetown, Modern Disc, Modern Square, Old Town, and Providence. Remember levers require handing.
8) Is the Emtek 5143 STRETTO lockset rated for commercial use?
No. It's a residential lockset, a brass tubular bored set with contemporary rectangular STRETTO trim. For an office building, school, or high-traffic multi-family common area, specify a commercial-grade cylindrical or mortise lock instead.
9) Is the Emtek 5143 a full mortise lock or a bored lockset?
Bored, not mortise. Despite the long 11 inch plate it's a tubular bored lockset that installs in a 2-1/8 inch cross bore and an edge bore for the latch, so there's no lock body pocket to rout into the door edge. That makes it far simpler to install than a mortise lock while still giving the tall narrow plate look.
10) What finishes does the Emtek 5143 STRETTO rectangular passage set come in?
Three: Flat Black (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are on solid brass trim, so if you're matching other openings in a house, order the same finish code across the sets rather than eyeballing the color.
