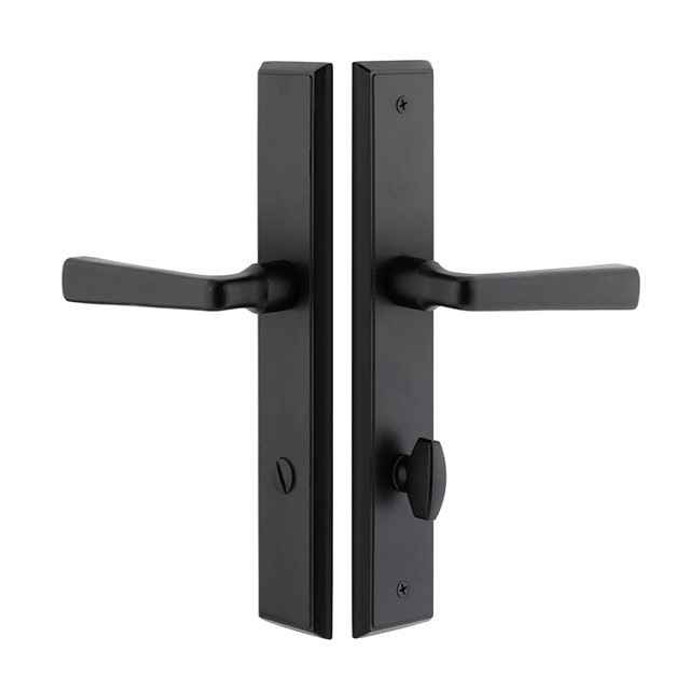

Emtek 5243 STRETTO Narrow Trim Lockset, 1-1/2" x 11" Rectangular Non-Keyed, Brass Tubular, Privacy

Yes. The 5243 is built for narrow door preps, 1-1/4 inch, with 3-3/8 inch center-to-center hole spacing between the cross bore and the latch hole area. The trim plate itself measures 1-1/2 x 11 inches, so it suits a stile that will not take a standard round rosette. Cross bore is the usual 2-1/8 inch. If your door is already prepped for a standard 2-3/8 or 2-3/4 inch backset tubular lock with a 2-1/8 inch cross bore, the bore carries over; the narrow rectangular plate is what changes.

Handing is required, right hand or left hand, and it matters for levers. A lever has to point toward the latch edge, so an unhanded order gets you a lever that droops the wrong way. Stand on the outside of the door (the side you push): if the hinges are on your right, it is right hand. Knobs are symmetrical, but the order still asks for a hand, so give it either way.

Standard shipment is 2-3/8 inch backset. A 2-3/4 inch backset is available and must be called out at order time. Measure from the door edge to the center of the 2-1/8 inch cross bore before ordering; older and heavier commercial-style doors often sit at 2-3/4 inch, most residential interior doors at 2-3/8 inch.

Non-keyed. The 5243 is a privacy set for a bedroom or bathroom door: it locks from the inside only, with an emergency release on the outside instead of a cylinder and key. If you need a key on this opening, a privacy set is the wrong function; you want a keyed entry version of the narrow trim.

It ships as a complete set: rectangular trim plates, the latch, and the strike plate. Nothing extra to source for a standard install. The latch is a 28 degree latch, and the faceplate is available round corner or square corner so it drops into whatever the existing mortise pocket in your door edge is cut to. The knob or lever for the inside trim is a required selection when you order, not a separate purchase.

Style is yours to choose and it is a required selection. Ten levers are offered (Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, Yuma) and fifteen knobs (Butte, Egg, Round, Winchester, Bristol, Hampton, Lowell, Windsor, Astoria, Diamond, Georgetown, Modern Disc, Modern Square, Old Town, Providence). Any brass knob or lever in the range can go on the 5243 rectangular trim, which is how you match one rectangular plate across a house while varying the grip.

Three finishes: Flat Black (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are on solid brass trim, so the finish sits on brass rather than a plated zinc casting. Flat Black is the usual pick alongside black windows and matte black plumbing; Tumbled White Bronze reads as a warm, lightly antiqued grey.

Narrow trim like the 5243 exists for two reasons: a door stile too slim for a round rosette, and a contemporary look where a long 1-1/2 x 11 inch rectangular plate is wanted on every opening. It preps at 1-1/4 inches with 3-3/8 inch hole spacing, so it demands a specific narrow bore pattern. A standard round rosette set works off a plain 2-1/8 inch cross bore with no second hole, so it retrofits an existing door with less work. If your doors are already bored standard and you have stile to spare, the round set is the simpler swap; if you are prepping new doors or the stile is tight, the narrow trim is what fits.

The 5243 is a residential product, brass tubular privacy trim for bedrooms and baths. For a commercial corridor or a multi-family unit entry where doors take heavy traffic or need a grade requirement met, this is not the right part; look to a commercial-grade cylindrical or mortise lock instead. Inside a unit, on bath and bedroom doors, it is on spec.

The 5243 covers the privacy openings, bed and bath. Doors that need no lock at all (closets, halls, pantry) take the passage version of the same STRETTO rectangular narrow trim, so the plate, the 1-1/2 x 11 inch footprint, the finish, and the knob or lever style all carry across the house. Keep the same finish code (FB, MB, or TWB) and the same knob or lever design on every order and the openings read identically; only the function under the trim changes.

No electronics. The 5243 is a purely mechanical brass tubular privacy set with a thumbturn-style inside lock and emergency release outside. No batteries, no wiring, no keypad, and nothing to prep in the door beyond the bore and latch mortise.
