Emtek 7243 STRETTO Narrow Trim...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$317.00
$253.60

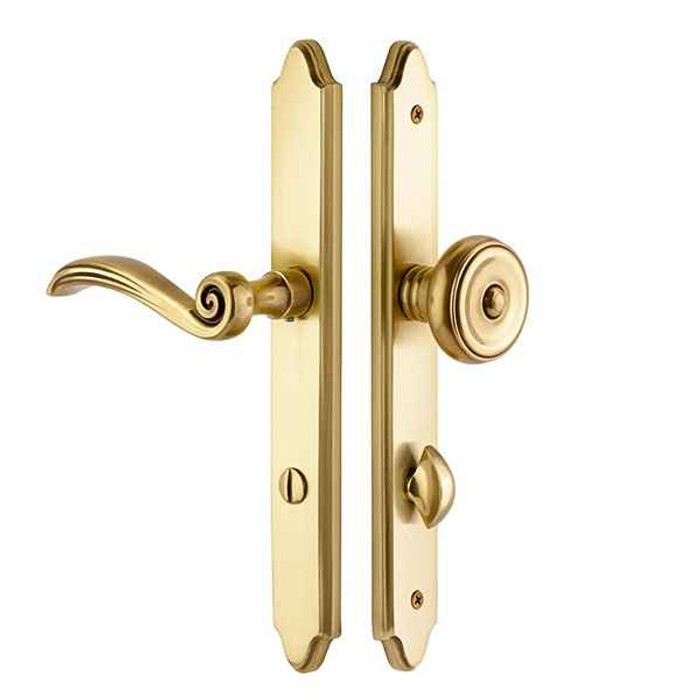

Emtek Emtek 7243 STRETTO Narrow Trim Lockset, 1-1/2" x 11" Concord Non-Keyed, Brass Tubular, Privacy EMTEK-7243

Emtek 7243 STRETTO Narrow Trim Lockset, 1-1/2" x 11" Concord Non-Keyed, Brass Tubular, Privacy

(No reviews yet) Write a Review

Model: 7243-US26
From the Brass Collection
$317.00
$253.60
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$317.00
$253.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 7243 STRETTO Narrow Trim Lockset, 1-1/2" x 11" Concord Non-Keyed, Brass Tubular, Privacy

  • Can be ordered with any Brass Knob or Lever
  • Sold as complete set. Includes Latch and Strike Plate
  • Narrow 1-1/4" Door Preps, 3-3/8" C-to-C Hole Spacing
  • Supplied with 28 Degree Latch
  • Standard backset is 2-3/8" backset. Specify 2-3/4" backset if required.
  • Handing required for Leverset





Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Single Point Locksets
Collection:
Brass
Product Type:
Narrow Trim Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
No
Keyed Function:
Non-Keyed
Lock Function:
Privacy/Bed/Bath
Series:
STRETTO Concord
Theme:
American Classic
Electronic:
No
MAP Policy:
Yes
Product Model:
7243
Product Function:
Privacy/Bed/Bath
Product Size:
1-1/2" x 11"
Product Style:
STRETTO
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 7243-US26 – Frequently Asked Questions

1) Will the Emtek 7243 Concord narrow trim lockset fit a 1-1/4 inch door prep, or does it need the standard 2-1/8 inch bore?
The 7243 Concord plate is a narrow trim set built for 1-1/4 inch door preps with 3-3/8 inch center-to-center hole spacing, and the cross bore is 2-1/8 inch. That is a different prep from a standard bored lockset, so on a door already bored for a round rose set the narrow 1-1/2 x 11 inch plate covers a different hole pattern. Check the existing prep against 3-3/8 inch c-to-c before ordering.
2) Do I have to specify handing on the Emtek Concord narrow trim lockset?
Handing is required, right hand or left hand, and it is a hard requirement when you configure a lever. Levers are handed because the return has to point toward the jamb; a knob set is symmetrical, but the order still asks for the hand. Get it wrong and the lever sits upside down on the door.
3) Which backset do I order for the Emtek 7243, 2-3/8 or 2-3/4 inch?
Both are offered and 2-3/8 inch is the standard supplied backset; specify 2-3/4 inch if that is what the door is bored for. Measure from the door edge to the center of the 2-1/8 inch cross bore. Residential interior doors are usually 2-3/8; 2-3/4 turns up on heavier or commercial-style openings.
4) Is the Emtek 7243 privacy lockset keyed, and what happens in a bed or bath lockout?
Non-keyed. The 7243 is a privacy (bed/bath) function, so it locks from inside with a turn and there is no key cylinder. It is a mechanical tubular lock, not electronic.
5) Does the Emtek 7243 Concord set come with a latch and strike, or do I buy those separately?
It ships as a complete set with the latch and strike plate included. The latch supplied is a 28 degree latch, and the faceplate is available round corner or square corner so it can match the mortise already cut in the door edge.
6) Can I pick my own knob or lever with the Emtek Concord narrow plate?
Yes, and the choice is required at order time. The Concord plate takes any Emtek brass knob or lever, and the inside trim list runs across levers (Stuttgart, Athena, Luzern, Coventry, Milano, Rustic and more), knobs (Ace, Spoke, Egg, Providence, Octagon), and crystal knobs (Bristol, Windsor, Diamond, Georgetown). Marble and knurled options are in there too. You are picking a lock body and a trim style as one order.
7) Is the Emtek 7243 narrow trim lockset suitable for a commercial building or apartment corridor doors?
It is a residential lockset. The 7243 Concord is a brass tubular privacy set catalogued for residential use, so for a commercial corridor or a graded opening you want a commercial bored or mortise lock instead. On the residential side of a multi-family property, bedroom and bath doors are exactly what it is for.
8) Will the Emtek 7243 latch into the strike already in my jamb?
It comes with its own strike plate, so the cleanest install is to use it. If you are trying to keep the existing jamb strike, the deciding numbers are backset (2-3/8 or 2-3/4, ordered) and the latch faceplate corner style (round or square), which has to match the mortise in the door edge. The 28 degree latch is what sets the strike engagement.
9) What finishes does the Emtek STRETTO Concord privacy lockset come in for matching other hardware in the house?
Seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). The unlacquered brass will patina over time rather than holding its as-shipped look, which matters if you are trying to match a fleet of doors years apart.
