Emtek 7241 STRETTO Narrow Trim...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$317.00
$253.60

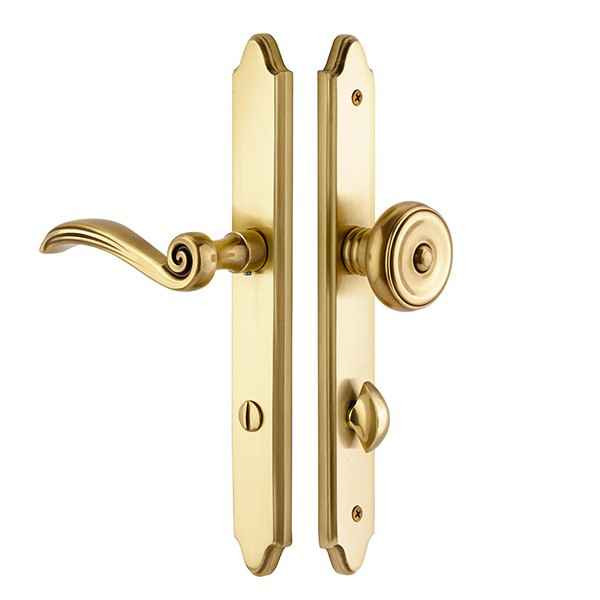

Emtek Emtek 7241 STRETTO Narrow Trim Lockset, 2" x 10-1/2" Concord Non-Keyed, Brass Tubular, Privacy EMTEK-7241

Emtek 7241 STRETTO Narrow Trim Lockset, 2" x 10-1/2" Concord Non-Keyed, Brass Tubular, Privacy

(No reviews yet) Write a Review

Model: 7241-US26
From the Brass Collection
$317.00
$253.60
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$317.00
$253.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 7241 STRETTO Narrow Trim Lockset, 2" x 10-1/2" Concord Non-Keyed, Brass Tubular, Privacy

  • Can be ordered with any Brass Knob or Lever
  • Sold as complete set. Includes Latch and Strike Plate
  • Narrow 1-1/4" Door Preps, 3-3/8" C-to-C Hole Spacing
  • Supplied with 28 Degree Latch
  • Standard backset is 2-3/8" backset. Specify 2-3/4" backset if required.
  • Handing required for Leverset





Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Single Point Locksets
Collection:
Brass
Product Type:
Narrow Trim Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
No
Keyed Function:
Non-Keyed
Lock Function:
Privacy/Bed/Bath
Series:
STRETTO Concord
Theme:
American Classic
Electronic:
No
MAP Policy:
Yes
Product Model:
7241
Product Function:
Privacy/Bed/Bath
Product Size:
2" x 10-1/2"
Product Style:
STRETTO
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 7241-US26 – Frequently Asked Questions

1) Will the Emtek 7241 Concord narrow trim lockset fit a narrow stile or French door?
That's what it's built for. The Concord narrow trim set uses a 1-1/4 inch door prep with 3-3/8 inch center-to-center hole spacing instead of the usual 2-1/8 inch cross bore through the face, so it works on narrow stiles where a standard bored lockset won't land. The trim plate measures 2 x 10-1/2 inches. Note the description also lists a 2-1/8 inch cross bore spec, so confirm which prep your door already has before you drill.
2) Does the Emtek 7241 privacy set lock with a key?
No key. The 7241 Concord is a privacy/bed/bath function, non-keyed, so it locks from the inside only for a bedroom or bathroom. If you need a keyed entry on that door, this is the wrong function.
3) What backset do I order for the Emtek Concord narrow trim lockset?
Two choices, 2-3/8 inch or 2-3/4 inch, and 2-3/8 is the standard. Measure from the door edge to the center of the bore; if it comes out at 2-3/4, specify that at order. Both are the common residential backsets.
4) Do I have to specify handing on the Emtek 7241?
Yes if you're choosing a lever. Handing is required for leversets, and you pick right hand or left hand at order. Stand outside the door: if the hinges are on your right, it's right hand. Knobs are symmetrical, but the order form still asks for handing.
5) Will this Emtek narrow trim privacy set work on a 2 inch thick door?
Yes, with the extended thickness option. Standard covers 1-1/4 to 1-3/4 inches, and two extended ranges cover 1-3/4 to 2-1/4 inches and 2-1/4 to 3 inches. A 2 inch door takes the first extended kit. Pick the range when you order, it is not adjustable after the fact.
6) What comes in the box with the Emtek 7241 Concord lockset?
It ships as a complete set: both trim plates, the latch, and the strike plate. The latch is a 28 degree latch and the faceplate is available round corner or square corner to match your existing door mortise. You still choose the knob or lever style separately, it is a required selection.
7) Can I match the Emtek Concord privacy set to the other door hardware in the house?
Fairly easily. The 7241 comes in seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). It also accepts any Emtek brass knob or lever, so you can carry one lever design across passage, privacy, and the narrow trim doors.
8) Is the Emtek 7241 rated for a commercial building or apartment corridor?
It is a residential product. The Concord narrow trim set is brass, tubular, and catalogued for residential use, so for high traffic commercial openings you want a Grade 1 or Grade 2 cylindrical lock instead. It is well suited to single family, custom homes, and light duty interior doors in a residence.
9) What is the difference between a narrow trim lockset and a standard Emtek rosette knobset?
The narrow trim version puts the knob or lever on a 2 x 10-1/2 inch plate with a 1-1/4 inch prep and 3-3/8 inch hole spacing, which lets it sit on a narrow stile like a French or glass panel door. A standard rosette set needs a full 2-1/8 inch cross bore in the face of the door and more stile width to sit in. If your door has plenty of stile, the standard set is simpler to prep.
