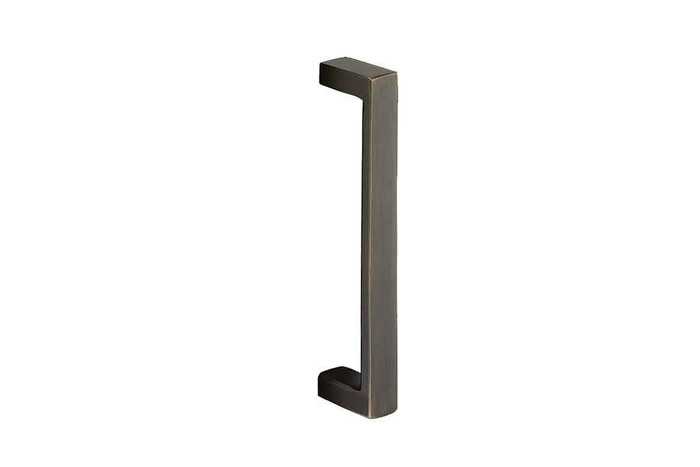

Emtek Rustic Modern Rectangular Bronze 8-3/4" Door Pull

Three ways to mount it. Standard is thru-bolt with decorative caps (86180 in each finish). Back-to-back, ordered as BTB86180, pairs the pull against matching hardware on the opposite face. Concealed surface, ordered as CS86180, hides the fasteners for a clean face. The mounting choice is part of the part number, so decide it before you order.

Because the standard version is thru-bolted. The fasteners have to pass fully through the door and land in the decorative caps on the other side, so the thickness drives the bolt length supplied. Give the actual door thickness when you order. The concealed surface version (CS86180) does not pass through the door and is the one to use where you cannot bolt through.

It is classed as residential hardware, sandcast bronze, meant for homes and light-traffic openings. For a commercial entry or an institutional corridor, go to a heavy duty commercial pull instead, such as the Ives 8103HD 1 inch round straight pull with through-bolt mounting or the Ives 8145EZHD 45 degree offset pull. Those are catalogued heavy duty.

The Emtek Rustic Modern Rectangular 8-3/4" pull is a sandcast bronze pull designated for residential use, so for a commercial entrance under constant traffic look at a heavy duty commercial pull instead. The Ives 8103HD is a heavy duty straight door pull, 1" round, with through bolt mounting, and the Ives 8102HD is a heavy duty straight pull using a 3/4" round bar with 1-1/2" clearance. The ABH AB3300 is a straight flat end commercial door pull at 1.00" diameter. All three are round-bar commercial profiles rather than the cast rectangular bronze look.

The Emtek Rustic Modern Rectangular 8-3/4" pull is offered in a Back-to-Back mounting option, ordered as BTB86180FB, BTB86180MB or BTB86180TWB depending on finish. If you want a factory back-to-back set in a different style, the Deltana SSPOBB24 is a 24" back-to-back modern offset pull, the Deltana SSPORBB24 is the same length in a round offset profile, the Deltana OHP620 is an off-set handle pull supplied as a back-to-back set for 1-1/8" to 1-3/8" doors, and the Sure-Loc Knurled Long Door Pull is made in a double-sided version.

Yes. Besides the standard thru-bolt with decorative caps, the Emtek Rustic Modern Rectangular 8-3/4" pull is offered in a Concealed Surface mounting option, ordered as CS86180FB, CS86180MB or CS86180TWB. The Sure-Loc Round Long Door Pull, Single-Sided is another option that can be set up either concealed or thru-bolt. By contrast, the Sure-Loc Knurled Long Door Pull, Single-Sided is a thru-bolt mount, and the ABH AB7200 solid stainless flat end pull at 7/8" diameter is through-bolt mounted.

The Emtek Rustic Modern Rectangular 8-3/4" pull is a residential sandcast bronze pull. Where an ADA-compliant pull is called out on the drawing, the Ives 8145 EZ Series 45 degree offset door pull is supplied with heavy duty mounting hardware and is identified as ADA compliant. Other offset options in the commercial range include the Ives 8169 C style offset solid pull at 1" diameter and the ABH AB3310 offset flat end surface mount pull.

Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are available in every mounting style. These are sandcast bronze finishes, so tone and texture vary slightly piece to piece, which is the point of the look but worth knowing if you are matching several doors.

Yes. It is catalogued as a door or appliance pull, so the same 8-3/4 inch center-to-center rectangular bronze pull works on a refrigerator or cabinet panel as well as a passage or entry door. On an appliance panel the concealed surface version is usually the one you want, since you cannot bolt through.

The BTB86180 back-to-back configuration is a matched pair sharing the same thru-bolt path, so both faces line up on the 8-3/4 inch centers and the fasteners are hidden inside the two handles. Two separately mounted singles each need their own fixing and leave caps on the opposite face. If you want a pull on both sides of the same door, order the BTB version.

No - they do different jobs. The Emtek Rustic Modern Rectangular 8-3/4" is a grip pull with an 8-3/4" center-to-center mounting spread, used on a pull side. A push plate such as the Trimco 1001-1 heavy duty push plate at 3" x 12", or the Trimco 1041 half-round push plate at 8" x 16", is a flat protective plate for the push side with nothing to grip. If you want both functions on one door, the Trimco 1070 Series classic push/pull plates at 3-1/2" x 15" pair a plate with a pull.

The Emtek Rustic Modern Rectangular 8-3/4" pull is a plain grip pull with no cylinder cutout and no secondary function, so it does not cover those cases. For a cylinder opening, the Cal-Royal PUL-175 is a night latch cylinder pull, 3-1/2" high, in stainless steel. For restroom doors where a dedicated heavy duty pull is wanted, the Trimco 1035 Ultimate Restroom Pull is built for that application.

The Emtek Rustic Modern Rectangular is a fixed 8-3/4" center-to-center size in Flat Black Bronze, Medium Bronze and Tumbled White Bronze. If the opening needs a length that is not a stock size, the ABH AB3330 Series offset round end pull is offered with custom length options.

Both the material and the substrate are bronze, sandcast, not plated steel or coated zinc. That matters outdoors: sandcast bronze weathers rather than flaking, and the Flat Black, Medium and Tumbled White Bronze finishes will soften with handling over time.
