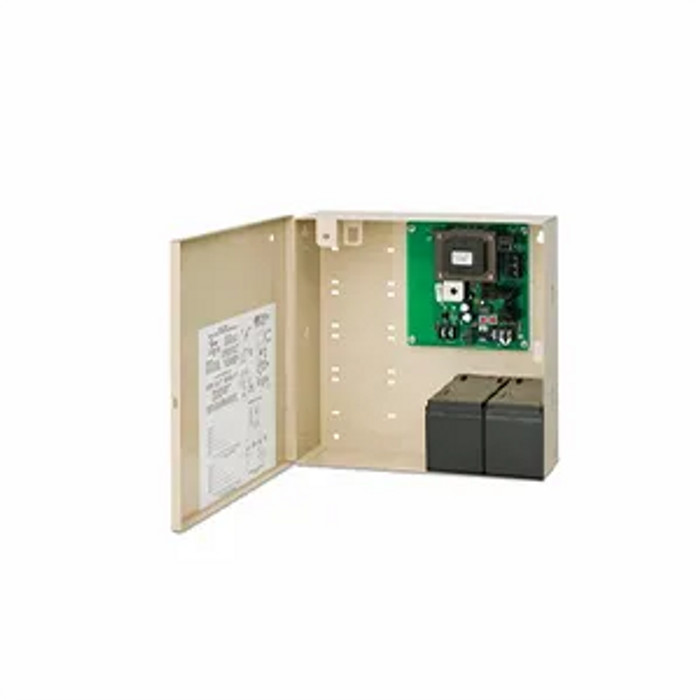

Hager 2908 1A Modular Access Control Power Supply

Specifications

Product Description Provides up to 1 amp of 12 or 24 volt DC power for all Hager Electrified Products

Accessories

• 2-679-0661 - 5 Amp hour battery backup
• 2-679-0662 - 12 VDC output regulator module (Provides 12VDC, 500mA output while power supply is configured for 24VDC)
• 2-679-0664 - Universal relay module (Provides 2 programmable relays. See installation instructions for more details)
• 2-679-0703 - Sequencer Module (Provides sequencing commonly used on openings with auto operators)
• 2-679-0704 - Access Control Module (Commonly used to isolate circuit when using access control panels)
• 2-679-0706 - Power Supply Monitor Module

Applications

• Provides up to 1 amp of 12 or 24 volt DC power for all electrified products
• Used with electric locks, strikes, magnetic locks, delayed egress, and magnetic hold opens
• Regulated modular design allows customization of each power supply to meet any application
• Filtering and output voltage regulation provides protection and ensures the longevity of all system components

Certifications UL294 Listed

Electrical Specifications

• 600mA @ 115 VAC, 50/60Hz (230 VAC optional)
• 1A @ 12/24 VDC - Field selectable
• 13.5/27 VDC, 500 mA

Features

• Fire alarm input
• Separate PTC protected charging output
• Standard California compliant manual release
• Equipped with a high performance transformer and highly reliable electronic components
• Circuit breaker protected AC input voltage - secondary output and battery backup status
• The regulator maintains the output voltage at 12 or 24 VDC regardless of load changes and battery charging

Gauge 12 Gauge Steel

LED Indicators

• Amber - AC and DC voltages are OK
• Green - No DC output
• Red - No AC input, powered by batteries

Size 12" Height, 12" Width, 4" Depth

Voltage

• 12/24VDC Field Selectable
• 230V/50Hz

Warranty One-year
