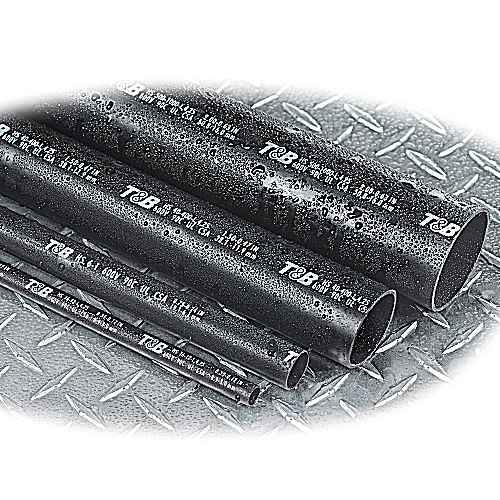

Thomas & Betts HS40-400 Heavy-Wall Heat-Shrinkable Tubing

Thomas & Betts Heavy-Wall Heat-Shrinkable Tubing 2/0-350 MCM Cable Range with Factory-Applied Sealant

(No reviews yet) Write a Review

Model: HS40-400
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$91.42
$36.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts Heavy-Wall Heat-Shrinkable Tubing 2/0-350 MCM Cable Range with Factory-Applied Sealant

Professional Cable Protection for Underground, Submersible & Direct Burial Applications

Thomas & Betts heavy-wall heat-shrinkable tubing delivers superior cable protection with factory-applied sealant for demanding underground residential distribution, submersible, and direct burial installations. Made of thermally stabilized cross-linked polyolefin with 0.16" nominal recovered wall thickness, this professional-grade tubing provides enhanced mechanical protection and moisture resistance for 2/0-350 MCM cable ranges with 600V rating and -55�C to 110�C temperature range.

Professional Features & Benefits

  • 2/0-350 MCM Cable Range: Accommodates a wide range of cable sizes for versatile installation applications and professional flexibility.
  • Factory-Applied Sealant: Provides superior moisture protection and environmental sealing for long-term reliability in harsh conditions.
  • 0.16" Nominal Recovered Wall: Delivers enhanced mechanical protection with wall thickness greater than original cable jacket for superior durability.
  • 3:1 Shrink Ratio: Ensures proper fit and secure installation with reliable shrinkage from 1.5" expanded to 0.47" recovered inner diameter.
  • 600V Rating: Meets professional voltage requirements for residential and commercial electrical applications with reliable performance.
  • UL & CSA Certifications: Ensures compliance with North American safety standards for professional electrical installations.
  • -55�C to 110�C Range: Withstands extreme temperature variations for reliable performance in diverse environmental conditions.

Technical Specifications

  • Cable Range: 2/0 - 350 MCM
  • Color: Black
  • Department: Electrical
  • Maximum Recovered I D Inches: 0.47
  • Minimum Expanded I D Inches: 1.5
  • Nominal Recovered Wall Inches: 0.16
  • Order Multiple: 10
  • Outer Package: 10
  • Package Height: 8
  • Package Length: 8
  • Package Width: 8
  • Rohs Compliance: Yes
  • Shrink Ratio: 3:01
  • Shrink Temperature: 120�C
  • Standard Length Inches: 8
  • Style: HS Series - Black
  • T B Sold In Uom: Each
  • T B Weight Per Uom: 13.5 lbs. per 100
  • Temperature Range: -55�C - 110�C
  • Voltage Rating: 600V

Professional Applications

  • Underground Residential Distribution Systems
  • Submersible Cable Installations
  • Direct Burial Electrical Applications
  • Commercial Underground Power Distribution
  • Industrial Cable Protection Systems
  • Utility Infrastructure Projects
  • Municipal Electrical Systems

Why Choose Thomas & Betts Quality?

Thomas & Betts delivers proven reliability with UL and CSA certifications, ensuring professional-grade performance for demanding electrical applications. The thermally stabilized cross-linked polyolefin construction and factory-applied sealant provide long-term durability and moisture protection for critical underground and submersible installations.

Manufacturer Resources

Product Specs

Cable Range:
2/0 - 350 MCM
Maximum Recovered I D Inches:
0.47
Minimum Expanded I D Inches:
1.5
Nominal Recovered Wall Inches:
0.16
Order Multiple:
10
Outer Package:
10
Package Height:
8
Package Length:
8
Package Width:
8
Rohs Compliance:
Yes
Shrink Ratio:
3:01
Shrink Temperature:
120°C
Standard Length Inches:
8
T B Sold In Uom:
Each
T B Weight Per Uom:
13.5 lbs. per 100
Temperature Range:
-55°C - 110°C
Voltage Rating:
600V
Department:
Electrical
Product Color:
Black
Product Style:
HS Series - Black
Product Type:
Heat Shrink Tubing
Product Group:
Wire Connectors & Terminals
Product Subgroup:
Wire Termination

Thomas & Betts HS40-400 – Frequently Asked Questions

1) What cable sizes does the Thomas & Betts HS40-400 heat shrink tubing fit?
The HS40-400 heavy-wall tubing covers a 2/0 through 350 MCM cable range. It goes on at a minimum expanded inner diameter of 1.5 inches and recovers down to 0.47 inches, so anything in that conductor range can be slid over before heating. Cable outside that range needs a different size in the HS series.
2) Can this heat shrink tubing be direct buried or used in a submersible vault?
Yes. The HS40-400 is built for underground residential distribution, submersible and direct burial work. The factory-applied sealant lines the inside and flows when heated to seal out moisture, and the cross-linked polyolefin wall recovers to a 0.16 inch nominal thickness, which is heavier than most cable jackets.
3) Is this tubing rated for 600 volt secondary cable?
600V is the rating on the HS40-400, which covers secondary and service distribution work. It is not a medium-voltage product, so do not use it on primary URD cable above 600V.
4) What temperature do I need to shrink this tubing, and will a heat gun do it?
Recovery starts at 120 C, so a propane torch with a spreader or a high-output electric gun will do it. A standard low-temp craft gun will not get there reliably. Work the heat around the circumference rather than at one spot until the sealant beads out at both ends.
5) Will this heat shrink hold up in freezing weather and on hot conductors?
The service range is -55 C to 110 C, which covers outdoor winter burial and the operating temperature of loaded secondary conductors. The thermally stabilized cross-linked polyolefin keeps its flexibility at the cold end rather than cracking.
6) Do I have to buy Thomas & Betts HS40-400 tubing in a case, or can I get one piece?
It is sold each, but the order multiple is 10 and the outer package holds 10, so it comes out of the box in tens. Weight runs 13.5 lbs per 100 pieces if you are figuring freight on a larger order.
7) Is the HS40-400 RoHS compliant for a government or institutional job?
Yes, the HS40-400 is RoHS compliant, which covers most public-agency and institutional material submittals. The part number to put on the submittal is HS40-400, black, from the Thomas & Betts HS series.
