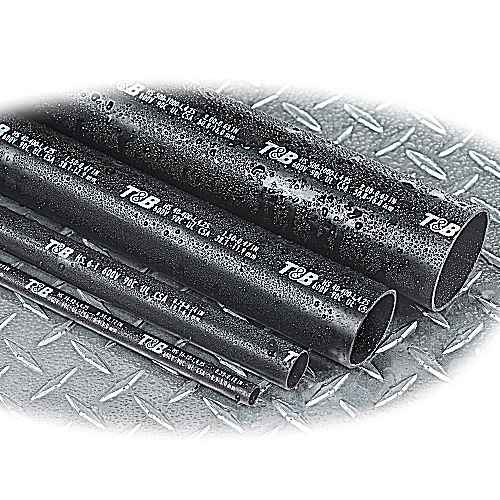

Thomas & Betts HS6-1L Heavy-Wall Heat-Shrinkable Tubing

Thomas & Betts Heavy-Wall Heat-Shrinkable Tubing 6-2 AWG 600V with Factory-Applied Sealant

(No reviews yet) Write a Review

Model: HS6-1L
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$73.96
$19.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts Heavy-Wall Heat-Shrinkable Tubing 6-2 AWG 600V with Factory-Applied Sealant

Professional Underground & Direct Burial Cable Protection

Thomas & Betts heavy-wall heat-shrinkable tubing delivers superior cable protection for 6-2 AWG applications with 600V rating and factory-applied sealant. Made of thermally stabilized cross-linked polyolefin, this professional-grade tubing provides recovered wall thickness greater than the original cable jacket, ensuring reliable protection for underground residential distribution, submersible, and direct burial installations.

Professional Features & Benefits

  • 6-2 AWG Cable Range: Accommodates standard residential and commercial cable sizes for versatile installation applications.
  • 600V Voltage Rating: Meets electrical safety requirements for standard power distribution systems.
  • Factory-Applied Sealant: Provides moisture protection and environmental sealing without additional materials or preparation.
  • 3:1 Shrink Ratio: Ensures proper fit and secure installation over various cable jacket materials including lead, steel, aluminum, copper, and plastic.
  • Temperature Range -55�C to 110�C: Withstands extreme environmental conditions for reliable long-term performance.
  • UL and CSA Certifications: Meets North American safety standards for professional electrical installations.
  • Cross-Linked Polyolefin Construction: Delivers superior mechanical strength for demanding underground and direct burial applications.

Technical Specifications

  • Cable Range: 6 - 2 AWG
  • Color: Black
  • Department: Electrical
  • Fits Al Cu Splice With Max Length: 2.5
  • Maximum Recovered I D Inches : 0.24
  • Minimum Expanded I D Inches : 0.75
  • Nominal Recovered Wall Inches : 0.09
  • Order Multiple: 25
  • Outer Package: 25
  • Package Height: 8
  • Package Length: 8
  • Package Width: 8
  • Rohs Compliance: Yes
  • Shrink Ratio: 3:01
  • Shrink Temperature: 120�C
  • Standard Length Inches : 8
  • Style: HS Series - Black
  • T B Sold In Uom: Each
  • T B Weight Per Uom: 5.5 lbs. per 100
  • Temperature Range: -55�C - 110�C
  • Voltage Rating: 600V

Professional Applications

  • Underground Residential Distribution (U.R.D.) Systems
  • Direct Burial Cable Installations
  • Submersible Pump Connections
  • Utility Service Entrance Protection
  • Commercial Underground Power Distribution
  • Industrial Cable Splice Protection
  • Municipal Infrastructure Projects

Why Choose Thomas & Betts Quality?

Thomas & Betts heavy-wall heat-shrinkable tubing combines UL and CSA certifications with RoHS compliance for professional reliability. The thermally stabilized cross-linked polyolefin construction and factory-applied sealant deliver long-term protection against moisture and mechanical stress in the most demanding underground and direct burial applications.

Manufacturer Resources

Product Specs

Cable Range:
6 - 2 AWG
Fits Al Cu Splice With Max Length:
2.5
Maximum Recovered I D Inches:
0.24
Minimum Expanded I D Inches:
0.75
Nominal Recovered Wall Inches:
0.09
Order Multiple:
25
Outer Package:
25
Package Height:
8
Package Length:
8
Package Width:
8
Rohs Compliance:
Yes
Shrink Ratio:
3:01
Shrink Temperature:
120°C
Standard Length Inches:
8
T B Sold In Uom:
Each
T B Weight Per Uom:
5.5 lbs. per 100
Temperature Range:
-55°C - 110°C
Voltage Rating:
600V
Department:
Electrical
Product Color:
Black
Product Style:
HS Series - Black
Product Type:
Heat Shrink Tubing
Product Group:
Wire Connectors & Terminals
Product Subgroup:
Wire Termination

Thomas & Betts HS6-1L – Frequently Asked Questions

1) Will Thomas & Betts HS6-1L heat shrink tubing fit over a 6 AWG to 2 AWG cable splice?
Yes. The HS6-1L is sized for a 6 to 2 AWG cable range. It slides on at a minimum expanded inside diameter of 0.75 inch and recovers down to a maximum recovered ID of 0.24 inch, so it grips tightly over conductors and connectors in that range. It also covers aluminum/copper splice connectors up to 2.5 inches long within its 8 inch tube length.
2) Can this heavy-wall heat shrink tubing be used for direct burial?
That's what it's built for. The HS6-1L is heavy-wall cross-linked polyolefin with factory-applied sealant, intended for underground residential distribution, submersible pump leads, and direct burial splices. The sealant means you don't need to add mastic or tape for moisture sealing, and the recovered wall of 0.09 inch is thicker than the typical cable jacket it covers.
3) What temperature do I need to hit to shrink the HS6-1L tubing, and will it survive underground heat cycling?
Shrink temperature is 120 C, so a propane torch or a high-output heat gun is required; a standard low-temp gun may not recover it fully. Once installed, the tubing holds an operating range of -55 C to 110 C, which covers buried and outdoor service conditions.
4) Is this heat shrink tubing rated for 600 volt circuits?
Yes, the HS6-1L carries a 600V rating, which covers standard residential and commercial power distribution splices. It is not a medium-voltage product, so for primary URD cable above 600V you need a separate MV splice kit.
5) Do I have to buy Thomas & Betts HS6-1L tubing in a case quantity?
The tubing is sold each, but the order multiple is 25 and the outer package holds 25 pieces, so orders go in increments of 25 tubes. Weight runs 5.5 lbs per 100 pieces, which is useful if you are freighting a large job order.
6) Will a 3:1 shrink ratio tubing seal over an irregular splice with a connector bulge?
Yes. With a 3:1 ratio the HS6-1L goes on loose at 0.75 inch ID and pulls down to 0.24 inch, so it conforms over the step from connector body to cable jacket without wrinkling or leaving a void. The description notes it recovers over lead, steel, aluminum, copper, and plastic jacket materials.
7) Is the HS6-1L tubing RoHS compliant and what color is it?
Black, part of the Thomas & Betts HS Series, and RoHS compliant. Black is the standard choice for buried and outdoor work since it holds up to UV better than light-colored jacketing.
