Hercules® 5/16 in. Johni-Bolts® - Extra-Long
90174 - spec sheet
Features
- Used to secure water closets to flanges
- Used on new installations or replacement of existing waterclosets
- not classified as hazardous in accordance with OSHA 1910.1200
- For warranty product details, refer to the Oatey limited Warranty document

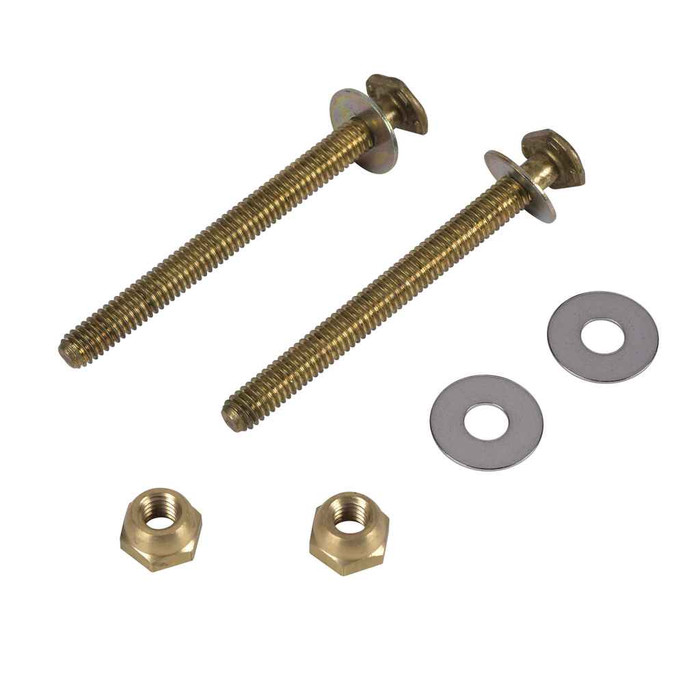

- Packaged in pairs (two bolts with captive washer, two washers, two brass acorn nuts per plastic bag)
- Captive washer keeps bolt upright and prevents it from falling through the flange
- 5/16 in.dia x 3 1/2 in. long solid brass closet bolts
90174 - spec sheet
Manufacturer Resources
Product Specs
- Application:
- Floor Mounted Toilet
- Volume:
- 0.01
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Fittings
- Product Type:
- Brass Fittings
- Product Finish:
- Brass
- Product Material:
- Solid Brass
- Product Weight:
- 0.207
OATEY 90174 – Frequently Asked Questions
1) What size are the Oatey 90174 Johni-Bolts and how long are they?
The Oatey 90174 Hercules Johni-Bolts are 5/16 inch diameter solid brass closet bolts, 3-1/2 inches long. The extra length is what you want when the flange is set low in a thick floor buildup, or when tile and mortar have raised the finished floor above the flange and a standard 2-1/4 inch bolt runs out of thread before the nut bites.
2) How many bolts come in a pack of Oatey 90174 closet bolts?
Packaged in pairs: two bolts with captive washer, two washers, and two brass acorn nuts per plastic bag. That is one toilet's worth of hardware, so order one bag per water closet you are setting. The wax ring or gasket is separate.
3) Will the Oatey 90174 bolts corrode in a bathroom floor?
They are solid brass, bolt and acorn nut both, so there is nothing to rust where the bolt sits in standing water or wax at the flange. That is the reason brass is the standard for closet bolts rather than plated steel, which seizes and snaps when a maintenance tech has to pull the toilet years later.
4) Are these the right bolts for a wall hung toilet or only floor mounted?
Floor mounted toilets. The 90174 Johni-Bolts secure a water closet down to a closet flange in the floor. A wall hung bowl mounts to a carrier in the wall and uses that carrier's own studs, not closet bolts.
5) Can I use Oatey 90174 Johni-Bolts to reset an existing toilet, or are they only for new installs?
Both. They are specified for new installations and for replacing or resetting an existing water closet. Standard practice is to use fresh bolts on every reset rather than reusing the old ones, since the old brass has usually been cut short and the threads chewed up by the nut.
6) Will 5/16 inch Johni-Bolts fit a standard closet flange slot?
Yes. 5/16 inch is the common closet bolt diameter, and the slots and keyholes in standard cast iron, PVC, and ABS closet flanges are cut for it. The bolt head slides into the slot and turns to lock under the flange ring.
7) Do extra-long 3-1/2 inch closet bolts need to be cut down after the toilet is set?
Usually yes. At 3-1/2 inches the bolt will stand well above the acorn nut on a normal china base, so you snap or hacksaw the excess off after the nut is snug and before the cap goes on. Buying the extra-long version gives you the reach when the floor is built up and lets you trim when it is not.
8) Are Oatey Johni-Bolts a hazardous material for shipping or facility handling?
No. The 90174 brass closet bolts are not classified as hazardous under OSHA 1910.1200, which keeps them simple for institutional receiving and MRO stockrooms with chemical-reporting requirements.
