HID 5355ABK00 ProxPro with Wie...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$850.97
$641.47
HID HID 5355ABK00 ProxPro with Wiegand output, Keypad and Terminal Strip, Beige 5355ABK00

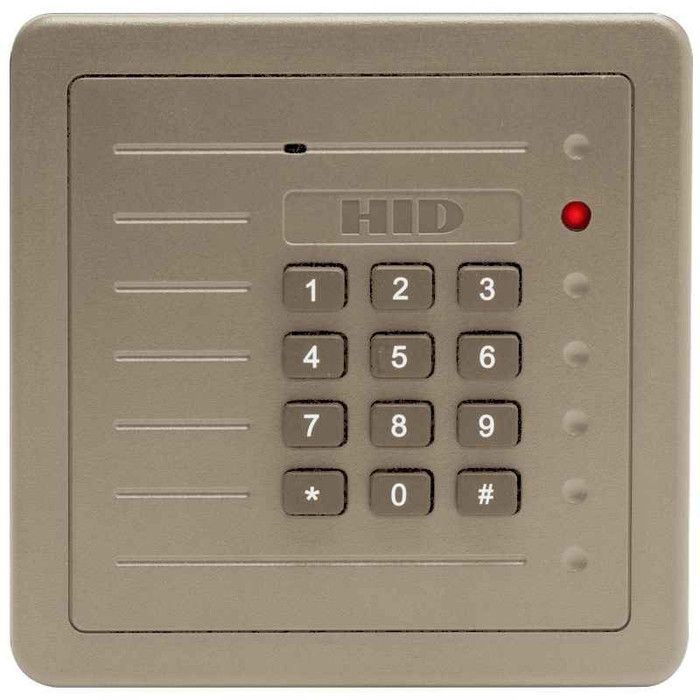

HID 5355ABK00 ProxPro with Wiegand output, Keypad and Terminal Strip, Beige

(No reviews yet) Write a Review

Model: 5355ABK00
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$850.97
$641.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ProxPro® with keypad
125 kHz keypad proximity card reader with keypad
Base Part Numbers • 5355, 5352, 5358

• Ideal for medium-range applications
• Available with Wiegand, Serial (RS-232/RS-422) or
Clock-and-Data interface
• Power requirements: 10-28.5 VDC
• Dimensions: 5.0 ̋ x 5.0 ̋ x 1.0 ̋ (12.7 cm x 12.7 cm x 2.54 cm)
• Read Range: up to 8.0 ̋ (20.5 cm)*

Manufacturer Resources

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Product Type:
Credential Readers
Subcategory:
Credential Readers
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

HID 5355ABK00 – Frequently Asked Questions

1) What voltage does the HID ProxPro 5355 keypad reader need?
The ProxPro with keypad runs on 10 to 28.5 VDC, so it will sit on the same 12V or 24V supply most access control panels already provide. No separate transformer is needed if your panel has an auxiliary DC output in that band.
2) Will the HID 5355ABK00 ProxPro work with my Wiegand access control panel?
Yes. The 5355ABK00 is the Wiegand output version of the ProxPro, wired through a terminal strip rather than a pigtail. The ProxPro family is also built in Serial (RS-232/RS-422) and Clock-and-Data versions, so if your panel expects one of those interfaces you need a different base part number, not this one.
3) What size opening or mounting footprint does the ProxPro keypad reader take?
The reader measures 5.0 x 5.0 x 1.0 inches (12.7 cm x 12.7 cm x 2.54 cm). That is a wall-mount footprint, too wide for a standard door mullion, so plan on mounting it on the wall beside the opening rather than on the frame.
4) How far will the HID ProxPro read a proximity card?
Up to 8 inches (20.5 cm) on 125 kHz proximity credentials. That is medium range, meant for a card presented at the reader rather than read from inside a vehicle or through a bag at a distance. Actual range drops with metal mounting surfaces and nearby electrical noise.
5) Do I need a keypad reader or will a card-only proximity reader do?
The 5355 ProxPro combines a 125 kHz proximity reader with an integrated keypad, which is what you want when the panel is set up for card-plus-PIN at higher security openings, or when you need PIN-only entry for people without a credential. If every user carries a card and the panel does not enforce a PIN, a card-only reader covers the same opening with less to maintain.
6) Is the 5355 the same reader as the 5352 and 5358?
They are the same ProxPro platform with different base part numbers covering the interface and configuration options: 5355, 5352, and 5358. Pick the base number that matches the output your panel expects; 5355ABK00 is the Wiegand, keypad, terminal strip, beige build.
7) Is the HID 5355ABK00 reader beige or black, and is there another color?
The 5355ABK00 ships in beige. It is a single-finish part number, so if the rest of your readers in the building are black or gray you would be ordering a different ProxPro part number to match.
8) Is the ProxPro reader rated for commercial installations?
Yes, the ProxPro is a commercial-duty electronic access control reader, not a residential product. It is the kind of unit specified for office suites, schools, and multi-tenant entries where a panel-driven credential system is already in place.
