HID 5355ABN00 ProxPro with Wie...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$537.09
$429.47
HID HID 5355ABN00 ProxPro with Wiegand output, No Keypad, with Terminal Strip, Beige 5355ABN00

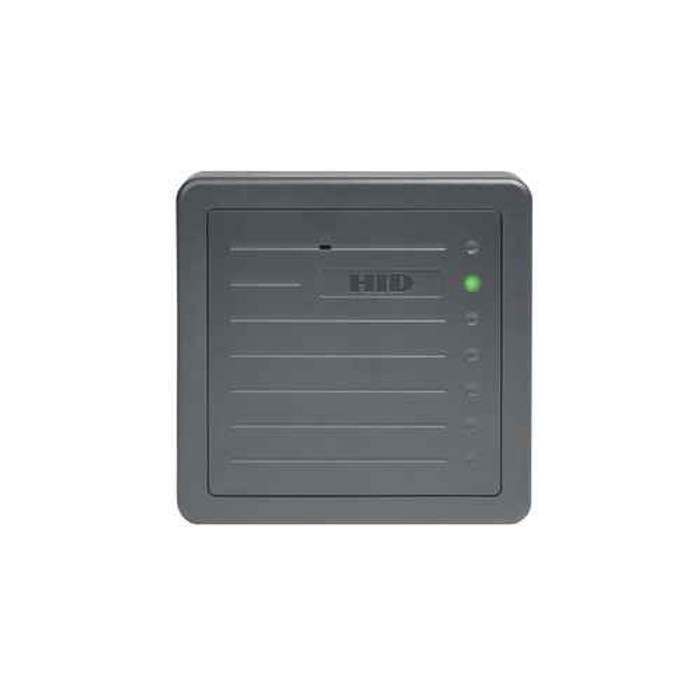

HID 5355ABN00 ProxPro with Wiegand output, No Keypad, with Terminal Strip, Beige

(No reviews yet) Write a Review

Model: 5355ABN00
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$537.09
$429.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ProxPro®
125 kHz versatile proximity card reader
Base Part Numbers • 5355, 5352, 5358

• Ideal for medium-range applications
• Available with Wiegand, Serial (RS-232/RS-422) or
Clock-and-Data interface
• Power requirements: 10-28.5 VDC
• Dimensions: 5.0 ̋ x 5.0 ̋ x 1.0 ̋ (12.7 cm x 12.7 cm x 2.54 cm)
• Read Range: up to 8.0 ̋ (20.5 cm)*

Manufacturer Resources

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Product Type:
Credential Readers
Subcategory:
Credential Readers
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

HID 5355ABN00 – Frequently Asked Questions

1) How far will the HID ProxPro read a 125 kHz prox card?
Read range is up to 8.0 inches (20.5 cm) on the ProxPro, which puts it in the medium-range class rather than a mini-mullion reader. That is enough for a user to present a badge in a wallet at a door or to reach out from a vehicle window at a short-arm gate location. Range varies with the credential used and nearby metal.
2) Will the HID ProxPro fit on a door frame mullion?
No. The ProxPro housing measures 5.0 x 5.0 x 1.0 inches (12.7 cm x 12.7 cm x 2.54 cm), which is a full wall-switch-plus size unit. It needs flat wall or wide-frame surface. For a narrow aluminum stile or mullion you want a slim mullion-style prox reader instead.
3) Does the HID 5355ABN00 ProxPro have a keypad for PIN entry?
No keypad on the 5355ABN00. It is card-read only, so it suits card-only openings. If your access plan calls for card-plus-PIN at this door, you need the keypad version of the ProxPro family rather than this one.
4) What output does the ProxPro 5355ABN00 send to the access control panel?
Wiegand output on the 5355ABN00. The ProxPro base part numbers 5355, 5352 and 5358 cover Wiegand, Serial (RS-232/RS-422) and Clock-and-Data interfaces, so if your panel input is serial or clock-and-data, the 5355 is the wrong base number for that head end.
5) Is the ProxPro wired with a pigtail or a terminal strip?
This version lands on a terminal strip, so the installer terminates field wiring directly at the reader instead of splicing a flying pigtail in the box behind it. Handy on retrofits where the existing cable run is cut short.
6) Is the ProxPro reader beige or black, and does the color affect anything else?
The 5355ABN00 is beige. Color is cosmetic only on this reader, but on a facility where you are standardizing dozens of openings it decides whether the new door matches the rest. Electrical and read performance are the same across housings.
7) Is the HID ProxPro rated for commercial building use?
Yes, the ProxPro is a commercial-grade credential reader used on access-controlled openings in offices, schools, healthcare and multi-family, not a residential product.
