HID 5355AGK00 ProxPro with Wie...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$850.97
$551.45

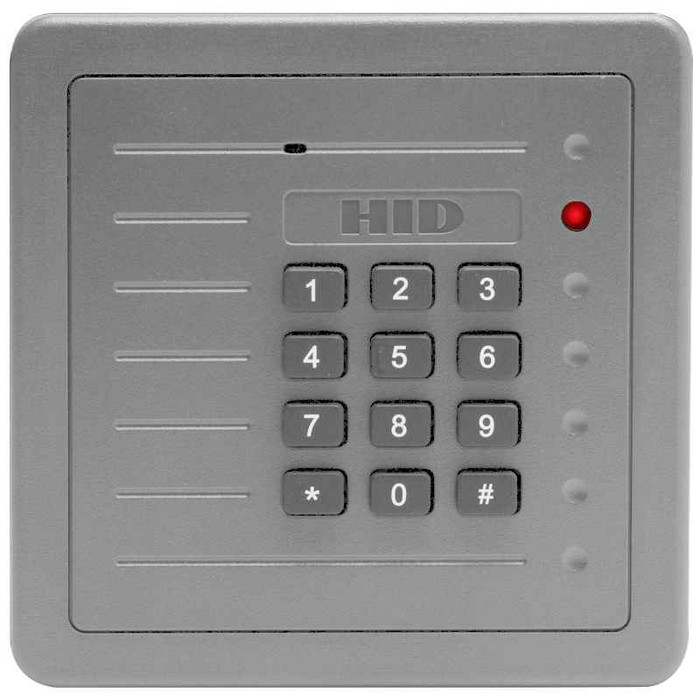

HID HID 5355AGK00 ProxPro with Wiegand output, Keypad and Terminal Strip, Charcoal Gray 5355AGK00

HID 5355AGK00 ProxPro with Wiegand output, Keypad and Terminal Strip, Charcoal Gray

(No reviews yet) Write a Review

Model: 5355AGK00
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$850.97
$551.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ProxPro® with keypad
125 kHz keypad proximity card reader with keypad
Base Part Numbers • 5355, 5352, 5358

• Ideal for medium-range applications
• Available with Wiegand, Serial (RS-232/RS-422) or
Clock-and-Data interface
• Power requirements: 10-28.5 VDC
• Dimensions: 5.0 ̋ x 5.0 ̋ x 1.0 ̋ (12.7 cm x 12.7 cm x 2.54 cm)
• Read Range: up to 8.0 ̋ (20.5 cm)*

Manufacturer Resources

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Product Type:
Credential Readers
Subcategory:
Credential Readers
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

HID 5355AGK00 – Frequently Asked Questions

1) Will the HID ProxPro 5355AGK00 work with my existing Wiegand access control panel?
The 5355AGK00 is the Wiegand output version of the ProxPro, so it wires to any panel input expecting standard Wiegand from a card reader. The ProxPro is also built in Serial (RS-232/RS-422) and Clock-and-Data versions, so if your panel takes clock-and-data or a serial reader input, the 5355AGK00 is the wrong variant of the family for you.
2) Do I need a separate keypad next to my prox reader for PIN entry?
No. The ProxPro 5355AGK00 has the keypad built into the same 5.0 x 5.0 x 1.0 inch housing as the 125 kHz proximity reader, so card-only, PIN-only, or card-plus-PIN is handled by one device on one gang of wiring. Whether the panel enforces card-plus-PIN is a panel configuration matter, not a reader one.
3) Can an HID ProxPro be mounted on a door mullion or narrow frame?
Not really. At 5.0 x 5.0 x 1.0 inches the ProxPro is a square wall-mount reader, far wider than a typical aluminum door stile or mullion. It goes on the wall beside the opening. For a mullion you want a narrow-profile 125 kHz reader instead.
4) What is the difference between the HID 5355, 5352 and 5358 ProxPro readers?
They are the three interface builds of the same ProxPro platform: 5355 is the Wiegand base, with 5352 and 5358 covering the serial and clock-and-data outputs. Physically and functionally they are the same 125 kHz keypad reader; you pick the base number that matches what your controller accepts. The 5355AGK00 is a 5355, so it is the Wiegand one.
5) Does the HID 5355AGK00 come with a pigtail or does it terminate to screw terminals?
Terminal strip. The 5355AGK00 is the terminal strip build, so the installer lands conductors on screws inside the reader rather than splicing a flying pigtail in the back box. On a retrofit where the existing cable is short, that is usually the easier of the two to work with.
6) Is the HID ProxPro keypad reader rated for commercial building use?
Yes, it is a commercial-duty electronic access control reader, not a residential product, and it is the sort of device standardized across a facility so every opening carries the same credential and PIN behavior. It ships in charcoal gray.
