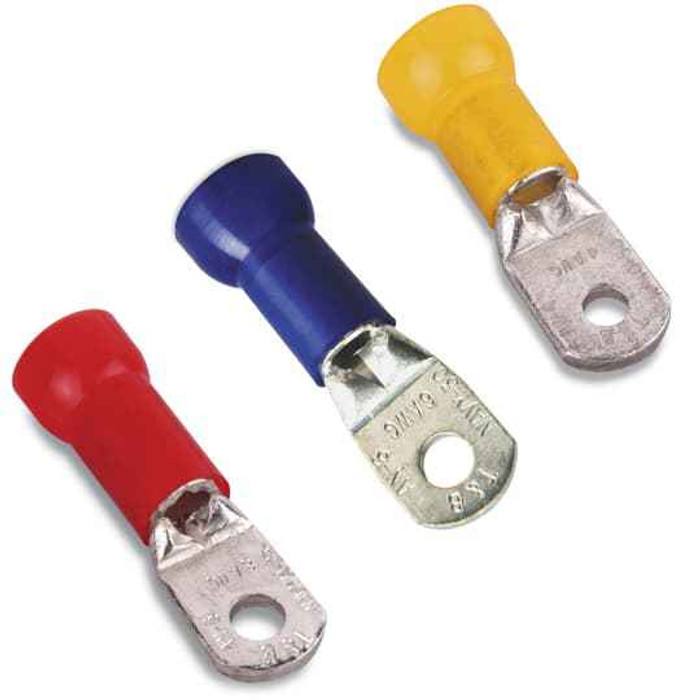

INS NYL RING TERM 2 BOLT 3/8 IN RED
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 2N A
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Copper
Sta-Kon RG9731 – Frequently Asked Questions
1) What stud size does the Sta-Kon RG9731 ring terminal fit?
The RG9731 is a 3/8 inch ring terminal, so it lands on a 3/8 inch stud, bolt or busbar tap. If your lug pad is drilled for 1/4 or 5/16, this ring will sit loose on it and you want the matching smaller ring size instead.
2) What wire gauge does the Sta-Kon RG9731 red ring terminal take?
It's sized for 2 AWG conductor. Red on this Sta-Kon ring terminal is the body color rather than a small-gauge code, so don't read it as the 22-16 AWG red you see on standard insulated terminals. Use it on 2 AWG copper and nothing smaller, or the crimp won't hold.
3) Why is the RG9731 called a 2-bolt ring terminal?
It's a two-hole tongue, meaning two 3/8 inch mounting holes on the pad instead of one. Two bolts keep the lug from rotating under torque and spread current across two contact points, which is what panel and switchgear specs usually call for on feeder-size terminations. If your busbar is drilled for a single stud, a one-hole ring is the part you need.
4) Can I use this Sta-Kon terminal on 480V equipment?
Yes. The RG9731 carries a 600 V rating, which covers 120/208, 277/480 and other common commercial power circuits. It is UL recognized under file E9809.
5) Do I need a special crimper for a 2 AWG Sta-Kon ring terminal?
Yes. At 2 AWG this is a power-size termination, well past what a hand plier-style insulated terminal crimper will do. You need a hydraulic or heavy mechanical crimper with the die matched to 2 AWG copper. The insulated barrel also means the die has to be one that crimps over insulation without splitting the nylon.
6) Does the nylon insulation on this ring terminal need separate heat shrink or tape?
No. The RG9731 comes with a nylon insulated barrel already on it, which covers the crimp and the end of the conductor insulation. Nylon takes abuse better than vinyl in panel work where the lug may get flexed or scuffed during pull-in. Add heat shrink only if your spec calls for extra strain relief.
7) Where is the Sta-Kon RG9731 made?
Mexico. That's the stated country of origin on the RG9731 ring terminal, which is the line item procurement and government buyers usually need for trade-compliance paperwork.
