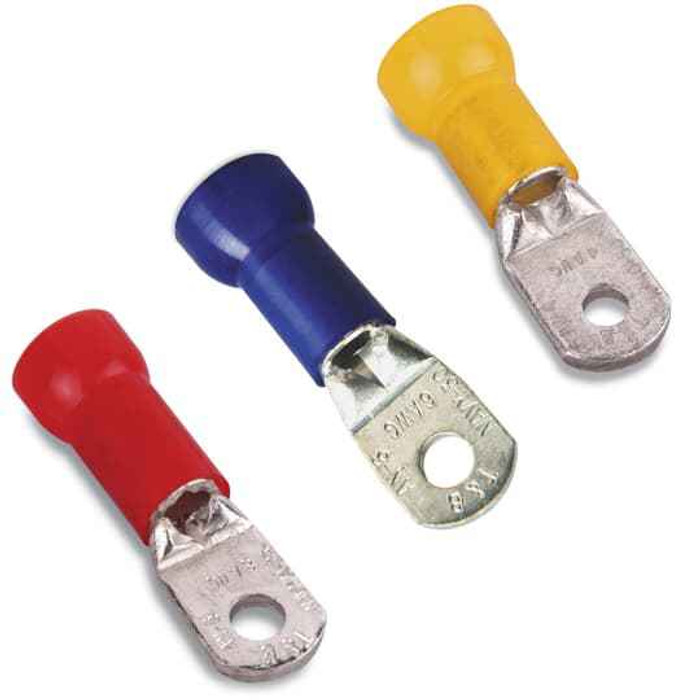

INS NYL RING TERM 2 BOLT 1/2 IN RED
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 2N A
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Copper
Sta-Kon RG9751 – Frequently Asked Questions
1) What stud size does the Sta-Kon RG9751 ring terminal fit?
The RG9751 is a 1/2 inch ring terminal, so it lands on a 1/2 inch stud or bolt. The red insulation and 2 AWG wire range mean it is sized for heavy conductor on large lugs, not for small machine screws.
2) What wire gauge does the Sta-Kon RG9751 terminal crimp?
It is a 2 AWG terminal. Stripping a smaller conductor into it will not give a sound crimp, so step down to a terminal sized for that gauge instead of doubling the wire back on itself.
3) Is the Sta-Kon RG9751 ring terminal UL recognized, and what voltage is it rated for?
It carries UL file E9809 and is rated 600 V, which covers typical commercial and industrial branch circuit and panel work.
4) Why does the RG9751 ring terminal have two bolt holes instead of one?
It is a 2-bolt tongue, 1/2 inch hole size. Two holes on the pad keep the lug from rotating under torque and spread the clamping load, which is what you want on a large 2 AWG feeder landing at a bus or breaker pad. A single-hole lug on the same conductor can spin when the bolt is tightened.
5) What is the barrel of the Sta-Kon RG9751 made of, and can I use it on aluminum conductor?
The terminal is copper, so it is intended for copper conductor. For aluminum or dual-rated runs you need a lug specifically marked AL9CU; copper-only barrels on aluminum wire risk a galvanic and thermal problem at the joint.
6) Is the insulation on the RG9751 heat shrink or plain nylon?
Nylon insulated, in red. Nylon sleeving is tougher and more abrasion resistant than vinyl for panel and raceway work, but it is not a sealed sleeve, so for wet or outdoor terminations you want a heat shrink insulated lug instead.
7) Does the red color on this Sta-Kon lug follow the usual terminal color code?
Not in the small-gauge sense. The common red/blue/yellow code covers 22-16, 16-14 and 12-10 AWG insulated terminals. On heavy lugs like the 2 AWG RG9751, red is the manufacturer's sleeve color for that barrel size, so match the stamped wire size rather than the color when you are specifying.
8) Where is the Sta-Kon RG9751 ring terminal manufactured?
Mexico. That is the stated country of origin, which is what procurement groups usually need for domestic-preference and trade documentation on a bid package.
