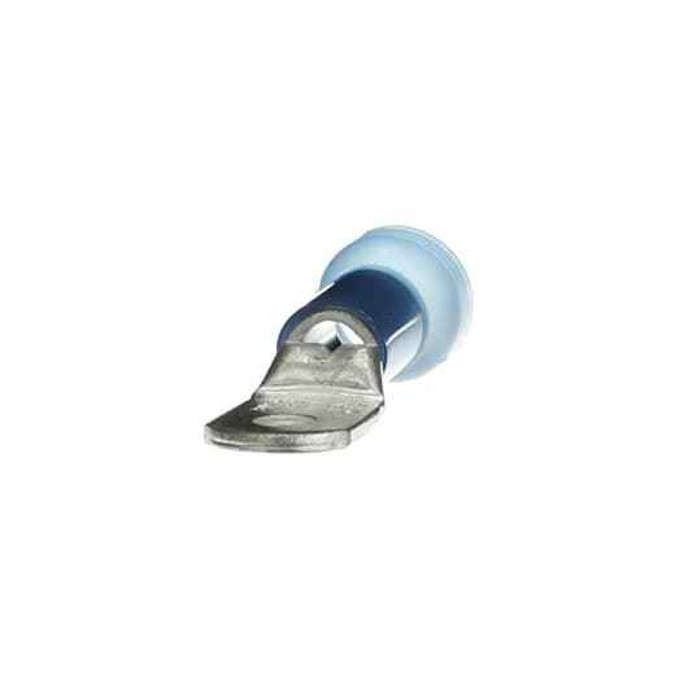

INS NYL RING TERM 6 BOLT No10 BLUE
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 6 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Copper
Sta-Kon RE267 – Frequently Asked Questions
1) What wire size does the Sta-Kon RE267 ring terminal take?
The RE267 is sized for 6 AWG conductor. It is a nylon insulated ring terminal with a copper barrel, so it crimps onto stranded copper 6 AWG. If your conductor is a different gauge, use the matching Sta-Kon size instead. Crimping an undersized or oversized conductor into this barrel gives you a connection that can pull out or run hot.
2) Can I use an insulated nylon ring terminal like this on aluminum conductor?
No. The RE267 barrel is copper and the part is specified for copper conductor only. Aluminum wire needs a terminal listed AL9CU or AL-rated with the appropriate inhibitor compound. Putting aluminum into a copper-only barrel creates a dissimilar metal joint that corrodes and loosens.
3) Is this blue ring terminal rated for 600 volt circuits?
Yes, the RE267 carries a 600 V rating, which covers standard commercial branch circuits, panel and motor terminations, and control wiring. It is also UL recognized under file E9809.
4) Why is this Sta-Kon terminal blue if 6 AWG usually means a different color code?
The blue here is the nylon insulation color Sta-Kon assigns to this part, not the common red/blue/yellow small-gauge scheme. Go by the stated wire size, 6 AWG, and the No. 10 stud, not by color, when you are pulling stock. Mixing these into a bin of small blue 16-14 AWG terminals is an easy way to grab the wrong part.
5) What do I need to crimp a 6 AWG nylon insulated ring terminal properly?
A terminal this size needs a heavy-duty crimper with a 6 AWG nest, not the small hand tool used for 22-10 AWG insulated terminals. Sta-Kon terminals are designed around a matched die, and a crimp made with the wrong nest will not develop full pull-out strength. Strip to the barrel length, bottom the conductor, and crimp once in the correct die.
6) Will the RE267 work as a ground lug on a No. 10 ground screw?
It will land on a No. 10 ground stud or screw with 6 AWG copper ground conductor, which is a common equipment grounding termination. The ring tongue means it stays captive if the screw loosens, unlike a spade. The insulation is not required for a ground and does not interfere with the connection.
7) Is nylon insulation a better choice than vinyl for panel and MRO work?
Nylon, as used on the RE267, holds up better to abrasion and to the heat of tight panel routing than vinyl-sleeved terminals, and it resists splitting when the funnel entry is flared during crimping. Vinyl is the cheaper choice for light, low-abuse indoor work. For a 600 V panel termination getting pulled through a wireway, the nylon body is the one that survives handling.
8) Where is the Sta-Kon RE267 made, and does it matter for a government or institutional spec?
The RE267 is manufactured in Mexico. Institutional and government buyers working to a domestic-preference clause should check that against their contract terms, since country of origin is what those clauses turn on. The part carries UL recognition under file E9809 if your spec calls for a UL reference.
