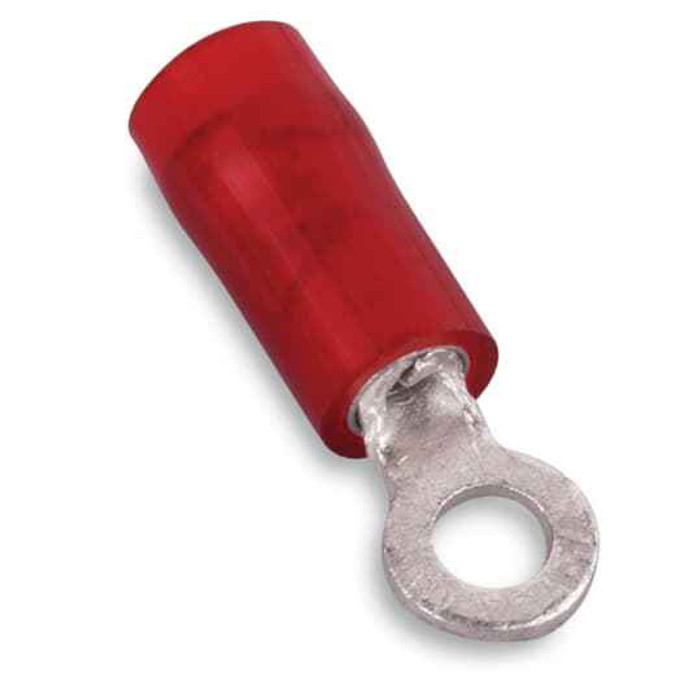

INS NYL RNG TERM 22-16 BOLT 1/2 RED
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 22-16 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Copper
Sta-Kon RA753 – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RA753 ring terminal crimp onto?
The RA753 takes 22 to 16 AWG stranded copper wire. Red insulation is the standard color code for that range, so if your conductor is 14 AWG or larger the RA753 will not grip it, and you need the next size up terminal (blue for 16-14 AWG).
2) What size stud or bolt does the RA753 ring fit?
The ring is sized for a 1/2 inch bolt or stud. That is a large landing lug for a small conductor, which is exactly what you want when you are terminating control or signal wire onto a breaker, bus, or ground bar drilled for 1/2 inch hardware.
3) Is this ring terminal rated for 600 volt control circuits?
Yes, the RA753 carries a 600 V rating and is UL recognized under file E9809, so it is acceptable for 600 volt control panels, motor control, and branch circuit terminations within its wire range.
4) Ring terminal or fork terminal for panel wiring?
A ring terminal like the RA753 is the closed-barrel type: the lug has to come off the stud to remove the wire, so it cannot vibrate loose or slip off a partly backed-out screw. A fork or spade slides out sideways, which is faster for service work but is not accepted on many vibration-prone or safety-critical terminations. For a permanent landing on a 1/2 inch stud, use the ring.
5) Is the RA753 barrel copper, and does that matter for aluminum conductors?
The terminal body is copper with nylon insulation. Copper-only barrels are for copper conductors; do not crimp aluminum wire into it. For aluminum you need a lug marked AL or AL9CU.
6) Do I need a special crimper for the RA753?
Use a crimp tool matched to insulated nylon terminals in the red (22-16 AWG) range. Pliers or an uninsulated-terminal die will crack the nylon sleeve or under-form the barrel, and an under-crimped ring terminal is the usual cause of a hot connection on a 600 V circuit.
7) Why choose nylon insulation over vinyl on a ring terminal?
Nylon takes more abuse than vinyl: better abrasion resistance and higher temperature tolerance, and it will not split when the funnel entry is flared during insertion. In a panel where conductors are bundled and pulled through, nylon insulated terminals like the RA753 hold up better than PVC-sleeved ones.
8) What part number do I order and where is it made?
Order Sta-Kon RA753. It is made in the United States, which matters on Buy American or federally funded projects where country of origin has to be documented.
