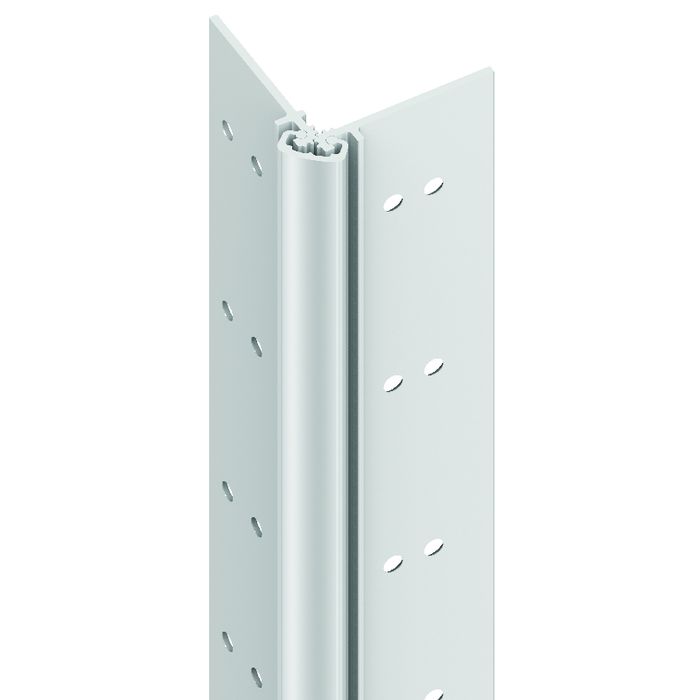

Ives 027XY Full Mortise Wide Door Leaf Hinge

(No reviews yet) Write a Review

Model: IVE-027XY-83-628
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$391.80
$220.92
Adding to cart… The item has been added
This item qualifies for Free Shipping!
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
027XY FULL MORTISE - WIDE DOOR LEAF
  • Wide door leaf for 2" and 2 1/4" doors;
  • Recommended for gasketing and weatherstripping applications;
  • Patented center loaded, interlocking bearing design;
  • Non-handed for custom cut lengths;
  • Flush mounted, no inset;
  • 48" Maximum door width;
  • Beveled or square edge doors;
  • Frame guidance lip is extended further for retrofit applications to cover existing heavy weight architectural hinge preps;
  • For doors weighing up to 450 pounds without reinforcing. 600 pounds with reinforcing;
  • For lead-lined application consult factory for engineering specials.
Specifications:
  • Standard length: 83", 85", 95", 119";
  • Standard mounting hardware: 12-24 x 3/4" Steel self drilling/self tapping phillips head screw.
Options:
  • HT - Hospital tip;
  • EPT - Electric power transfer;
  • TWP CON - Electrical through-wire panel with Allegion Connect.
Optional mounting hardware:
  • SECHM - Security screws - hollow metal door and frame;
  • SECWDHM - Security screws - 1/2 wood, 1/2 hollow metal;
  • SECWDWD - Security screws - wood door and frame;
  • TEKWD - 1/2 Self drill, self tap 1/2 wood;
  • WD - Wood door and frame.

IVES GEARED CONTINUOUS HINGES OVERVIEW Geared continuous hinges are designed to last the life of a building by distributing the weight of a door along the entire length of its frame. The unique design reduces the high amount of stress normally associated at the top of the door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps a door in constant alignment, eliminating the chance of door sag. These characteristics make continuous hinges suitable for high-use and high-traffic doors.The geared continuous hinge has no pin. Instead, these hinges utilize a single gear section for the leaf and a separate gear section for the frame side of the door. The two are held in place by a full length cover channel and rotate on a series of bearings. The design of a continuous hinge eliminates the spacing between the hinges, which helps prevents fingers from being pinched, making it a safer device than traditional hinges. These benefits result in higher efficiency and less maintenance, maximizing the value of a door opening investment.FEATURES AND BENEFITSExceeding industry standards
  • All hinges are certified to ANSI 156.26, Grade 1 and UL10C (90 minute)
  • Limited lifetime warranty
  • Offerings support various applications, including swing clear, wide throw and electrified
Quality and convenience
  • Designed to keep the door in constant alignment and eliminate door sag
  • A cover channel holds together two separate gear sections, providing a visually pleasing solution
  • Eliminates space between the hinges helping to prevent fingers from being pinched
Variety of offering
  • Available in full mortise, full surface, and half surface hinges
  • Available with factory modified cutouts to accommodate most electrical frame-to-door requirements; special templates are required
  • Hinges can be cut to length during installation
  • Unique mounting pattern allows to cut up to 6" from the bottom while still having double row fasteners
DESIGNS & FINISHESDesignsXY Series:
  • Rounded gear design for extended life and smooth operation
  • Patented, center-loaded, interlocking bearing design that helps better the opening and closing of the door over time
  • XY mounting slot adjustability on all full and half surface models to help with installation
  • Frame guidance lip is further extended for retrofit applications to cover existing heavy-weight architectural hinge preps
  • Improved aesthetics with a curved, articulating cover design that eliminates pinch points
HD Series:Features transmission gear design with bearings that are evenly spaced every 3" on center. Amount of bearings varies by size.Hinge typeFor a complete list of model numbers and model number specifications, please refer to the Ives full line catalog.
  • Half surface: hinge is mounted on the door stile face and inside of the frame side jamb; only one hinge side and gear cover are visible when the door is closed. Offering includes the following models: 045XY, 046XY, 053XY and 054XY.
  • Full mortise: hinge is mounted on the side of the door stile and inside of the frame side jamb; only the gear cover is visible with the door is closed. Offering includes the following models: 026XY, 027XY, 040XY, 041XY, 112XY, 112HD, 114XY, 224HD, and 224XY.
  • Full surface, center pivot: hinge is mounted on the door stile face and the frame side jamb face; the entire hinge is visible when the door is closed. The geared section is located where the door stile and frame side jamb meet. Offering includes the following model: 157XY.
  • Full surface, swing clear: hinge is mounted on the door stile face and the frame side jamb face; the entire hinge is visible when the door is closed; the geared section is located over the side jamb. Offering includes the following model: 210XY.
Finishes
  • Available in three BHMA standard finishes:
    • Clear anodized (628)
    • Dark bronze (710)
    • Black anodized (711)
  • Custom finishes are also available; consult factory
AVAILABLE OPTIONSIves geared continuous hinges can be furnished with the following options:
  • Electric power transfer prep (EPT)
  • Through wire panel (TWP)
  • Hospital tip
  • Security fasteners – pin-in-socket
  • Wood fasteners
  • Thread-forming screws (pilot hole is required)
See catalog for availability of options for each model. DOWNLOADS and RESOURCES

Ives Full Line Catalog

Ives XY Series Data Sheet

Ives XY Hinges Through Wire Panel Data Sheet

Allegion Connect Data Sheet

Ives XY Full Surface Hinge Install Instructions

Ives XY Half Surface Hinge Install Instructions

Manufacturer Resources

Product Specs

Category:
Door Hinges and Pivots
Product Group:
Door Hinges and Pivots
Subcategory:
Hinges and Pivots
Product Subgroup:
Continuous Hinges
Product Type:
Continuous Geared Hinges
ANSI/BHMA:
ANSI 156.26
Door Weight:
450
Commercial/Residential:
Commercial
Product Model:
027XY
Door Hand Direction:
Non-Handed
Product Size:
48"

Ives IVE-027XY-83-628 – Frequently Asked Questions

1) What is the Ives 027XY full mortise wide door leaf hinge designed for?
The Ives 027XY is designed for heavy-duty applications on wide doors requiring extra support. The wide leaf design distributes load across more door frame surface area. Commonly used on commercial entrance doors, institutional doors, and oversized residential applications.
2) What door widths and weights work with this hinge?
Verify specific weight ratings with manufacturer specifications. Wide leaf hinges typically handle heavier doors than standard hinges. Door width, thickness, and material affect total weight calculations. Always use manufacturer templates for proper sizing.
3) Is this hinge handed or universal?
Most Ives full mortise hinges are universal and work for left or right hand doors. The hinge orientation determines swing direction when properly installed. Verify handing requirements during door prep and installation.
4) What finishes are available for the 027XY?
Ives hinges typically come in standard architectural finishes including satin chrome, bright brass, oil rubbed bronze, and others. Check current availability for specific finish options. Match finish to existing door hardware for consistent appearance.
5) What grade rating does this hinge carry?
Ives commercial hinges typically meet ANSI grade requirements for frequency and durability testing. Check manufacturer specifications for exact grade certification. Higher grades indicate longer service life under heavy use conditions.
6) Does this hinge meet building code requirements?
Ives hinges generally comply with applicable building codes when properly specified and installed. Fire rated applications require Listed hinges with proper certifications. Verify local code requirements and specifications with authority having jurisdiction.
7) Are replacement parts available for this hinge?
Ives typically offers replacement pins and other serviceable components for their commercial hinges. Contact manufacturer for specific part availability. Some wear components can extend hinge service life when replaced during maintenance.
8) How do I install this full mortise hinge?
Full mortise installation requires routing hinge leaf recesses in both door and frame. Use manufacturer templates for precise layout. Proper mortise depth ensures smooth operation and appearance. Professional installation recommended for critical applications.
9) How many hinges do I need per door?
Standard practice uses 3 hinges for doors up to 90 inches tall. Heavier doors or extreme conditions may require additional hinges. Wide leaf hinges can sometimes reduce total hinge count due to increased load capacity.
10) How do I maintain and adjust this hinge?
Regular lubrication of pin and knuckles maintains smooth operation. Use appropriate lubricant for environmental conditions. Adjustments typically involve door alignment rather than hinge modification. Replace worn pins when play develops.
11) What other Ives hinge models are similar?
Ives offers various full mortise models with different leaf widths and features. Standard width versions handle typical door applications. Compare specifications to find optimal model for specific door requirements and load conditions.
12) What field conditions affect hinge performance?
Moisture, temperature extremes, and corrosive environments affect hinge longevity. Choose appropriate finishes and materials for exposure conditions. Frequent cleaning and lubrication extends service life in harsh environments. Consider stainless steel options for coastal applications.
How fast can I get the Ives IVE-027XY-83-628 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Ives IVE-027XY-83-628 come with a warranty?
Absolutely. The Ives IVE-027XY-83-628 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Ives IVE-027XY-83-628?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Ives IVE-027XY-83-628 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
