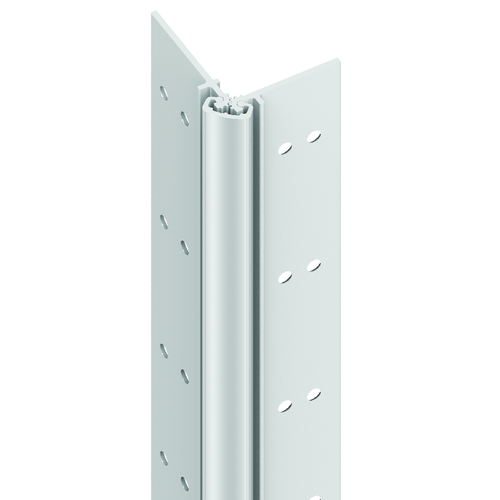

Ives 114XY Full Mortise Continuous Geared Hinge with Door Edge Protector for 48" Doors

(No reviews yet) Write a Review

Model: 114XY-83-US28
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$371.20
$251.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives 114XY Full Mortise Continuous Geared Hinge with Door Edge Protector for 48" Doors

Professional Continuous Hinge Solution with Narrow Frame Leaf Design

The Ives 114XY Full Mortise Continuous Geared Hinge delivers professional-grade performance for doors up to 48" width and 450 pounds without reinforcing (600 pounds with reinforcing). Designed for 1-3/4" doors with 1/16" door inset, this non-handed hinge features patented center-loaded, interlocking bearing design and door edge protector functionality. ANSI 156.26 Grade 1 certified and UL10C rated for 90-minute fire applications, making it ideal for high-traffic commercial installations.

Professional Features & Benefits

  • Door Compatibility: Supports doors up to 48" maximum width with 1-3/4" thickness and 1/16" door inset for precise installation requirements.
  • Heavy-Duty Load Capacity: Rated for doors weighing up to 450 pounds without reinforcing, expandable to 600 pounds with reinforcing for demanding applications.
  • Patented Bearing Design: Center-loaded, interlocking bearing system provides smooth operation and extended service life while maintaining constant door alignment.
  • Door Edge Protection: Integrated door edge protector design recommended for gasketing and weatherstripping applications to enhance seal integrity.
  • Retrofit-Ready Installation: Extended frame guidance lip covers existing heavy-weight architectural hinge preparations for seamless retrofit applications.
  • Professional Certifications: ANSI 156.26 Grade 1 and UL10C 90-minute fire rating ensure compliance with commercial building codes and safety requirements.
  • Flexible Length Options: Available in standard lengths of 83", 85", 95", and 119" with non-handed design for custom cut lengths during installation.
  • Limited Lifetime Warranty: Manufacturer’s limited lifetime warranty provides long-term confidence and protection for commercial installations.

Technical Specifications

  • ANSI/BHMA: ANSI 156.26
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Door Weight: 450
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: 114XY
  • Product Size: 48"
  • Product Subgroup: Continuous Hinges
  • Product Type: Continuous Geared Hinges
  • Subcategory: Hinges and Pivots

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness of 1-3/4", maximum width of 48", and 1/16" door inset requirements.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, utilizing the extended frame guidance lip for retrofit applications.
  3. Prepare door and frame by drilling required holes for standard 12-24 x 3/4" steel self-drilling/self-tapping Phillips head screws or optional mounting hardware as specified.
  4. Install mounting hardware and secure the hinge to door and frame per manufacturer torque specifications, ensuring proper alignment of the patented center-loaded bearing system.
  5. Adjust the continuous hinge for proper alignment and smooth operation throughout the full range of motion, verifying door edge protector positioning for gasketing applications.
  6. Test hinge operation to verify proper function and door alignment. Refer to manufacturer documentation for complete installation details and load capacity verification procedures.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Ives Quality?

Ives continuous geared hinges deliver professional-grade reliability with patented center-loaded, interlocking bearing design rated for doors up to 450 pounds (600 pounds with reinforcing). Limited lifetime warranty and ANSI 156.26 Grade 1 certification with UL10C 90-minute fire rating ensure dependable performance. Engineered for demanding commercial applications where constant door alignment and extended service life are essential.

Product Specs

Product Group:
Door Hinges and Pivots
Subcategory:
Hinges and Pivots
Product Subgroup:
Continuous Hinges
Product Type:
Continuous Geared Hinges
ANSI/BHMA:
ANSI 156.26
Door Weight:
450
Commercial/Residential:
Commercial
Product Model:
114XY
Door Hand Direction:
Non-Handed
Product Size:
48"
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

Ives 114XY-83-US28 – Frequently Asked Questions

1) How wide and how heavy a door can the Ives 114XY hinge carry?
Up to 48 inches of door width and 450 pounds without reinforcing. With reinforcing, the rating goes to 600 pounds. That covers most oversized hollow metal and lead-lined leaves. If your door is wider than 48 inches, this model is not the right one, look to the Ives continuous geared hinge rated for the wider leaf.
2) Do I have to order the Ives 114XY hinge left hand or right hand?
No handing to specify. The 114XY is non-handed, so one part number covers both a left hand and a right hand opening. For a property manager standardizing across a building, that means one line item on the order instead of two, and no wrong-hand returns.
3) Can the Ives 114XY be used on a 90 minute fire rated opening?
Yes. The 114XY carries a UL10C rating for 90 minute fire door applications and is ANSI 156.26 Grade 1 certified. That is the combination an institutional or MRO spec normally calls for on rated corridor and stair doors.
4) Can the Ives 114XY replace butt hinges on an existing door without new frame prep?
That's what the extended frame guidance lip is for. It covers existing heavy weight architectural hinge preparations, so the old butt hinge cutouts in the frame are concealed rather than needing to be filled and refinished. This makes it a practical retrofit on a door that keeps tearing out its butts, since a continuous hinge carries the load along the full height of the leaf instead of at three or four points.
5) What's the difference between the Ives 114XY and a plain continuous geared hinge without the edge protector?
The XY in 114XY is the door edge protector version. The leaf wraps and shields the hinge edge of the door, which Ives recommends where the opening is gasketed or weatherstripped, because the protector keeps the seal working against a clean edge instead of a chewed-up door stile. On a dry interior opening with no gasketing, the protector buys you less. It also has a narrow frame leaf, so it suits frames where a full width leaf would crowd the stop.
6) What screws come with the Ives 114XY hinge and do I need anything else to install it?
Mounting is with 12-24 x 3/4 inch steel self-drilling, self-tapping Phillips head screws as standard, with optional mounting hardware available if your substrate calls for something else. Ives supplies templates for marking the hole locations on both the door and the frame. If you're going for the 600 pound rating, the door and frame reinforcing is separate work you plan for before the hinge goes on.
7) What finishes does the Ives 114XY continuous hinge come in?
Three anodized aluminum finishes: 628 clear anodized, 710 dark bronze anodized, and 711 black anodized. All three are offered in every stock length, so a 95 inch dark bronze (114XY-95-313AN) matches a 83 inch dark bronze on an adjacent opening. Clear anodized is the usual match for aluminum storefront and standard hollow metal; dark bronze and black pair with darker frame paint.
8) Is a continuous geared hinge worth it over butt hinges on a high traffic commercial door?
On an opening that gets abused, yes, and the reason is load distribution. Butt hinges concentrate the door's weight at three or four points, which is where doors start to sag and screws start to pull. The 114XY runs the full height of the leaf on a patented center-loaded, interlocking bearing design, holding alignment so the latch keeps meeting the strike and the closer keeps working. It's a commercial-rated product, ANSI 156.26 Grade 1, and it earns its cost on entrances, stairwells, restrooms and classroom doors that cycle all day. On a low-use back-of-house door, standard butts are still fine.
9) Is the Ives 114XY a full mortise or full surface hinge?
Full mortise. Both leaves mortise into the door edge and the frame, giving a flush look with the gear channel concealed when the door is closed. That means door and frame prep, so on an existing opening where you don't want to mill the door edge, a full surface continuous hinge is the easier retrofit. Note the model number carefully when ordering: Ives uses XY for the edge protector geometry across both mounting styles.
How fast can I get the Ives 114XY-83-US28 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
