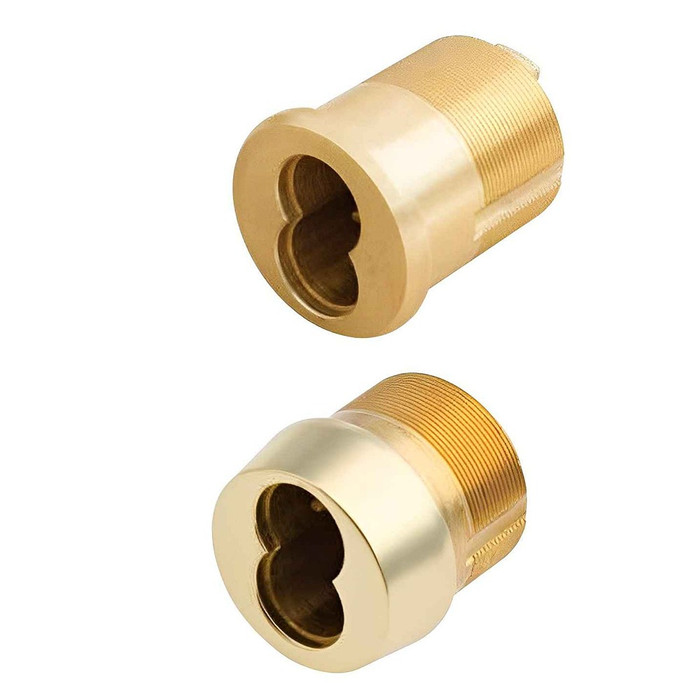

Kaba Ilco R2800 Series - Small Format IC Core Convertible Housing
This line of Interchangeable Core Cylinders is machined from solid brass bar stock. The selection of styles provides flexibility for numerous applications.
Features
- Manage inventory turns with this convertible, interchangeable design
- Available in thin-head (Mortise & Rim) and tapered head (Mortise)
- Several popular applications “in stock” with cam/tailpiece installed. See price list for availability.
- 6 finishes available
- The R2800 Rim Cylinder Conversion Kit - converts the thin head mortise housing into a rim cylinder, allowing flexibility and inventory control for Security Professionals
Thin Head IC Mortise / Rim Cylinder Housing
- Removable Cam / tailpiece
- Convert Mortise to Rim "in the field"
- Interchangeable cams and tailpieces
- 6 and 7 pin available
- Rim Cylinder conversion Kit R2800 sold separately
Tapered Head IC Mortise Housing
- Removable Cam
- Interchangeable cams
- 6 and 7 pin available
Models Lenghts and Descriptions:
Cams:
Finishes:
- Bright Brass
- Satin Brass
- Oil Rubbed Bronze
- Bright Chrome
- Satin Chrome
Product Downloads
Manufacturer Resources
Product Specs
- Product Group:
- Parts and Accessories
- Series:
- R2800 Series
- Product Subgroup:
- Cylinders
- Product Type:
- Cylinder Housing
- Subcategory:
- Cylinders
- Commercial/Residential:
- Commercial
- Parts and Accessories Type:
- Replacement Parts
- Product Attribute:
- Parts and Accessories
- Product Category:
- Parts and Accessories
- Department:
- Door Hardware
Kaba Ilco R28106-1-26D – Frequently Asked Questions
1) Will the Kaba Ilco R2800 housing work with my existing small format interchangeable cores?
The R2800 is a small format IC core housing, so it takes SFIC cores rather than a fixed pinned cylinder. Both 6-pin and 7-pin cores are covered: the R28106, R28206 and R28406 are 6-pin housings, while the R28107, R28207, R28407, R28507 and R28607 accept 6 and 7 pin. Match the housing to the core stack height you already key in your facility, because a 6-pin-only housing will not take a 7-pin core.
2) What length Kaba Ilco R2800 mortise housing do I need for my door?
Mortise housing length is what decides fit, and the R2800 thin head mortise runs 1-1/4 inch (31.7mm) on the R28106, 1-3/8 inch (34.9mm) on the R28107, 1-1/2 inch (38.1mm) on the R28507 and 1-5/8 inch (41.2mm) on the R28607. The tapered head mortise housings are shorter: 15/16 inch (23.8mm) on the R28406 and 1 inch (25.4mm) on the R28407. Measure the cylinder coming out of the lock body, from the shoulder to the back face, and order the matching length.
3) Should I order a thin head or tapered head IC mortise housing?
Thin head and tapered head are two different collars for two different preps. The tapered head R2800 housings are mortise only and come in 15/16 inch and 1 inch lengths. The thin head housings serve mortise or rim duty and cover the longer 1-1/4 through 1-5/8 inch range. Only the thin head mortise housing can be converted to a rim cylinder in the field, so if you want one housing that can go either way, thin head is the one to stock.
4) Can I convert a Kaba Ilco R2800 mortise cylinder housing into a rim cylinder?
Yes, but only the thin head mortise housing, and you need the R2800 Rim Cylinder Conversion Kit, which is sold separately. The conversion is done in the field: the cam or tailpiece is removable and interchangeable, so the same housing serves either a mortise lock or a rim exit device. Tapered head housings are mortise only and do not convert. If you would rather not stock the kit, order the R28206 or R28207 thin head rim housing outright.
5) Which cam do I order with an Ilco R2800 IC mortise housing for a Schlage or Sargent lock?
Cam choice is a separate selection on the R2800 and it has to match the lock you are going into. The options are Standard, Cloverleaf, Schlage L, Sargent/Yale, and Adams Rite. There is also a No Cams option if you already hold a stock of cams and just want the housing. Cams are interchangeable and removable, so a wrong-cam housing is a swap rather than a return.
6) Will an Ilco R2800 cylinder housing work in an Adams Rite storefront lock?
The R2800 offers an Adams Rite cam option, which is the cam a narrow stile aluminum storefront deadlatch takes. Pair it with the mortise housing length that matches your lock prep, from 15/16 inch tapered head up to 1-5/8 inch thin head. Storefront doors typically run short cylinders, so check the length out of the lock body before you pick.
7) Does the Kaba Ilco R2800 come with a core, or do I have to buy that separately?
The R2800 is the housing only, a replacement cylinder shell that accepts a small format interchangeable core. The core, keyed to your system, is a separate item. What you select on the housing is head style and length, pinning capacity (6 pin, or 6 and 7 pin), cam type, and finish.
8) I need a rim cylinder for an exit device. Which Ilco R2800 model do I order?
Order a thin head rim housing: the R28206 at 1-1/4 inch (31.7mm) for 6 pin, or the R28207 at 1-3/8 inch (34.9mm) for 6 or 7 pin. Those ship as rim cylinders and take the removable tailpiece rather than a cam. If you already have thin head mortise housings on the shelf, the R2800 Rim Cylinder Conversion Kit converts one into a rim cylinder instead.
9) What finishes does the Kaba Ilco R2800 IC housing come in, and can I match existing hardware?
Five finishes are stocked on the R2800 housing: Bright Brass, Satin Brass, Oil Rubbed Bronze, Bright Chrome, and Satin Chrome. That covers the common commercial pairings, bright and satin brass against brass trim, bright and satin chrome against 626 or 625 style hardware, and oil rubbed bronze for darker openings. Pick the finish that matches the lock trim it sits in, since the cylinder face is the visible part.
10) I manage a building with mixed lock brands. Can I standardize on one IC cylinder housing?
That is what the R2800 convertible design is built for. One thin head housing family covers both mortise and rim applications, cams swap between Standard, Cloverleaf, Schlage L, Sargent/Yale and Adams Rite, and the same small format core keys the lot. Instead of stocking a separate cylinder per brand and per function, you hold housings by length and finish and change the cam to suit the door. The mortise-to-rim change is done in the field with the R2800 Rim Cylinder Conversion Kit, ordered separately.
11) What is the difference between the R28106 and R28107 Ilco housings?
Both are thin head IC mortise housings; the difference is length and pinning. The R28106 is 1-1/4 inch (31.7mm) and takes a 6 pin core. The R28107 is 1-3/8 inch (34.9mm) and takes 6 or 7 pin. If your system runs 7-pin cores, the R28106 is not the one to order.
12) Is the Ilco R2800 housing solid brass or plated pot metal?
The R2800 interchangeable core cylinder housings are machined from solid brass bar stock, then finished. That is a commercial-duty construction, and this is catalogued as a commercial product rather than residential.
