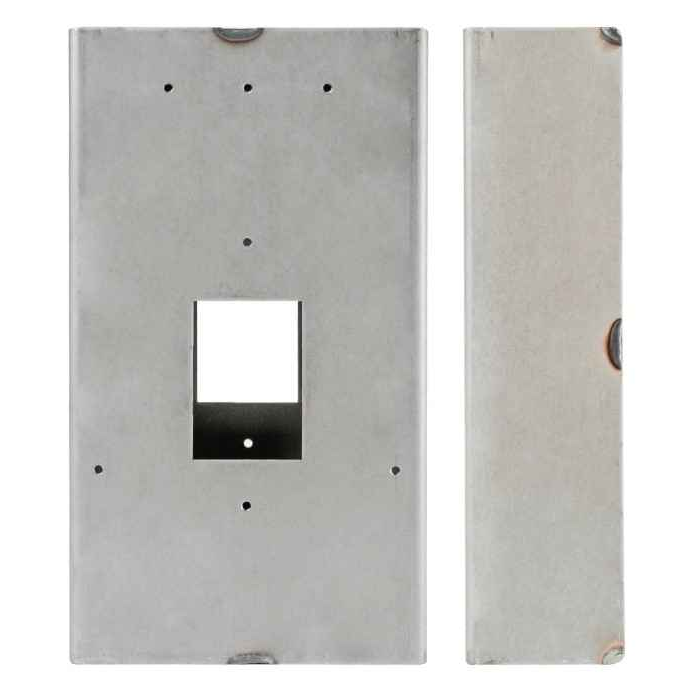

K-BX95552 Weldable Box w/ Switch on Back
Type: Reader
Dimensions:
- 4 1/2”W x 8”H x 2”D
Materials Available:
- K-BX95552- 14 Gauge Steel
- K-BX95552-AL- .125 Gauge Aluminum
Product Downloads:
Manufacturer Resources
Product Specs
- Series:
- K-BX95552
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Gate Boxes
- Product Type:
- Gate Boxes
- Subcategory:
- Gate Boxes
- Commercial/Residential:
- Commercial
- Lock Type:
- Reader
- Product Dimension:
- 4 1/2� W x 8� H x 2� D
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- 14 Gauge Steel
- Department:
- Door Hardware
Keedex K-BX95552-AL – Frequently Asked Questions
1) Should I order the Keedex K-BX95552 in steel or aluminum?
Two substrates are offered: 14 gauge steel and .125 gauge aluminum. Pick steel when you are welding into a steel gate frame or post, since it welds directly to like material and takes paint well. Pick the aluminum version when the gate or frame is aluminum, so you are not trying to join dissimilar metals and you avoid a rust point on an exposed exterior gate.
2) Is the Keedex K-BX95552 a weld-in box or does it surface mount with screws?
It is a weldable box. The K-BX95552 is meant to be welded into a gate frame, post, or metal fence section rather than screwed to a surface, which is why it ships in a weldable substrate (14 gauge steel or .125 aluminum) and comes with no mounting hardware. Plan for a welder on site and for finish work, since the box is supplied as raw weldable material, not a finished trim plate.
3) What does "switch on back" mean on the Keedex K-BX95552 reader box?
The K-BX95552 is configured with the switch on the back of the box, meaning the request-to-exit or release switch sits on the rear face rather than in the front reader opening. That keeps the front face clear for the reader or keypad, and it puts the switch on the protected side of the gate frame. Confirm which side of the opening the back of the box will face before you weld it in, because the switch location is not field reversible.
4) Is the Keedex K-BX95552 suitable for a commercial gate access control job?
Yes, it is a commercial grade item. The K-BX95552 is a weld-in gate box for access control readers, the kind of part used on perimeter gates, parking entries, and fenced service yards where a reader has to be housed in the gate frame itself rather than on a wall or pedestal.
