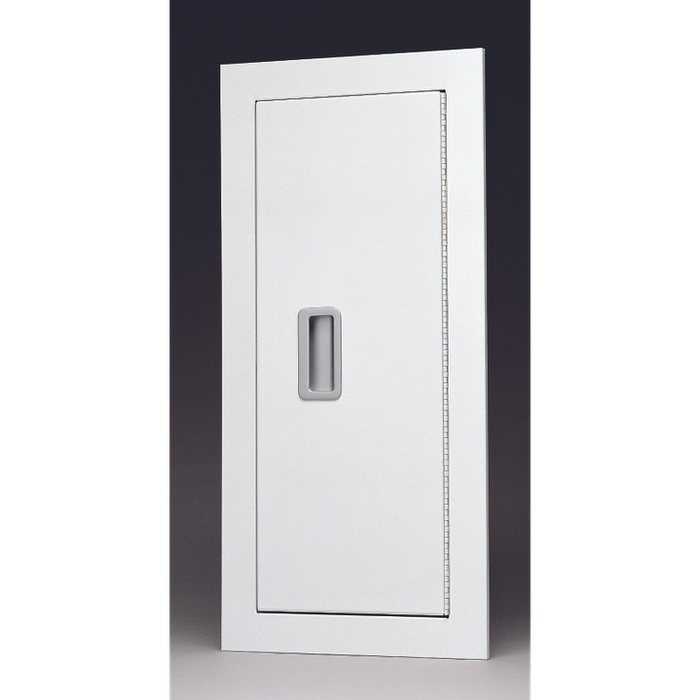

Larsens 24096R Fire Extinguisher Cabinet - Architectural Series, ADA Compliant, 10 lb Capacity, Steel Door, Fire Rated

Larsens 24096R Fire Extinguisher Cabinet - Architectural Series, ADA Compliant, 10 lb Capacity, Steel Door, Fire Rated

(No reviews yet) Write a Review

Model: FS24096RFG
From the Architectural Collection
$316.90
Selected Door Style is
Selected Lock is
Selected Handle Style is
Selected Signs is
Selected Decals is
Selected Fire Handles is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$316.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pictures of Doors for Reference only. You can choose your door style when viewing Product

Larsens Architectural Series 24096R-10LB Capacity - Fire Rated - Steel Door

These Architectural Series Fire Extinguisher Cabinets feature a nominal inside box dimension of 24 inches (60.9 cm) height, 9.5 inches (24.1 cm) width and 6 inches (15.2 cm) depth.

BOX SPECIFICATION: All recessed and semi-recessed cabinets and surface-mounted steel cabinets have a heavy gauge, white baked enamel box. Surface-mounted cabinets with aluminum door and trim have a box constructed entirely of clear or color anodized aluminum. Surface-mounted cabinets with stainless steel door and trim have a box constructed entirely of 304 stainless steel with #4 finish.

TRIM AND DOOR SPECIFICATION: Steel trims and doors are one piece, constructed of cold-rolled steel with a standard finish of white baked acrylic enamel, which can be used as either a finish or prime coat. Aluminum trims are constructed of extruded or fabricated aluminum and all corners are mitered. Aluminum is the recommended material for applications in salt air and other corrosion prone environments. Clear satin anodized finish is standard for all trims and doors, and optional color anodized finishes are available. To specify aluminum trim and door, use the prefix “AL” before the cabinet model number. Stainless steel trims and doors are one piece, constructed of #4 finish, 304 stainless steel. To specify stainless steel trim and door, use the prefix “SS” before the cabinet model number. All steel and stainless steel doors have a tubular, hollow-metal design. Samples of door and trim materials are pictured.


ALL OF THESE DOOR STYLES ARE AVAILABLE WITH EXCLUSIVE LARSEN-LOC® OPTION. The Larsen-Loc® provides access to a locked cabinet, without requiring the breaking of glass. During an emergency, it permits the cabinet door to be opened simply by pulling sharply on the handle. Factory applied decal reads: “IN CASE OF FIRE ONLY – PULL FIRMLY ON HANDLE”. By specifying the Larsen-Loc®, access to a locked cabinet is totally independent of the desired door style and glazing. All door styles can be combined with the Larsen-Loc®, including a solid metal door. The standard Larsen-Loc® on a Solid Door would be appropriate for gymnasiums or any locations where emergency access is required but where any kind of glazing or glazing opening may not be suitable. The Solid Door with Larsen-Loc® also can be specified as an Institutional Door (emergency access only with a key) by deleting the pull handle and decal


  • Inside box depth is 43 ⁄4" when supplied with aluminum door and trim. The AL2409-5R and AL2409-R7 have 11 ⁄4" square trims.
  • Trimless cabinets must be installed before drywall because their plaster stops must be behind the drywall. Trimless are not recommended for block wall installation.
  • Deduct 3 ⁄4" from H x W dimensions for cabinets with aluminum door and trim. This does not apply to “FS” fire-rated option.
  • To comply with ADA wall projection guidelines, this cabinet must be mounted with its leading edge at or below 27" from the finished floor

ALL OF THESE DOOR STYLES ARE AVAILABLE WITH EXCLUSIVE LARSEN-LOC® OPTION. The Larsen-Loc® provides access to a locked cabinet, without requiring the breaking of glass. During an emergency, it permits the cabinet door to be opened simply by pulling sharply on the handle. Factory applied decal reads: “IN CASE OF FIRE ONLY – PULL FIRMLY ON HANDLE”. By specifying the Larsen-Loc®, access to a locked cabinet is totally independent of the desired door style and glazing. All door styles can be combined with the Larsen-Loc®, including a solid metal door. The standard Larsen-Loc® on a Solid Door would be appropriate for gymnasiums or any locations where emergency access is required but where any kind of glazing or glazing opening may not be suitable. The Solid Door with Larsen-Loc® also can be specified as an Institutional Door (emergency access only with a key) by deleting the pull handle and decal


Additional Options : Decal Examples

Die-cut letters are state-of-the-art for precise and attractive cabinet identification and have replaced silk screen letters as the industry standard. They are available in standard colors of red, black, or white and the standard designs of vertical, horizontal, or type A. A selection of the more popular styles is pictured below. Custom lettering, special colors, and pictorial graphics also are available, if specified.



VIGILANTE ALARM

Larsen’s exclusive Vigilante Alarm provides additional protection for a cabinet’s life safety contents. The Vigilante can reduce theft losses, help to prolong extinguisher life, and safeguard fire department valves, fire hose, and other equipment. It is constructed of high impact plastic, is plunger activated and includes a heavy-duty 9 volt battery as standard equipment. The on/off jack provides for convenient servicing of the cabinet’s contents by authorized personnel.


Manufacturer Resources

Larsens Catalog

Product Specs

Cabinet Door Frame Material:
Steel
Cabinet Inside Box Height:
24"
Cabinet Inside Box Width:
9.5"
Cabinet Inside Box Depth:
6"
Outside Trim Flange Height:
27.5"
Rough Opening Height:
26.125"
Rough Opening Width:
11.625"
Outside Trim Flange Width:
13"
ADA:
Yes
Cabinet Style:
Architectural
Door Material:
Steel
Extinguisher Capacity:
10LB
Collection:
Architectural
Product Group:
Fire Extinguisher Cabinet
Product Subgroup:
Fire Extinguisher Cabinet
Fire Rated Y/N:
Yes
Product Type:
Fire Extinguisher Cabinet
Department:
Safety

Larsens FS24096RFG – Frequently Asked Questions

1) Which wall depth do I order for a Larsens fire extinguisher cabinet, and how do I know which one fits my wall?
Wall depth is a required choice on the 24096R and it has to match the actual cavity you are recessing into. The options are 2-7/8, 3-7/8, 4, 4-7/8, 5-7/8 and 7-1/8 inches. Measure from the face of the finished wall to whatever is behind it, then pick the depth that lets the trim sit flat against the wall face. Pick too deep and the cabinet bottoms out on the back-up construction or the far side of the stud bay; pick too shallow and the trim stands proud. Note the box interior stays 6 inches deep regardless of which wall depth you order.
2) How high do I mount a Larsens Architectural Series extinguisher cabinet to stay ADA compliant?
Mount it with the leading edge at or below 27 inches from the finished floor. That is the ADA wall projection guideline Larsens calls out for this cabinet, and it is the number an inspector checks in a corridor. Because the trim flange is 27-1/2 inches tall, that mounting rule sets your top-of-cabinet height too, so lay it out from the bottom edge up rather than from the ceiling down.
3) Which Larsens door style should I pick for a gym, a school corridor, or a hospital?
Five door styles are offered on the 24096R: full glass, horizontal duo, vertical duo, solid, and institutional. Glass and duo doors let staff and the fire marshal see the extinguisher and its gauge without opening anything, which is what most corridors and offices want. A solid steel door is the call for gymnasiums and any high-impact area where glazing is a liability, and Larsens pairs it with the Larsen-Loc so the door still opens in an emergency by pulling sharply on the handle. The institutional door is the solid door with the pull handle and decal deleted, so access is by key only. Choose that one where you need to stop tampering, and accept that responders need a key.
4) If I order the Larsens cabinet with a lock, can the fire department still get in without breaking the glass?
Yes, if you specify the Larsen-Loc. It lets a locked cabinet be opened by pulling sharply on the handle, no glass breakage, and it ships with a factory decal reading IN CASE OF FIRE ONLY - PULL FIRMLY ON HANDLE. It works independently of door style and glazing, so you can combine it with any of the five doors including the solid metal one. The lock itself is an order choice on the 24096R, included or not included, so if you do not need to control access you can skip it entirely.
5) Is the Larsens 24096R cabinet fire rated, and what is the box and door made of?
The 24096R is a fire rated cabinet. The box is heavy gauge steel with a white baked enamel finish, and the door and trim are one piece cold-rolled steel with a tubular hollow-metal design, finished in white baked acrylic enamel. That enamel works as a final finish or as a prime coat, so if your spec calls for the cabinet to match a corridor color, your painter can top-coat it on site without stripping anything.
6) What glazing options are there for a Larsens fire extinguisher cabinet door, and which one do I need?
Three: standard acrylic, which comes included, tempered glass, or laminated safety glass. Acrylic handles most commercial corridors and will not shatter. Tempered is the usual upgrade where you want a harder, more scratch-resistant face. Laminated holds together when broken, which is why it gets specified in schools, healthcare, and anywhere the glazing schedule calls for safety glazing. If the opening is in a spot where glazing is a problem at all, order the solid steel door instead and there is no glazing to spec.
7) Can I stop people stealing the extinguisher out of the cabinet?
Larsens offers the Vigilante Alarm for exactly that. It is plunger activated, made of high impact plastic, and includes a heavy-duty 9 volt battery as standard. Open the door and it sounds. There is an on/off jack so your service tech can silence it during annual inspection and recharging without pulling the battery. It comes in a standard version and a surface mounted version. Property managers in high-traffic or public buildings pair it with the lock option, since the Larsen-Loc still gives emergency access without a key.
8) What is the difference between a recessed handle and a non-recessed handle on a fire extinguisher cabinet?
Both are offered on the 24096R. A recessed handle sits back within the door face so nothing sticks out into the corridor, which is what you want on a tight egress path or where carts and gurneys run the walls. A non-recessed handle projects and is easier to grab in a hurry, particularly with gloves on. Since this cabinet is already governed by the 27 inch leading-edge mounting rule for ADA wall projection, the recessed handle is the safer pick in circulation spaces.
9) I am standardizing extinguisher cabinets across a whole building. What do I have to specify on each Larsens 24096R so they all match?
Six decisions drive the part. Door style (full glass, horizontal duo, vertical duo, solid, or institutional), handle recessed or not, lock included or not, and wall depth from 2-7/8 through 7-1/8 inches. Then glazing, acrylic included with tempered or laminated as upgrades, and identification, meaning die-cut lettering and any wall sign. Wall depth is the one that varies opening to opening in a real building, so survey your wall cavities first and keep the other five constant across the order. The Vigilante Alarm is optional and can be added on the openings that need it without breaking the visual match.
10) Can I get lettering on the Larsens cabinet door so people can find the extinguisher?
Yes. Die-cut letters are the option, in red, black or white, laid out vertical, horizontal, or Type A, and there is an international extinguisher symbol as well. Die-cut has replaced silk screen as the industry standard for cabinet identification, and custom lettering, special colors and pictorial graphics can be specified. Separately from the door lettering there are wall signs, including flat and projecting styles, which is what you want when the cabinet sits in a long corridor and has to be seen from down the hall rather than head on.
