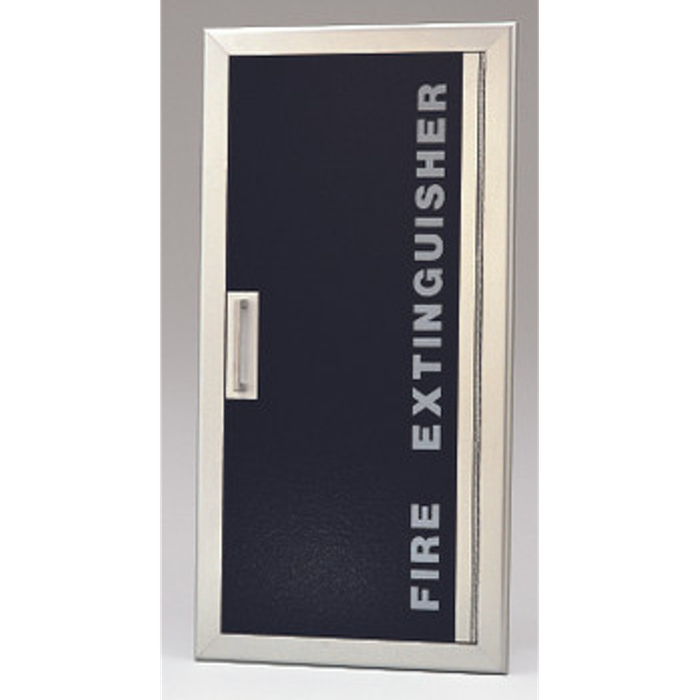

Larsens 24096R Fire Extinguisher Cabinet - Gemini Series, ADA Compliant, 10 lb Capacity, Acrylic Door, Non-Fire Rated

Larsens 24096R Fire Extinguisher Cabinet - Gemini Series, ADA Compliant, 10 lb Capacity, Acrylic Door, Non-Fire Rated

(No reviews yet) Write a Review

Model: ALG24096RB
From the Gemini Collection
$228.50
Selected Door Color is
Selected Lock is
Selected Handle Style is
Selected Signs is
Selected Decals is
Selected Fire Handles is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$228.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pictures of Doors for Reference only. You can choose your door style when viewing Product

Larsens Gemini Series 24096R-10LB Capacity -Non Fire Rated - Aluminum Frameless Acrylic Door Cabinets

These Gemini Series Cabinets feature a nominal inside box dimension of 24 inches (60.9 cm) height, 9.5 inches (24.1 cm) width and 6 inches (15.2 cm) depth.
GEMINI SERIES GENERAL DESCRIPTION: Larsen’s Gemini Series is an aesthetically designed cabinet line which is identified by an extensive selection of frameless acrylic doors. Gemini cabinets are identical to the Architectural Series, except these units have a frameless door of smooth or textured acrylic in lieu of the conventional hollow-metal door frame. The dimensions of the Gemini Series cabinets are outlined in the table at right. Please refer to page 7 for the appropriate wall installation and trim projection information. The Gemini Series is specified by using the prefix “G” as part of the model number.
DOOR SPECIFICATION: The standard door material is smooth or textured acrylic. If lettering is specified, the design is placed on the back of the door to prevent damage. A selection of the more popular Gemini door styles is pictured below. The complete range of options, however, is outlined in the chart below. The Larsen-Loc® is available with all door styles. All doors have a satin finish pull handle with a self-adjusting roller catch and a continuous piano hinge constructed of material which matches the trim.
  • Inside box depth is 43 ⁄4" when supplied with aluminum door and trim. The AL G2409-5R and AL G2409-R7 have 11 ⁄4" square trims.
  • Trimless cabinets must be installed before drywall because their plaster stops must be behind the drywall. Trimless are not recommended for block wall installation.
  • Deduct 3 ⁄4" from H x W dimensions for cabinets with aluminum trim. This does not apply to “FS” fire-rated option.
  • To comply with ADA wall projection guidelines, this cabinet must be mounted with its leading edge at or below 27" from the finished floor.
  • To comply with ADA wall projection guidelines, this cabinet must be specified with Larsen’s recessed handle

ALL OF THESE DOOR STYLES ARE AVAILABLE WITH EXCLUSIVE LARSEN-LOC® OPTION. The Larsen-Loc® provides access to a locked cabinet, without requiring the breaking of glass. During an emergency, it permits the cabinet door to be opened simply by pulling sharply on the handle. Factory applied decal reads: “IN CASE OF FIRE ONLY – PULL FIRMLY ON HANDLE”. By specifying the Larsen-Loc®, access to a locked cabinet is totally independent of the desired door style and glazing. All door styles can be combined with the Larsen-Loc®, including a solid metal door. The standard Larsen-Loc® on a Solid Door would be appropriate for gymnasiums or any locations where emergency access is required but where any kind of glazing or glazing opening may not be suitable. The Solid Door with Larsen-Loc® also can be specified as an Institutional Door (emergency access only with a key) by deleting the pull handle and decal


Additional Options:

Decal Examples

Die-cut letters are state-of-the-art for precise and attractive cabinet identification and have replaced silk screen letters as the industry standard. They are available in standard colors of red, black, or white and the standard designs of vertical, horizontal, or type A. A selection of the more popular styles is pictured below. Custom lettering, special colors, and pictorial graphics also are available, if specified.


VIGILANTE ALARM

Larsen’s exclusive Vigilante Alarm provides additional protection for a cabinet’s life safety contents. The Vigilante can reduce theft losses, help to prolong extinguisher life, and safeguard fire department valves, fire hose, and other equipment. It is constructed of high impact plastic, is plunger activated and includes a heavy-duty 9 volt battery as standard equipment. The on/off jack provides for convenient servicing of the cabinet’s contents by authorized personnel.


Manufacturer Resources

Larsens Catalog

Product Specs

Door Material:
Aluminum
Extinguisher Capacity:
10LB
Surface Mounted:
No
Cabinet Inside Box Height:
24"
Cabinet Inside Box Width:
9.5"
Cabinet Inside Box Depth:
6"
ADA:
Yes
Cabinet Style:
Gemini
Collection:
Gemini
Product Group:
Fire Extinguisher Cabinet
Product Subgroup:
Fire Extinguisher Cabinet
Fire Rated Y/N:
No
Product Type:
Fire Extinguisher Cabinet
Department:
Safety

Larsens ALG24096RB – Frequently Asked Questions

1) Can I lock a Larsens Gemini extinguisher cabinet and still get it open in a fire?
Yes, and that is what the Larsen-Loc is for. A lock is an option on the 24096R, and the Larsen-Loc lets a locked cabinet be opened by pulling sharply on the handle, no glass to break. It ships with a decal reading "IN CASE OF FIRE ONLY - PULL FIRMLY ON HANDLE". It works with any door style, so you are not trading away the look to get emergency access. For schools and gyms where you want no glazing at all, the same arrangement is offered on a solid metal door, and deleting the pull and decal makes it an institutional door with key only access.
2) What do I have to specify on a Gemini 24096R to actually make it ADA compliant?
Two things, and both are on the buyer. Mount the cabinet with its leading edge at or below 27 inches from the finished floor, and order it with Larsen's recessed handle rather than the standard projecting pull. The recessed option is a choice you make when ordering, so a cabinet ordered with a non-recessed handle will not meet the wall projection guideline no matter how it is mounted.
3) Is the Larsens Gemini 24096R fire rated? I need a cabinet for a 1 hour rated corridor wall.
The Gemini 24096R is a non fire rated cabinet. If your extinguisher cabinet is being recessed into a rated wall assembly, this is not the unit for that opening; you need a fire rated cabinet so the wall's rating is not compromised by the cut-out. For a non rated partition, the 24096R is fine.
4) How deep does the wall have to be to recess a Larsens Gemini fire extinguisher cabinet?
This is a recessed cabinet, not a surface mount unit, so the wall cavity has to take the box. Wall depth is a choice you make when ordering: 3, 4, 5, 5-1/4 or 6-1/4 inches. Measure your actual stud cavity plus finish and pick the depth that matches, because the wall depth and the trim are what determine how the cabinet sits in the wall.
5) What is a Gemini series cabinet versus Larsens Architectural series?
Gemini cabinets are identical to the Architectural Series except for the door: Gemini uses a frameless smooth or textured acrylic door instead of the conventional hollow metal door frame. Same box, different face. Pick Gemini when the architect wants the frameless acrylic look; pick Architectural when a metal framed door is specified. Gemini models carry a "G" prefix in the model number.
6) What door colors does the Larsens Gemini 24096R come in, and can I still see the extinguisher?
Four door choices: clear, red, black, or white acrylic. Clear is what you want when the AHJ or the facility standard calls for the extinguisher to be visible without opening the door. The solid colors read as a clean panel on the wall, which is why they get specified in lobbies and finished corridors, but they rely on lettering or a sign to identify what is behind them.
7) How do I stop people walking off with the extinguisher out of an open cabinet?
Specify the Vigilante Alarm. It is a plunger activated, high impact plastic alarm that sounds when the cabinet is opened, and it comes with a heavy duty 9 volt battery. An on/off jack lets your service tech silence it while doing the annual inspection, so it does not fight your extinguisher maintenance schedule. It is offered standard or surface mounted, and Larsens also uses it on fire department valve and hose cabinets, which is the usual reason a property manager buys it building wide.
8) Is the Larsens Gemini 24096R door made of glass?
No glass. The 24096R door is frameless acrylic, smooth or textured, which is why it gets specified in schools, gyms and corridors where a broken pane is a real liability. The trim is aluminum. Every door has a satin finish pull handle, a self adjusting roller catch, and a continuous piano hinge made of material matching the trim.
