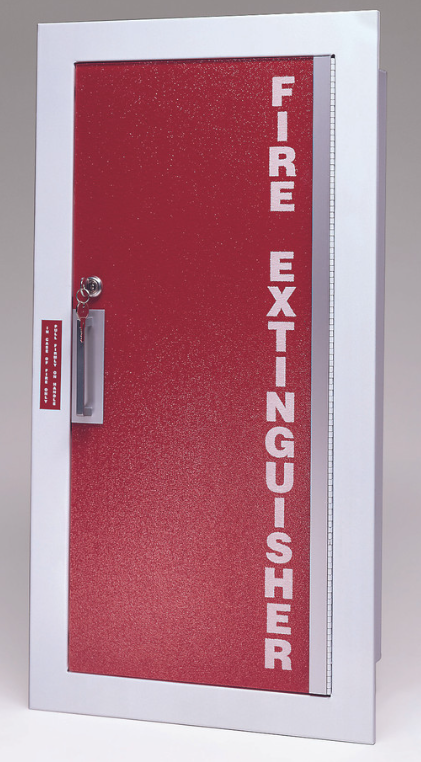

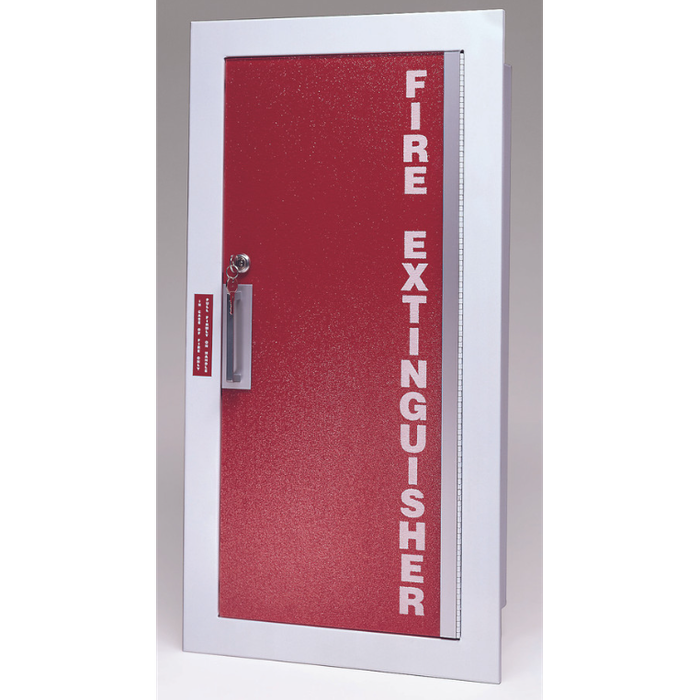

Larsens 24096R Fire Extinguisher Cabinet - Gemini Series, ADA Compliant, 10 lb Capacity, Steel Frame, Acrylic Door, Fire Rated

Larsens 24096R Fire Extinguisher Cabinet - Gemini Series, ADA Compliant, 10 lb Capacity, Steel Frame, Acrylic Door, Fire Rated

(No reviews yet) Write a Review

Model: LARS-GEMINI-24096R-10LB-FS-S-4-25-RE-NO-NO
From the Gemini Collection
$393.59
Selected Door Color is
Selected Lock is
Selected Handle Style is
Selected Signs is
Selected Decals is
Selected Fire Handles is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$393.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pictures of Doors for Reference only. You can choose your door style when viewing Product

Larsens Gemini Series 24096R-10LB Capacity -Fire Rated - Steel Frameless Acrylic Door Cabinets

These Gemini Series Cabinets feature a nominal inside box dimension of 24 inches (60.9 cm) height, 9.5 inches (24.1 cm) width and 6 inches (15.2 cm) depth.
GEMINI SERIES GENERAL DESCRIPTION: Larsen’s Gemini Series is an aesthetically designed cabinet line which is identified by an extensive selection of frameless acrylic doors. Gemini cabinets are identical to the Architectural Series, except these units have a frameless door of smooth or textured acrylic in lieu of the conventional hollow-metal door frame. The dimensions of the Gemini Series cabinets are outlined in the table at right. Please refer to page 7 for the appropriate wall installation and trim projection information. The Gemini Series is specified by using the prefix “G” as part of the model number.
DOOR SPECIFICATION: The standard door material is smooth or textured acrylic. If lettering is specified, the design is placed on the back of the door to prevent damage. A selection of the more popular Gemini door styles is pictured below. The complete range of options, however, is outlined in the chart below. The Larsen-Loc® is available with all door styles. All doors have a satin finish pull handle with a self-adjusting roller catch and a continuous piano hinge constructed of material which matches the trim.
  • Inside box depth is 43 ⁄4" when supplied with aluminum door and trim. The AL G2409-5R and AL G2409-R7 have 11 ⁄4" square trims.
  • Trimless cabinets must be installed before drywall because their plaster stops must be behind the drywall. Trimless are not recommended for block wall installation.
  • Deduct 3 ⁄4" from H x W dimensions for cabinets with aluminum trim. This does not apply to “FS” fire-rated option.
  • To comply with ADA wall projection guidelines, this cabinet must be mounted with its leading edge at or below 27" from the finished floor.
  • To comply with ADA wall projection guidelines, this cabinet must be specified with Larsen’s recessed handle

ALL OF THESE DOOR STYLES ARE AVAILABLE WITH EXCLUSIVE LARSEN-LOC® OPTION. The Larsen-Loc® provides access to a locked cabinet, without requiring the breaking of glass. During an emergency, it permits the cabinet door to be opened simply by pulling sharply on the handle. Factory applied decal reads: “IN CASE OF FIRE ONLY – PULL FIRMLY ON HANDLE”. By specifying the Larsen-Loc®, access to a locked cabinet is totally independent of the desired door style and glazing. All door styles can be combined with the Larsen-Loc®, including a solid metal door. The standard Larsen-Loc® on a Solid Door would be appropriate for gymnasiums or any locations where emergency access is required but where any kind of glazing or glazing opening may not be suitable. The Solid Door with Larsen-Loc® also can be specified as an Institutional Door (emergency access only with a key) by deleting the pull handle and decal


Additional Options:

Decal Examples

Die-cut letters are state-of-the-art for precise and attractive cabinet identification and have replaced silk screen letters as the industry standard. They are available in standard colors of red, black, or white and the standard designs of vertical, horizontal, or type A. A selection of the more popular styles is pictured below. Custom lettering, special colors, and pictorial graphics also are available, if specified.


VIGILANTE ALARM

Larsen’s exclusive Vigilante Alarm provides additional protection for a cabinet’s life safety contents. The Vigilante can reduce theft losses, help to prolong extinguisher life, and safeguard fire department valves, fire hose, and other equipment. It is constructed of high impact plastic, is plunger activated and includes a heavy-duty 9 volt battery as standard equipment. The on/off jack provides for convenient servicing of the cabinet’s contents by authorized personnel.


Manufacturer Resources

Larsens Catalog

Product Specs

Door Material:
Steel
Extinguisher Capacity:
10LB
Surface Mounted:
No
Cabinet Inside Box Height:
24"
Cabinet Inside Box Width:
9.5"
Cabinet Inside Box Depth:
6"
Outside Trim Flange Height:
27.5"
Outside Trim Flange Width:
13"
Rough Opening Height:
26.125"
ADA:
Yes
Cabinet Style:
Gemini
Collection:
Gemini
Product Group:
Fire Extinguisher Cabinet
Product Subgroup:
Fire Extinguisher Cabinet
Fire Rated Y/N:
Yes
Product Type:
Fire Extinguisher Cabinet
Department:
Safety

Larsens LARS-GEMINI-24096R-10LB-FS-S-4-25-RE-NO-NO – Frequently Asked Questions

1) What size rough opening do I need to frame for a Larsens 24096R fire extinguisher cabinet?
Frame for a 26.125 inch rough opening height. The cabinet's inside box is 24 inches high by 9.5 inches wide by 6 inches deep, and the outside trim flange covers 27.5 inches high by 13 inches wide once it is in. Because the 24096R is a recessed cabinet, not surface mounted, the wall has to be opened up and deep enough to take the box before the trim lands.
2) Can you lock a Larsens fire extinguisher cabinet and still get the extinguisher out in an emergency?
That is what the Larsen-Loc option is for. A locked Gemini cabinet with the Larsen-Loc opens by pulling sharply on the handle, no glass to break, and it ships with a decal reading IN CASE OF FIRE ONLY - PULL FIRMLY ON HANDLE. It works with every door style, including a solid metal door, which is the usual answer for gymnasiums and anywhere glazing is a liability. Order the lock as Included or Not Included depending on whether the cabinet is in a public corridor or a controlled space.
3) What do I have to specify to keep the Larsens Gemini cabinet ADA compliant?
Two things, and both are order decisions. Specify the recessed handle option, and mount the cabinet so its leading edge sits at or below 27 inches from the finished floor. The Gemini offers handle style as Recessed or Not Recessed; picking Not Recessed on a wall where the cabinet projects into a circulation path defeats the ADA wall projection allowance. The 24096R is an ADA cabinet when ordered and mounted that way.
4) How do I pick the right trim and wall depth on a Larsens Gemini recessed cabinet?
Wall depth is set by your actual wall construction, and trim width by how much flange you want covering the opening. The Gemini 24096R offers wall depths of 3-3/8, 4, 4-7/8, 5-7/8 and 7-1/8 inches, and trim widths of 5/16, 1.5, 2.5, 3.5, 4 and 4.5 inches. Measure finished wall thickness first, then choose the trim: the 5/16 inch is effectively trimless, and trimless cabinets have to go in before the drywall because the plaster stops sit behind it. Trimless is not recommended in block wall.
5) What is the difference between the Larsens Gemini Series and the Architectural Series cabinets?
The box is the same. Gemini cabinets are identical to the Architectural Series except the door: Gemini uses a frameless acrylic door, smooth or textured, instead of the conventional hollow-metal door frame. Pick Gemini when the architect wants the clean frameless look in a finished lobby or corridor; pick the framed metal door where the opening takes abuse. Gemini models are identified by a G prefix in the model number.
6) How do I get the cabinet marked FIRE EXTINGUISHER for an inspection?
Die-cut lettering is the standard way, and it is an order option on the Gemini cabinet. Choose vertical, horizontal, or Type A layout in red, white, or black, or the International Extinguisher Symbol in red or black. Die-cut has replaced silk screen as the industry standard, and custom lettering, special colors, and pictorial graphics can be specified. Separate wall signs and decals are also selectable if your AHJ wants a projecting or flag sign in addition to the cabinet marking.
7) Is there a way to stop people taking the extinguisher out of a Larsens cabinet?
The Vigilante Alarm is Larsens' answer for that. It is plunger activated, built of high impact plastic, and includes a heavy-duty 9 volt battery as standard. It sounds when the cabinet is opened, which cuts theft and nuisance discharge and protects hose and fire department valves in the same way. An on/off jack lets authorized staff service the contents without setting it off. It can be added standard or surface mounted.
8) Can I get a Larsens cabinet that opens only with a key, with no handle for the public?
Yes. Specify the solid door with Larsen-Loc as an Institutional Door, which deletes the pull handle and the decal so emergency access is by key only. That is the configuration for detention, behavioral health, and anywhere a pull handle or glazing is a ligature or vandalism concern.
9) What is the door and cabinet made of on the Larsens 24096R fire rated cabinet?
Steel on the fire rated FS build, with the frameless acrylic door face that defines the Gemini line. Every Gemini door gets a satin finish pull handle with a self-adjusting roller catch and a continuous piano hinge made of material matching the trim. The roller catch matters in service: it takes up wear so the door keeps closing flush after years of monthly inspections.
10) What door colors does the Larsens Gemini 24096R come in?
Four: Black, Red, White, and Clear Door. Clear is what you want when the extinguisher needs to be visible for inspection without opening the cabinet; the solid colors are the choice when you are matching a finish scheme across a building. If lettering is specified, Larsens places the design on the back of the acrylic so it cannot be scuffed off in service.
