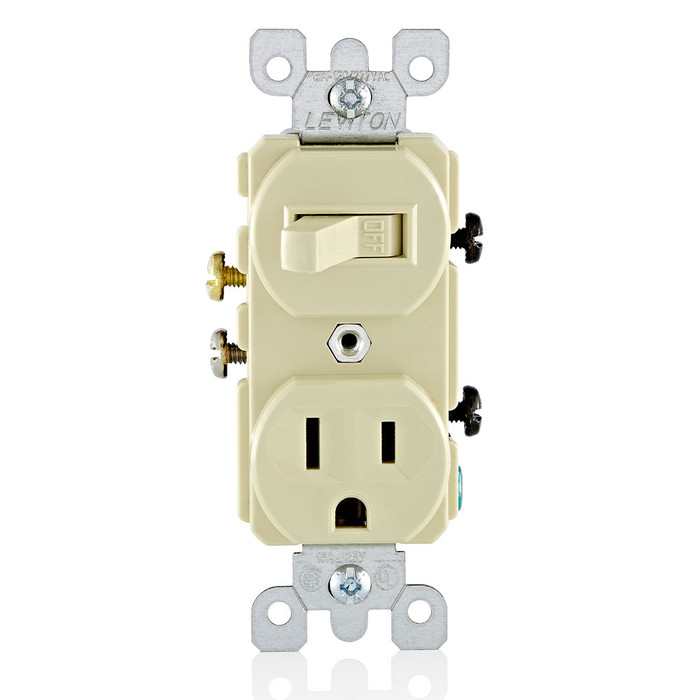

Leviton Duplex AC Combination Receptacle/Switch Device, 1-Pole, 15A

Leviton Duplex AC Combination Receptacle/Switch Device, 1-Pole, 15A

(No reviews yet) Write a Review

Model: 5225-W
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$10.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Duplex AC Combination Receptacle/Switch Device

The Leviton Duplex AC Combination Receptacle/Switch Device pairs a 1-Pole toggle switch with a duplex receptacle in a single wiring device, letting electricians control a light or fan while providing a plug outlet from one mounting location. The switch side is rated 120-Volt AC at 15-Amp, and the receptacle side is rated 125-Volt AC at 15-Amp with a NEMA 5-15R configuration for standard grounded plugs. This space-saving combination device is a practical solution for kitchens, utility rooms, garages, and other locations where a switch and outlet are both needed but wall space is limited.

Key Features

  • Combination Device: Duplex AC combination receptacle/switch design combines a toggle switch and a receptacle in one device, reducing the number of separate boxes needed.
  • 1-Pole Switch: 1-pole switching for straightforward single-location control of lighting or other loads.
  • Switch Rating: 120-Volt AC switch rating at 15-Amp for standard lighting and load control circuits.
  • Receptacle Rating: 125-Volt AC receptacle rating at 15-Amp for everyday plug-in loads.
  • NEMA Configuration: NEMA 5-15R receptacle configuration accepts standard grounded 15-amp plugs.
  • Duplex Function: Duplex receptacle styling provides a familiar two-outlet face while integrating the switch function into the same device footprint.

Technical Specifications

  • Amperage: 15A
  • Voltage: 120V
  • Poles: 1
  • Product Color: Ivory

Typical Applications

  • Residential and Light Commercial Wiring
  • Kitchens, Laundry Rooms, and Utility Areas
  • Garages and Workshops Needing Combined Switch/Outlet Control
  • Space-Constrained Wall Boxes Requiring a Switch and Receptacle Together
  • Renovation and New Construction Electrical Rough-In

Why Leviton?

Leviton combination switch/receptacle devices are engineered to deliver dependable dual-function performance, combining a 15-Amp, 120-Volt AC switch with a 15-Amp, 125-Volt AC NEMA 5-15R receptacle in a single reliable device. For electricians and facility teams standardizing on trusted wiring devices, Leviton offers consistent, code-oriented performance for professional installations in Ivory finish to match a variety of decor.

Manufacturer Resources

Technical Information

Product Specs

Product Type:
Switch/Receptacle Combination
Amperage Rating:
15A
Voltage Rating:
120V
Poles:
1
Nema Rating:
5-15R
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Combination Devices

Leviton 5225-W – Frequently Asked Questions

1) Can the Leviton 5225 combination switch/receptacle fit a single-gang box where I need both a light switch and an outlet?
That is exactly what the 5225 is for. It puts a 1-pole toggle switch and a duplex-style receptacle face on one device, so a single opening covers both functions instead of ganging two boxes. Useful in kitchens, laundry rooms, garages, and workshops where wall space is tight.
2) What plugs will the receptacle side of the Leviton 5225 accept?
The outlet side is a NEMA 5-15R configuration, so it takes standard three-prong grounded 15-amp cords, rated 125V AC at 15A. Anything with a 20-amp T-slot plug (5-20P) will not seat in it.
3) Is the Leviton 5225 rated for a 20-amp circuit?
No. Both halves are 15-amp devices, with the switch rated 120V AC at 15A and the receptacle 125V AC at 15A. If your branch circuit requires a 20-amp rated device, this is not the part.
4) Can I use the 5225 for three-way switching from two locations?
No. The switch is 1-pole, which controls a load from one location only. A three-way or four-way arrangement needs a different switch, so the 5225 suits single-location control of a light or fan.
5) What colors does the Leviton 5225 combination device come in?
Two: Ivory (5225-I) and White (5225-W). Both are the same electrical device, so pick by what matches the other devices and plates on the job.
6) Do I need a special wall plate for the Leviton 5225 switch/outlet combo?
Yes. A combination device does not take a plain toggle or plain duplex plate. You need a single-gang combination plate with one toggle opening and one duplex opening, ordered separately in the color matching your Ivory or White device.
7) Does the switch on the Leviton 5225 control the receptacle, or are they separate?
They are separate functions in one housing: the 1-pole switch controls a load such as a light or fan, while the receptacle provides a plug outlet. How they relate on your circuit depends on the wiring, and both can be fed from the same 120V, 15A supply.
8) Is the Leviton 5225 a GFCI device for a garage or kitchen counter?
No, it is a standard combination switch and receptacle, not a GFCI. Where the location requires ground-fault protection, feed it from a GFCI breaker or a GFCI device upstream.
