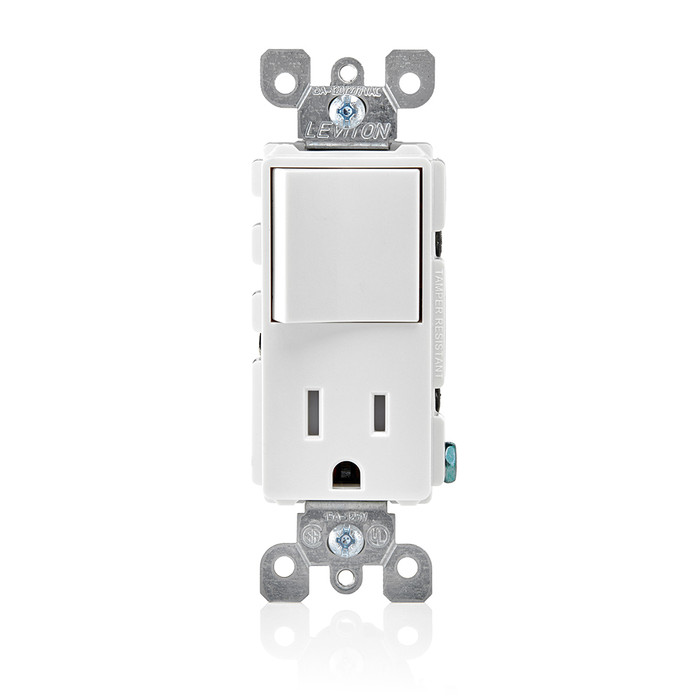

Leviton 1-Pole Combination Switch/Receptacle Device, 120V AC Switch / 125V Receptacle

The Leviton 1-Pole Combination Switch/Receptacle Device combines a single-pole switch and a receptacle outlet in one compact yoke, giving electricians and homeowners two functions from a single device opening. The switch side is rated 120-Volt AC for controlling lighting fixtures or other loads, while the receptacle side is rated 125-Volt for plugging in standard cord-connected equipment. This combination design is a practical solution for locations where box space is limited but both switching control and a power outlet are needed on the same circuit or on independent circuits. It is a straightforward, drop-in option for electricians standardizing on Leviton wiring devices across a job, and it simplifies both material lists and installation time on projects that call for a switch and an outlet in the same location.

Key Features

  • Combination Device: Integrates a 1-pole switch and a receptacle in a single unit, saving box space compared to installing two separate devices.
  • Switch Rating: 120-Volt AC single-pole switch for reliable on/off control of lighting or connected loads.
  • Receptacle Rating: 125-Volt receptacle for powering standard cord-and-plug connected equipment.
  • Single-Pole Configuration: Straightforward single-location switching, suitable for standard branch-circuit wiring.
  • Space-Saving Design: Ideal for retrofit or new-construction locations where combining a switch and receptacle in one gang simplifies wiring layout.
  • Versatile Wiring Options: Supports circuit arrangements where the switch and receptacle are fed independently or from the same source, depending on project needs.
  • Leviton Build Quality: Constructed to deliver dependable performance for everyday residential and commercial electrical applications.

Technical Specifications

  • Configuration: 1-Pole Combination Switch/Receptacle Device.
  • Switch Voltage Rating: 120-Volt AC.
  • Receptacle Voltage Rating: 125-Volt.
  • List Batch: LEV-20260730.

Typical Applications

  • Residential and Commercial Wiring Projects
  • Combination Switch and Receptacle Installations
  • Space-Constrained Electrical Boxes and Single-Gang Retrofits
  • General-Purpose Lighting and Device Control
  • Renovation and New Construction Wiring

Why Leviton?

Leviton wiring devices are engineered to combine everyday functionality with dependable, code-compliant performance. This 1-Pole Combination Switch/Receptacle Device brings together a 120-Volt AC switch and a 125-Volt receptacle in one reliable unit, helping installers simplify wiring in space-limited applications while maintaining the consistent quality electrical professionals expect from Leviton.

Manufacturer Resources

Technical Information

Product Specs

Product Type:
Combination Switch/Receptacle
Connection Type:
1-Pole Switch
Amperage Rating:
15A
Voltage Rating:
120V
Poles:
1
Nema Rating:
5-15R
Product Color:
White
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Combination Devices

Leviton 5625-W – Frequently Asked Questions

1) What receptacle configuration and amperage does the Leviton 5625-W combination switch/receptacle have?
The outlet side of the Leviton 5625-W is a NEMA 5-15R, 15A, 125V receptacle, so it takes standard two-pole three-wire grounding plugs on a 15-amp branch circuit. The switch half is a single-pole device rated 120V AC.
2) Can I wire the switch and the outlet on the 5625-W to separate circuits?
Yes. The 5625-W supports arrangements where the switch and the receptacle are fed independently or from the same source, so you can keep the outlet hot continuously while the switch controls a light, or run them off separate feeds. How you break the connection between the two halves follows the wiring diagram supplied with the device.
3) Will a combination switch/receptacle fit in a single-gang box?
That is the point of it. The Leviton 5625-W puts a 1-pole switch and a 15A receptacle on one yoke in a single device opening, which is what you use when the box has room for one device but the location needs both switching and an outlet. It takes a combination-style wallplate with one toggle opening and one duplex-style outlet opening, not a standard duplex or toggle plate.
4) Is the Leviton 5625-W a 3-way switch?
No. It is a single-pole device with one pole, meaning control from one location only. If you need the light switched from two points, a combination switch/receptacle in this configuration will not do it, and you need a 3-way device instead.
5) Can I put the 5625-W on a 20-amp kitchen or laundry circuit?
The device is rated 15A at 125V, so it belongs on a 15-amp branch circuit, or on a 20-amp general-purpose circuit only where the code in force allows 15A receptacles on a multi-outlet 20A circuit. It is not a 20A device, so it is not the part for a dedicated 20-amp small-appliance or laundry outlet where a 20A receptacle is required.
6) What color is the Leviton 5625-W, and will it match other white devices on the job?
The 5625-W is white, the -W suffix in the catalog number. If a property is standardized on white Leviton wiring devices, this drops into that scheme without a color break at the combination opening.
7) Where do I find the wiring diagram for the Leviton 5625-W?
Leviton publishes technical information for the 5625-W as a downloadable PDF, which is where the terminal layout and the alternate wiring arrangements for feeding the switch and receptacle separately are spelled out: https://zensupply.com/content/pdf/leviton/technical-information-0dcdb3.pdf
