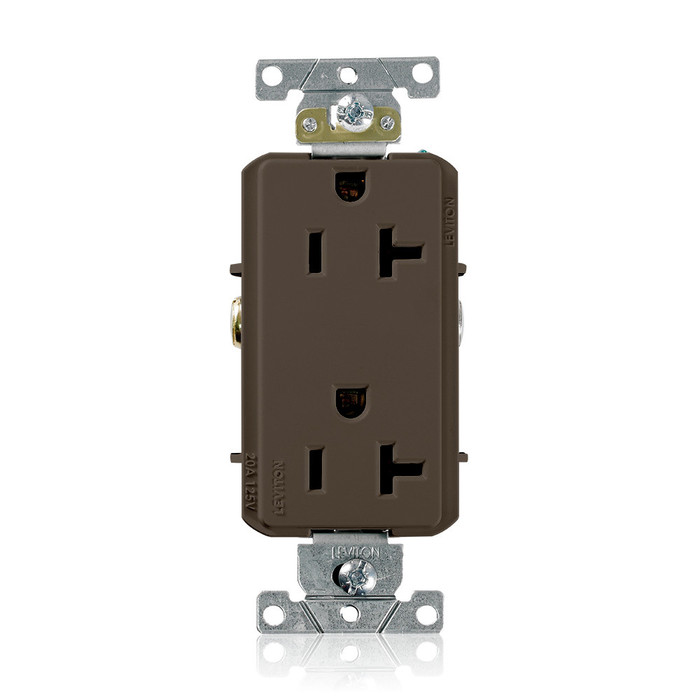

Leviton Heavy-Duty Narrow Body Duplex Receptacle, 20A 125V NEMA 5-20R

Leviton Heavy-Duty Narrow Body Duplex Receptacle, 20A 125V NEMA 5-20R

(No reviews yet) Write a Review

Model: 8300-HW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Heavy-Duty Narrow Body Duplex Receptacle, 20A 125V NEMA 5-20R

The Leviton is a Commercial Grade heavy-duty narrow body, impact-resistant straight blade duplex receptacle engineered for demanding commercial and industrial power applications. Rated 20A at 125V with a NEMA 5-20R configuration, this smooth-face Decora Plus™ receptacle is finished in Brown and built for dependable, code-compliant performance in high-traffic facilities. Its narrow body profile allows for easier installation in multi-gang and space-constrained wiring devices boxes while maintaining the rugged, impact-resistant housing commercial electricians rely on.

Key Features

  • Electrical Rating: 20-Amp, 125-Volt rating with a NEMA 5-20R configuration for standard commercial power circuits.
  • Heavy-Duty Construction: Commercial Grade heavy-duty narrow body design built to withstand frequent plug insertions and high-use environments.
  • Impact-Resistant Housing: Reinforced housing resists cracking and damage in demanding commercial and industrial settings.
  • Smooth Face Design: Smooth face straight blade configuration for a clean, professional appearance.
  • Decora Plus™ Styling: Decora Plus™ profile combines commercial-grade durability with a modern aesthetic.
  • Duplex Configuration: Straight blade duplex receptacle provides two independent outlets from a single device.
  • Finish: Brown finish suited to a wide range of commercial and industrial decor.

Technical Specifications

  • list_batch: LEV-VARMACHINE-20260803
  • Amperage: 20A

Typical Applications

  • Commercial and Industrial Electrical Installations
  • General Power Distribution in Offices and Facilities
  • High-Traffic Areas Requiring Heavy-Duty Devices
  • Receptacle Replacement and Retrofit Projects
  • New Construction Wiring Device Installations

Why Leviton?

Leviton's Commercial Grade heavy-duty narrow body receptacles are engineered with impact-resistant construction to deliver dependable performance where standard residential-grade devices fall short. The Decora Plus™ smooth face design pairs rugged 20A, 125V, NEMA 5-20R performance with a professional look, making it a practical choice for electrical contractors and facility managers who need durable, reliable wiring devices for commercial and industrial power distribution.

Manufacturer Resources

Product Specs

Amperage Rating:
20A
Voltage Rating:
125V
Nema Rating:
5-20R
Product Type:
Duplex Receptacle
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Leviton 8300-HW – Frequently Asked Questions

1) Will a Leviton 5-20R receptacle accept a regular 15-amp plug as well as a 20-amp plug?
Yes. A NEMA 5-20R face has the T-shaped neutral slot, so it takes both straight-blade 15A (5-15P) cords and 20A plugs with the turned blade. The Leviton narrow body duplex is rated 20A at 125V, so it belongs on a 20A branch circuit; putting it on a 15A circuit does not increase what the wiring can carry.
2) What is the difference between Leviton 16352, 16362-HGG, and the 8300 series receptacles?
They are different device choices on the same 20A 125V 5-20R platform. Model 16352 is the Decora Plus smooth-face commercial narrow body version. Model 16362-HGG is the hospital grade variant, which is what you specify for patient care areas and anywhere a hospital grade green dot is called out. The 8300 models are offered in variants including 8300-HW, 8300-OIG and 8300-SGR, which differ by device option and colour designation. Order by the exact model number, since the faces are not interchangeable in spec.
3) I need a hospital grade 20A outlet for a clinic exam room. Which model do I order?
Order the 16362-HGG. It is the hospital grade option in this 20A, 125V, 5-20R group, and hospital grade is the device type specified for patient care spaces. The standard 16352 is commercial grade and will not satisfy a hospital grade callout.
4) Will a Decora Plus receptacle work with the standard duplex wall plates already on my other outlets?
No. The Decora Plus smooth face uses a rectangular Decora-style opening, not the two round-eared duplex opening. If your existing plates are standard duplex, you need Decora/screwless Decora plates for these devices. Worth checking before you order a fleet quantity for a building where the plates are staying.
5) Can I use this 20A receptacle to replace a worn 15A outlet in an office?
Only if the branch circuit and conductors support it. The device is rated 20A at 125V, and a 20A receptacle should be fed by a 20A circuit on 12 AWG. If the existing circuit is 15A on 14 AWG, use a 15A device instead. Retrofit and replacement work is one of the intended applications, so the swap is straightforward once the circuit checks out.
6) Why choose a narrow body receptacle instead of a standard commercial duplex?
The narrow body profile gives you more room in the box. In a multi-gang box or a shallow box crowded with conductors, the slimmer device body makes folding wires and seating the strap easier without fighting the neighbouring devices. Electrically it is the same 20A, 125V, 5-20R device as a full-size commercial grade unit.
7) Is this receptacle heavy duty enough for a commercial corridor or breakroom, or is it residential grade?
It is Commercial Grade, not residential. The housing is impact resistant and the device is built for repeated plug insertions in high-traffic facilities, which is where standard residential-grade receptacles fail first. Typical fits are offices, industrial power distribution, and retrofit of worn-out devices.
8) What colour is the Leviton 16352 narrow body duplex receptacle?
Brown. It is a smooth-face Decora Plus device in a brown finish, which is the common match for older commercial installs where the existing devices and plates are brown rather than ivory or white. If you are standardizing a building on one colour, note that other models in the 8300 group carry their own colour designations.
9) Is this a duplex or a single receptacle, and can I split the two outlets?
It is a duplex straight blade device, giving two independent outlets from one strap. Whether you can split it onto two circuits depends on the break-off tab between the brass terminals on the specific model, so confirm the tab on the unit in hand before wiring a split-feed or switched-half configuration.
