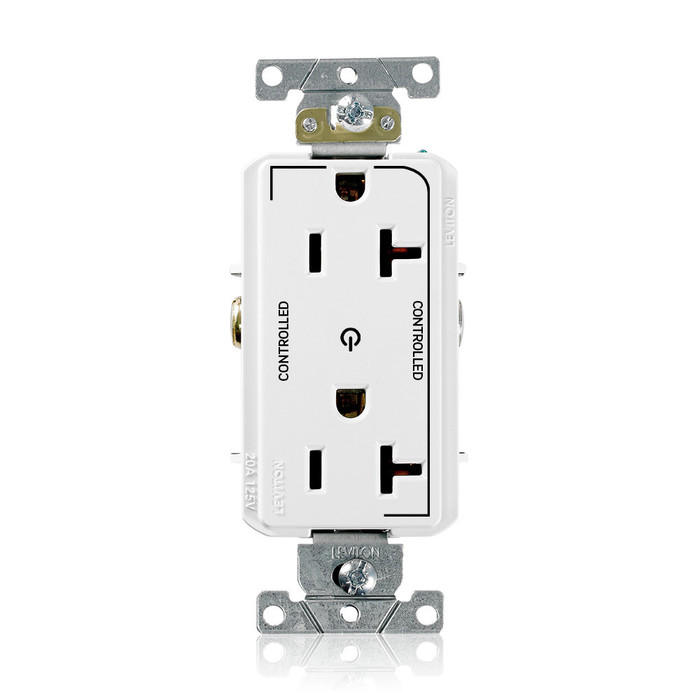

Leviton Commercial Grade Heavy-Duty Straight Blade Duplex Receptacle, 20A 125V NEMA 5-20R

Leviton Commercial Grade Heavy-Duty Straight Blade Duplex Receptacle, 20A 125V NEMA 5-20R

(No reviews yet) Write a Review

Model: 16352-1PW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$17.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Commercial Grade Heavy-Duty Straight Blade Duplex Receptacle, 20A 125V NEMA 5-20R

The Leviton is a Commercial Grade Heavy-Duty controlled straight blade duplex receptacle built for demanding professional electrical installations. Rated 20-Amp at 125-Volt with a NEMA 5-20R configuration, this Decora Plus™ style receptacle is finished in White and is available in 2PW and 1PW controlled configurations to match circuit-control requirements. Backed by Leviton's commercial-grade construction standards, it delivers dependable performance for controlled load applications in office, retail, and industrial settings.

Key Features

  • Electrical Rating: 20-Amp, 125-Volt for reliable performance on commercial branch circuits.
  • NEMA Rating: NEMA 5-20R configuration for standard 20A straight blade plug compatibility.
  • Commercial Grade Heavy-Duty: Built to Commercial Grade standards for durability in high-use professional environments.
  • Controlled Configuration: Available in 2PW and 1PW controlled options to support automatic receptacle control circuits.
  • Decora Plus™ Style: Straight blade duplex receptacle design in a clean White finish that complements Decora Plus wiring device systems.
  • Duplex Configuration: Dual outlet design provides two independent connection points on a single device.

Technical Specifications

  • list_batch: LEV-VARMACHINE-20260803
  • Amperage: 20A
  • Grade: Commercial
  • NEMA Rating: 5-20R
  • Voltage: 125V
  • Configuration Options: 2PW, 1PW

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Controlled Receptacle Circuits for Energy Management
  • Office and Retail Wiring Systems
  • New Construction and Renovation Projects
  • General Purpose 20A Duplex Outlet Applications

Why Leviton?

Leviton's Commercial Grade Heavy-Duty construction and Decora Plus™ design deliver the reliability professional electricians expect from a 20-Amp, 125-Volt NEMA 5-20R controlled duplex receptacle. With 2PW and 1PW controlled configuration options, this receptacle supports flexible circuit-control strategies while maintaining consistent, code-compliant performance for commercial and industrial wiring projects.

Manufacturer Resources

Product Specs

Amperage Rating:
20A
Voltage Rating:
125V
Nema Rating:
5-20R
Grade:
Commercial
Product Type:
Duplex Receptacle
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Leviton 16352-1PW – Frequently Asked Questions

1) What's the difference between the Leviton 16352-1PW and 16352-2PW receptacles?
Both are the same 20A 125V NEMA 5-20R Decora Plus duplex receptacle in white; the difference is the controlled configuration. The 1PW is the one-plug-controlled version and the 2PW is the two-plug-controlled version, so you pick based on whether one half of the duplex stays always-hot or both outlets switch with the control circuit. Order by the full part number, 16352-1PW or 16352-2PW, because the faceplate marking and wiring differ.
2) Do I need a controlled receptacle like the Leviton 16352 for energy code compliance?
Controlled receptacles are what you install when an energy management system or occupancy-based control has to shut down plug loads automatically. The 16352 is built for exactly that, offered in 1PW (one outlet controlled) and 2PW (both controlled) so you can leave power to a clock or a network device while the rest of the workstation drops. If nothing on the circuit is being switched by a controller, a standard commercial 20A 5-20R duplex is the simpler buy.
3) Can I put this 20A receptacle on a 15-amp circuit?
No. A 5-20R device belongs on a 20A branch circuit with conductors sized for 20 amps. Putting a 20A receptacle on a 15A breaker lets someone plug in a 20A load the wiring can't carry. The 16352 is rated 20A at 125V and should be fed accordingly.
4) Will a regular 15-amp plug work in a Leviton 5-20R receptacle?
Yes. A NEMA 5-20R face accepts both standard 5-15P parallel-blade plugs and 5-20P plugs with the sideways blade, so anything you'd plug into a normal 125V outlet works here. The reverse is not true, a 20A plug won't fit a 15A receptacle.
5) Is the Leviton 16352 heavy enough for a busy office or retail space, or should I use a spec grade device?
It's built to Leviton's Commercial Grade heavy-duty standard, which is the tier intended for high-cycle office, retail, and industrial branch circuits rather than residential use. For most tenant fit-outs and workstation circuits that is the right call. If the opening is a hospital or patient-care area, that needs a hospital grade device instead, which this is not.
6) Will the Leviton 16352 match the Decora wall plates I already have on the job?
It's a Decora Plus style device, so it takes the standard rectangular Decora opening and matches Decora Plus switches and dimmers on the same gang. The white finish lines up with white Decora plates already installed. Wall plates are ordered separately, they don't ship with the receptacle.
7) Is the Leviton 16352 a duplex, and can the two outlets be split?
It is a duplex, two outlets on one strap. On the 1PW version one receptacle is controlled and the other is not, which means the device is intended to be fed from two sources, the controlled circuit and an uncontrolled one. The 2PW controls both outlets from the same controlled feed.
