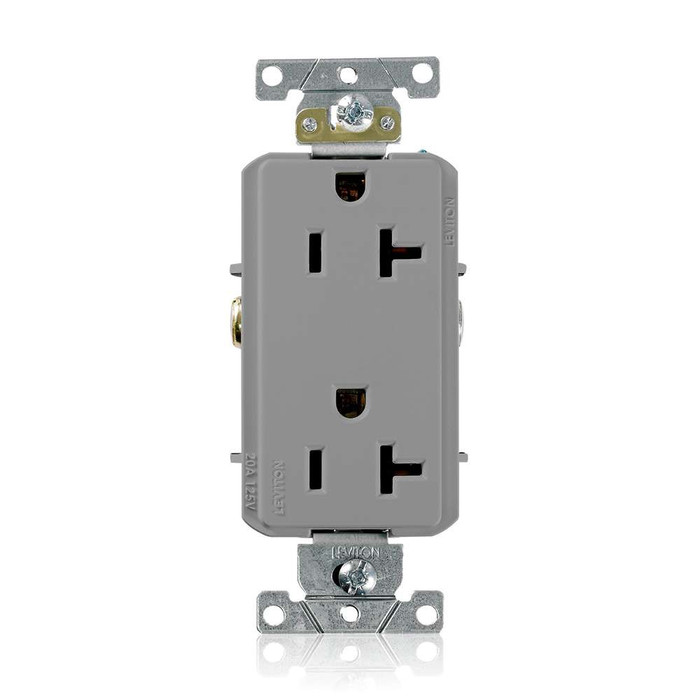

Leviton 16352-GY Heavy-Duty Straight Blade Duplex Receptacle, Commercial Grade

Leviton Commercial Grade Heavy-Duty Straight Blade Duplex Receptacle, 20A 125V, NEMA 5-20R, Gray

(No reviews yet) Write a Review

Model: 16352-GY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Commercial Grade Heavy-Duty Straight Blade Duplex Receptacle, Gray

The Leviton Commercial Grade Heavy-Duty Straight Blade Duplex Receptacle is a Decora Plus™ smooth face device built for demanding commercial and light-industrial electrical environments. Rated 20A at 125V with a NEMA 5-20R configuration, this duplex receptacle delivers two independent, dependable outlets in a single space-saving device body finished in Gray. As part of the Leviton family of professional-grade wiring devices, it is engineered to withstand frequent plugging and unplugging cycles found in offices, retail spaces, restaurants, warehouses, and other high-traffic commercial facilities.

Key Features

  • Electrical Rating: Rated 20A at 125V for general-purpose commercial power distribution.
  • NEMA 5-20R Configuration: Straight blade duplex design compatible with common 20A straight blade plugs used throughout commercial facilities.
  • Duplex Design: Two independent outlets on a single device body, maximizing outlet availability without adding extra wall space or junction boxes.
  • Commercial Grade Construction: Built to commercial grade specifications for reliable performance under frequent, everyday use in professional settings.
  • Heavy-Duty Build: Designed for durability in demanding commercial and light-industrial electrical installations that see repeated device cycling.
  • Smooth Face Decora Plus Style: Sleek, smooth face profile for a clean commercial aesthetic.
  • Finish: Gray color option to match existing wiring device schemes.

Technical Specifications

  • Amperage: 20A
  • Voltage: 125V
  • NEMA Rating: 5-20R
  • Product Color: Gray

Typical Applications

  • Commercial and Light-Industrial Electrical Installations
  • Office, Retail, and Hospitality Power Distribution
  • General-Purpose Wall Outlet Replacement and Upgrades
  • New Construction and Facility Renovation Projects
  • High-Traffic Areas Requiring Frequent Device Cycling

Why Leviton?

Leviton is a trusted name in wiring devices, and this Heavy-Duty Straight Blade Duplex Receptacle reflects that reputation with commercial grade construction built for the rigors of professional electrical work. Electrical contractors and facility managers rely on Leviton devices for consistent, code-conscious performance across commercial and light-industrial projects. Choosing this Leviton 20A 125V NEMA 5-20R duplex receptacle in Gray means standardizing on a brand engineered for durability and everyday reliability in demanding commercial environments.

Manufacturer Resources

Technical Information

Product Specs

Product Type:
Duplex Receptacle
Connection Type:
Straight Blade
Amperage Rating:
20A
Voltage Rating:
125V
NEMA Rating:
5-20R
Grade:
Commercial
Product Color:
Gray
Product Finish:
Gray
Department:
Electrical
Product Group:
Outlets
Product Subgroup:
Wiring Accessories

Leviton 16352-GY – Frequently Asked Questions

1) Will a Leviton 16352 20A receptacle accept a standard 15A plug, or only 20A plugs?
A NEMA 5-20R face takes both. The 5-20R slot pattern is the T-shaped neutral, so it accepts ordinary 15A straight blade cords (5-15P) as well as the sideways-blade 20A plugs found on commercial appliances and equipment. That is why the 16352 is the usual choice where a circuit is 20A and the loads are mixed, such as breakrooms, copy rooms, and shop benches.
2) Can I put the Leviton 16352 receptacle on a 15 amp branch circuit?
No. A 20A 125V 5-20R device belongs on a 20A circuit wired with 12 AWG. Put a 5-20R face on a 15A circuit and you are inviting someone to plug in a 20A load the wiring cannot carry. If the circuit is 15A, use a 5-15R commercial grade duplex instead.
3) Will the Leviton 16352 fit a standard wall plate and a standard device box?
It is a Decora Plus smooth face device, so it needs a rectangular Decora style opening wall plate, not the small keyhole plate used for a traditional duplex. Body is a standard single gang strap, so it drops into any normal single gang box or a multi-gang opening. Plates are a separate order.
4) Can I swap a Leviton 16352 straight into an existing 20A outlet that has a T-slot?
Yes, assuming the existing device is also 125V 20A with a 5-20R face and the box is fed by a 20A circuit. Terminations are the usual line, neutral, and ground on a single gang strap, so it is a like for like replacement. The one thing that changes is the cover: if the old outlet was a traditional duplex with a figure-eight plate, you need a Decora style plate to go with the smooth face.
5) What colors does the Leviton 16352 duplex receptacle come in?
Four: gray, white, black, and red. Gray and white are the everyday commercial finishes; red is what facilities use to flag emergency or generator-backed power, so on a healthcare or data room job order red only for the circuits actually on backup. Order by suffix, 16352-GY gray, 16352-W white, 16352-E black, 16352-R red.
6) Is the Leviton 16352 a residential or commercial grade receptacle?
Commercial grade, and built heavy duty for repeated cycling. That is the tier above residential spec grade and below hospital grade, which is the right level for offices, retail, restaurants, and warehouse areas where cords come in and out daily. If the job spec calls for hospital grade (the green dot), this is not that device.
7) Is the Leviton 16352 a tamper resistant or GFCI outlet?
Neither. The 16352 is a straight blade 20A 125V duplex, commercial grade, with no ground fault protection and no shutters. Where the NEC requires GFCI protection (kitchens, bathrooms, rooftops, outdoors, and similar) you either feed it from a GFCI breaker or a GFCI device upstream, or specify a 20A GFCI receptacle in its place.
8) I am standardizing outlets across a building, is one color better for matching what is already installed?
Gray is the common commercial match on painted or neutral walls and pairs with gray Decora plates; white is the match in offices and hospitality with white trim. All four colors are the same 20A 125V commercial grade device, so you can standardize on one body across the property and use red only where circuits come off the generator or emergency panel. Because the device is Decora Plus smooth face, the plate color and style have to be matched too.
9) What is the Leviton part number for the gray 20A Decora Plus duplex receptacle?
16352-GY is the gray one. The family runs 16352-W white, 16352-E black, and 16352-R red, all 20A 125V NEMA 5-20R commercial grade. Quote the full suffix on a submittal, since the base 16352 number alone does not tell the supply house which color to pull.
