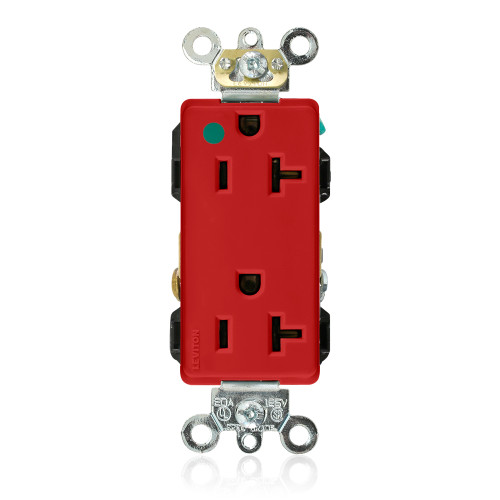

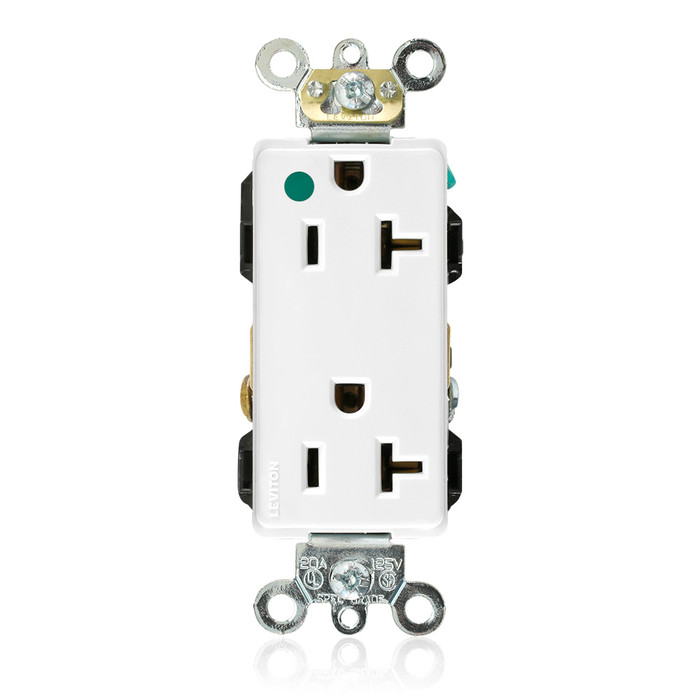

Leviton Hospital Grade Extra Heavy-Duty Straight Blade Duplex Receptacle, 20A 125V NEMA 5-20R

Leviton Hospital Grade Extra Heavy-Duty Straight Blade Duplex Receptacle, 20A 125V NEMA 5-20R

(No reviews yet) Write a Review

Model: 16362-HGW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Hospital Grade Extra Heavy-Duty Straight Blade Duplex Receptacle

The Leviton Hospital Grade Extra Heavy-Duty Straight Blade Duplex Receptacle is engineered for demanding environments where reliability and code compliance are non-negotiable. Rated 20A at 125V with a NEMA 5-20R configuration, this Decora Plus™ style receptacle delivers the extra heavy-duty performance required in hospital-grade applications. Built to withstand frequent plug insertions and continuous daily use, it is a dependable choice for facilities that cannot tolerate device failure. The receptacle is available in White and Ivory to coordinate with a range of facility color schemes.

Key Features

  • Amperage Rating: 20A supports reliable operation of demanding electrical loads.
  • Voltage Rating: 125V for standard branch-circuit applications.
  • NEMA Configuration: 5-20R straight blade configuration ensures compatible plug connections.
  • Hospital Grade Construction: Extra heavy-duty build meets the rigorous demands placed on hospital-grade electrical devices.
  • Straight Blade Design: Duplex receptacle configuration supports two independent connections from a single device.
  • Decora Plus™ Styling: Clean, modern receptacle profile suited to professional and institutional interiors.
  • Color Options: Available in White and Ivory to coordinate with facility decor and finish schedules.
  • Extra Heavy-Duty Rating: Built for high-frequency use in settings where standard-grade devices would wear prematurely.

Certifications & Compliance

  • Hospital Grade Rated

Technical Specifications

  • Amperage: 20A
  • Voltage: 125V
  • NEMA Rating: 5-20R
  • Grade: Hospital

Typical Applications

  • Hospitals and Healthcare Facilities
  • Commercial and Institutional Electrical Installations
  • Patient Care Areas Requiring Hospital-Grade Devices
  • Laboratories and Clean Room Environments
  • High-Traffic Facility Wiring Requiring Extra Heavy-Duty Devices
  • Renovation and New Construction Projects

Why Leviton?

Leviton builds its Hospital Grade receptacles to withstand extra heavy-duty use in the most demanding facility environments. With a robust 20A, 125V NEMA 5-20R construction and Decora Plus™ styling, this duplex receptacle delivers the dependable, code-compliant performance that healthcare and commercial electrical professionals rely on every day. Leviton's Hospital Grade construction standard reflects a commitment to durability and consistent performance across high-use facility environments, making it a trusted choice for electrical contractors and facility managers alike.

Manufacturer Resources

Product Specs

Product Type:
Duplex Receptacle
Amperage Rating:
20A
Voltage Rating:
125V
Nema Rating:
5-20R
Grade:
Hospital
Connection Type:
Straight Blade
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Leviton 16362-HGW – Frequently Asked Questions

1) Will a Leviton 5-20R hospital grade receptacle accept a regular 15-amp plug?
Yes. The NEMA 5-20R face on this Leviton hospital grade duplex takes both standard 15A straight blade plugs and 20A plugs with the sideways neutral blade, so equipment cords of either type land in the same device. It is rated 20A at 125V, so it belongs on a 20A branch circuit.
2) What is the difference between a hospital grade receptacle and a standard commercial one?
Grade is the whole point of this device. It is built to the hospital grade standard, which is an extra heavy-duty construction intended for repeated plug insertions and constant daily use, where a standard-grade device wears out early. That matters in patient care areas, labs, and any high-traffic facility opening where a device failure is not acceptable. If the circuit is ordinary office or back-of-house power with light plug cycling, a standard commercial spec grade device does the same electrical job for less device.
3) Which Leviton part number do I order for a white hospital grade 20A duplex, and which one for ivory?
Two colors are offered. White is Leviton 16362-HGW and ivory is Leviton 8300-SGI. Both are the same 20A 125V NEMA 5-20R hospital grade duplex, so pick by the finish schedule on the job.
4) Can I put this 20A hospital grade receptacle on a 15-amp circuit?
No. A 20A 125V receptacle belongs on a 20A branch circuit with 12 AWG conductors and a 20A breaker. Installing a single 5-20R on a 15A circuit is not a code-legal arrangement. If the existing circuit is 15A, use a 15A hospital grade device instead, or upsize the circuit.
5) Will a Decora Plus hospital grade receptacle fit my existing wall plates?
It uses the Decora Plus rectangular opening, not the traditional duplex figure-eight opening. That means it needs a Decora style wall plate, and a standard duplex plate will not fit over it. If you are standardizing a floor or a wing, order the plates to match, and note the white (16362-HGW) and ivory (8300-SGI) devices so the plate color matches the device.
6) Is this receptacle suitable for patient care areas in a hospital?
Yes, that is what it is built for. It carries the hospital grade rating and Leviton lists patient care areas, hospitals and healthcare facilities, laboratories, and clean room environments among its intended applications. For patient care spaces, also confirm your project's grounding and redundant ground requirements with the electrical engineer of record.
7) For a building-wide receptacle replacement, can I use these everywhere or only in the clinical areas?
They work anywhere on a 20A 125V circuit, so a facility can standardize on one device across clinical and non-clinical spaces and keep a single part on the truck. Two colors cover most finish schedules: white 16362-HGW and ivory 8300-SGI. The limit is the circuit, not the room. Any opening fed by a 15A circuit needs a 15A device rather than this one.
8) Is this a duplex receptacle or a single outlet?
Duplex. The device carries two 5-20R straight blade outlets on one yoke, so a single box position gives you two independent connections. Straight blade, not twist-lock, so ordinary equipment cords plug straight in.
