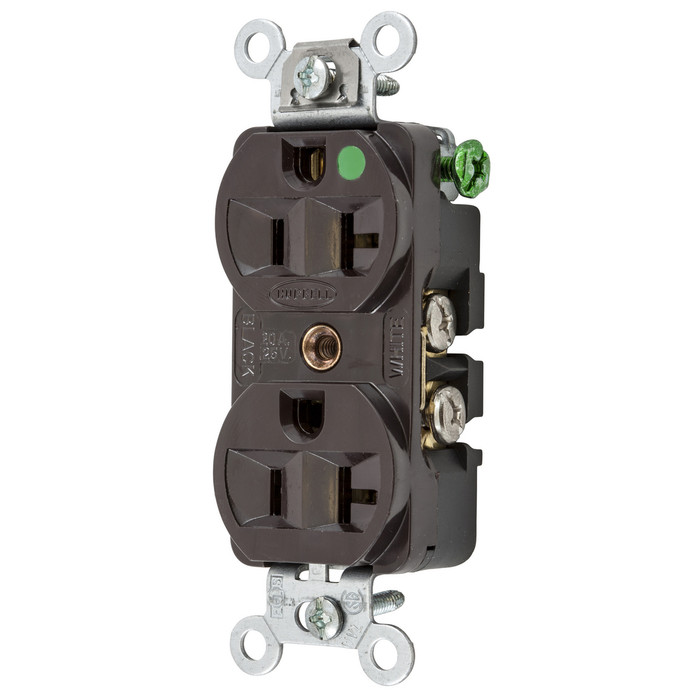

Hubbell Wiring HBL8300H Hospital Grade Extra Heavy-Duty Duplex Receptacle, 20A 125V NEMA 5-20R

Hubbell Wiring HBL8300H Hospital Grade Extra Heavy-Duty Duplex Receptacle, 20A 125V NEMA 5-20R

(No reviews yet) Write a Review

Model: HBL8300HI
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$63.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hubbell Wiring HBL8300H Hospital Grade Extra Heavy-Duty Duplex Receptacle, 20A 125V NEMA 5-20R

The Hubbell Wiring HBL8300H is a hospital grade, extra heavy-duty straight blade duplex receptacle engineered for the most demanding commercial, industrial, and healthcare environments. Featuring a slender/compact design, this receptacle is rated 20-Amp, 125-Volt and configured to NEMA 5-20R specifications for reliable, code-compliant power connections, and is available in Ivory and White finishes to match facility décor. Built to hospital grade standards, the HBL8300H is designed to withstand rigorous daily use while maintaining consistent, dependable electrical connections. Facilities requiring the highest level of performance and durability can rely on the HBL8300H to deliver dependable service in high-traffic and critical-care settings.

Key Features

  • Hospital Grade Construction: Meets hospital grade standards for use in healthcare facilities and other demanding environments requiring superior reliability.
  • Extra Heavy-Duty Design: Built to withstand frequent plugging and unplugging cycles in high-use commercial and institutional settings.
  • Slender/Compact Profile: Space-saving slender/compact housing simplifies installation in multi-gang boxes and tight wiring configurations.
  • Straight Blade Duplex Configuration: Dual-outlet straight blade design provides two independent power connections from a single device.
  • Electrical Rating: Rated 20-Amp, 125-Volt for standard branch circuit applications.
  • NEMA 5-20R Configuration: Accepts NEMA 5-15P and 5-20P plugs for broad compatibility with 15-Amp and 20-Amp cord caps.
  • Available Finishes: Offered in Ivory and White to suit a variety of facility color schemes.

Certifications & Compliance

  • Hospital Grade Rated

Technical Specifications

  • Refer to manufacturer documentation for complete specifications.

Typical Applications

  • Hospital and Healthcare Facility Wiring
  • Commercial and Institutional Electrical Installations
  • High-Traffic Areas Requiring Heavy-Duty Receptacles
  • Multi-Gang Box Installations
  • Renovation and New Construction Projects

Why Hubbell Wiring?

Hubbell Wiring is a trusted name in professional-grade electrical devices, and the HBL8300H series reflects that commitment with its hospital grade, extra heavy-duty construction. Designed to meet the rigorous demands of healthcare and commercial environments, this duplex receptacle delivers dependable, code-compliant performance backed by Hubbell Wiring's reputation for quality, with Ivory and White finish options available to fit any facility.

Manufacturer Resources

Product Specs

list_batch:
HUG-20260922
Product Type:
Duplex Receptacle
Voltage Rating:
125V
Amperage Rating:
20A
Configuration:
NEMA 5-20R
Grade:
Hospital Grade
Department:
Electrical
Product Subgroup:
Receptacles & Outlets
Product Group:
Wiring Devices

Hubbell Wiring HBL8300HI – Frequently Asked Questions

1) Will the Hubbell HBL8300H accept a regular 15 amp plug, or only 20 amp cord caps?
It takes both. The HBL8300H is a NEMA 5-20R duplex, which has the T-slot neutral, so it accepts NEMA 5-15P and 5-20P plugs. That means standard 15 amp equipment cords and 20 amp cords both land in it. Device rating is 20A, 125V, so the branch circuit and conductors need to be sized for 20 amps.
2) Is the HBL8300H actually hospital grade, or just heavy duty?
Hospital grade, and extra heavy-duty on top of that. For patient care areas, the green dot hospital grade designation is what inspectors look for, and this device carries the hospital grade rating. Extra heavy-duty refers to the construction built for repeated plug cycles, which is a durability class, not a substitute for the hospital grade rating.
3) Which part number do I order for ivory versus white Hubbell HBL8300H receptacles?
Two colors, two part numbers. Ivory is HBL8300HI and white is HBL8300HW. Same 20A, 125V NEMA 5-20R hospital grade device in both; only the color changes, so you can mix them across a floor without changing the electrical spec.
4) Will this fit in a crowded multi-gang box with several devices and a lot of wire?
That is what the slender/compact body is for. The HBL8300H uses a space-saving housing that eases installation in multi-gang boxes and tight wiring configurations, which matters on four and six gang nurse station or corridor boxes where a standard-bodied hospital grade device fights the conductors.
5) Does a wall plate come with the Hubbell HBL8300H?
No wall plate is included. The HBL8300H ships as the receptacle only, so order a plate separately. For a duplex straight blade device you want a standard duplex opening plate, and in healthcare work stainless or nylon is the usual choice. Plate color is a separate decision from the device color, which is ivory or white here.
6) Is the HBL8300H a straight blade or twist-lock receptacle?
Straight blade. It is a duplex straight blade device giving two independent 125V outlets from one yoke. If the application calls for a cord that cannot be pulled out accidentally, such as a portable imaging cart on a locking cord, you need a twist-locking configuration rather than this 5-20R.
7) Is a hospital grade receptacle worth it outside of a hospital, say for a hotel or school?
Often yes, and it has nothing to do with the building type. The value is the retention and construction: hospital grade devices are built for repeated plugging and unplugging and hold a plug tighter, which is why the HBL8300H is specified in high-traffic commercial and institutional work as well as patient care areas. Dorm rooms, guest rooms, and classroom walls where cords get yanked daily are exactly where a standard spec grade device loosens first.
