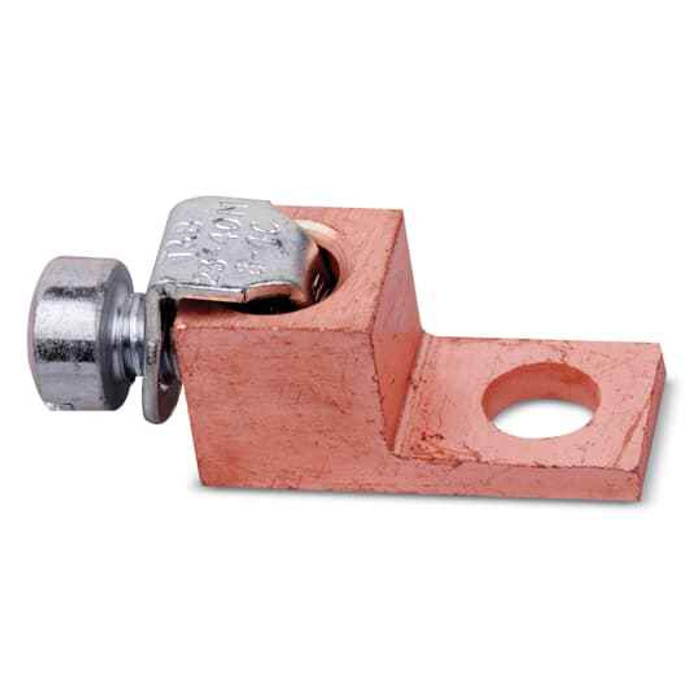

LOCKTITE CU 1HL 90D UPRT LUG 1-2/0
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire & Cable Management
- Product Type:
- Locktite Connectors
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Type2:
- Mechanical connectors
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Material:
- Copper
Blackburn 31009UAL – Frequently Asked Questions
1) Is the Blackburn 31009UAL lug copper or aluminum, and can I use it on aluminum conductors?
The lug body is copper. The UAL designation in Blackburn's Locktite line marks it as dual rated for copper or aluminum conductors, so it will take either as long as the conductor falls in the 1 to 2/0 AWG range. If you are landing aluminum, use the appropriate joint compound per your installation practice.
2) Is the Blackburn 31009UAL lug UL listed?
Yes. It carries UL file E9809 under Blackburn's Locktite mechanical connector listing. That is the reference an inspector or spec reviewer will want for a listed terminal on service or feeder conductors.
3) Why would I pick a 90 degree upright lug instead of a straight one?
The 31009UAL is a 90 degree upright terminal, meaning the conductor barrel stands vertical while the bolt pad lies flat against the bus or pad. That is what you want when the cable drops in from above or below a panel, breaker, or ground bar and you do not want to bend the conductor to reach a flat pad. If your cable already runs parallel to the mounting surface, a straight (flat) lug is the simpler choice.
4) Is this a mechanical set screw lug or a compression lug?
Mechanical. The Locktite 31009UAL clamps the conductor with a set screw, so it installs with a hex key or driver and no hydraulic crimper or die set. For contractors doing one-off terminations or field changes that is the practical advantage over a compression barrel lug, which needs the matching tool and die.
5) Does the Blackburn 31009UAL come as a single lug or in a pack?
Sold individually. The selling unit is each, so a three phase plus neutral termination needs four ordered separately. The catalog number to order is 31009UAL.
6) Where is the Blackburn 31009UAL lug made?
Manufactured in Mexico. Worth knowing if you are submitting on a job with country of origin documentation requirements, such as federal or institutional procurement.
