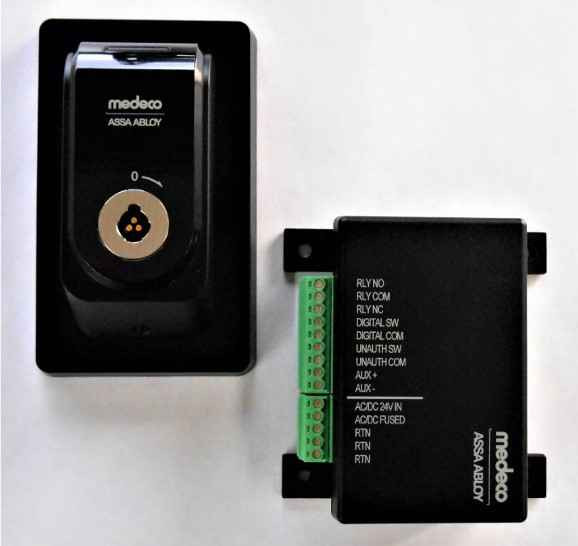

Medeco EA-100192 Access Interface Module (AIM) for XT Intelligent Key System

(No reviews yet) Write a Review

Model: EA-100192

In Stock (leaves warehouse same day if ordered before 3pm ET)

$899.00
$857.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Medeco EA-100192 Access Interface Module (AIM) for XT Intelligent Key System

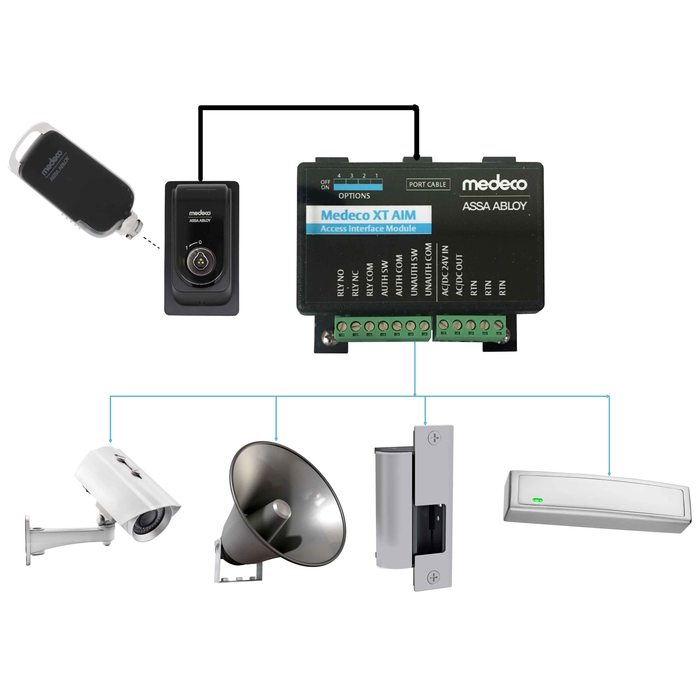

The Medeco EA-100192 Access Interface Module — known as the AIM — is a commercial-grade electronic accessory designed to greatly enhance the capability of the Medeco XT Intelligent Key System. By allowing users to insert their Medeco XT key to trigger actions in other systems, the AIM bridges mechanical key use with electronic access control, enabling authorized and unauthorized event conditions to drive real-time responses. The AIM can be powered by an XT key or a 12–24V power supply depending on the AIM connection, and it uses NO (Normally Open) and NC (Normally Closed) relays to trigger different outputs for Access Granted or Access Denied events.

Key Features

  • Authorized and Unauthorized Event Triggering: Uses both authorized and unauthorized event conditions to unlock doors with electric strikes or maglocks, initiate video cameras, and bring attention to unauthorized events by triggering access control or alarm panels.
  • Flexible Power Options: Can be powered by an XT key or a 12–24V power supply depending on AIM connection, accommodating a wide range of installation environments.
  • NO and NC Relay Outputs: Uses Normally Open (NO) and Normally Closed (NC) relays to trigger different outputs for Access Granted or Access Denied events, providing versatile integration with third-party systems.
  • Key Audit Capability: Tracks events just like an XT cylinder, maintaining a full audit trail of key activity for security and compliance purposes.
  • Two-Person Authentication Option: Supports a two-person authentication configuration for enhanced security in high-sensitivity applications.
  • XT Intelligent Key System Integration: Greatly enhances the capability of the Medeco XT Intelligent Key System, enabling seamless interaction between mechanical key use and electronic system responses.
  • Access Control and Alarm Panel Compatibility: The Medeco XT AIM module can be used with other access control or alarm panels to trigger authorized and unauthorized event conditions, expanding system functionality without replacing existing infrastructure.

Technical Specifications

  • Product Group: Electronic Access Controls
  • Product Subgroup: Controllers, Power Supplies and Transformers
  • Product Type: Parts and Accessories
  • Commercial/Residential: Commercial
  • Subcategory: Parts and Accessories
  • Product Model: EA-100237
  • Product Category: Parts and Accessories
  • Department: Door Hardware
  • PDF:Installation & User Guide: https://zensupply.com/content/pdf/bea/AADSS1061745
  • PDF:Medeco XT Access Interface Module (AIM): https://zensupply.com/content/pdf/bea/AADSS1083332

Typical Applications

  • Commercial Office Buildings with Existing Access Control Infrastructure
  • Healthcare Facilities Requiring Dual-Authentication or Audit Trail Compliance
  • Educational Institutions Integrating Mechanical Key Systems with Electronic Alarms
  • Government and Municipal Buildings with High-Security Access Requirements
  • Industrial and Warehouse Facilities Using Electric Strikes or Maglocks
  • Retail Establishments Combining Video Surveillance with Key-Based Access
  • Multi-Tenant Commercial Properties Upgrading to Intelligent Key Systems

Why Medeco AIM?

Medeco Access Interface Module products deliver professional-grade reliability by bridging the Medeco XT Intelligent Key System with third-party electronic access control and alarm panels through NO and NC relay outputs. Engineered for demanding commercial applications, the AIM supports key audit tracking, two-person authentication, and flexible 12–24V power options, making it a versatile and dependable component for security integrators and facility managers alike.

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Controllers, Power Supplies and Transformers
Product Type:
Parts and Accessories
Commercial/Residential:
Commercial
Subcategory:
Parts and Accessories
Product Model:
EA-100237
Product Category:
Parts and Accessories
Department:
Door Hardware

Medeco EA-100192 – Frequently Asked Questions

1) What does the Medeco XT Access Interface Module actually do in an access control system?
The Medeco EA-100192 AIM lets an XT intelligent key trigger electronic outputs. Insert an authorized XT key and the module fires a relay to release an electric strike or maglock, start a camera, or signal an access control panel. An unauthorized key attempt drives a separate output, so an alarm panel can pick it up. It bridges mechanical key use to electronic systems without replacing the panel or locks already in the building.
2) How is the Medeco EA-100192 AIM powered, and do I need to run a separate power supply to it?
Two options. The AIM can draw power from the XT key itself, or from a 12 to 24V power supply, depending on how the AIM is connected. Key-powered is the route where there is no power at the location; the 12 to 24V feed is used where the module is wired into a panel or powered device.
3) Does the Medeco AIM use normally open or normally closed contacts for the door release?
Both. The AIM carries NO (Normally Open) and NC (Normally Closed) relays, and they drive different outputs for Access Granted versus Access Denied. That is what lets one module release a fail-secure electric strike on a valid key while a separate contact reports the denied attempt to an alarm panel or camera trigger.
4) Do I have to replace my existing alarm or access control panel to use Medeco XT keys with it?
No. The AIM is built to work with access control and alarm panels already installed, using its relay outputs to pass authorized and unauthorized key events into them. The existing panel stays; the module is the interface between it and the XT key system.
5) Will the Medeco AIM work with a mechanical Medeco key system, or does it need XT?
XT only. The AIM reads the Medeco XT intelligent key, which is what carries the credential and the event data. A standard mechanical Medeco key has no electronics in it and will not trigger the module. If the site is on mechanical cylinders today, the XT conversion comes first.
6) What is the difference between the Medeco EA-100192 AIM and a Locknetics RDB4 relay distribution board?
Both put relay contacts between a credential event and a device such as an electric strike or maglock, but they sit at different points in the system. The Medeco EA-100192 Access Interface Module is triggered by a Medeco XT intelligent key inserted into the module itself, and it switches NO and NC relays to signal Access Granted or Access Denied while logging the event as an XT cylinder would. The Locknetics RDB4 is a 4 output relay distribution board supplied as a board only, so it expands and distributes outputs from a controller that is already making the access decision. Use the AIM when the key is the credential and you need the decision plus the audit record; use the RDB4 when a separate panel decides and you need more relay outputs from it.
7) Will the Medeco AIM keep an audit trail like a regular XT cylinder does?
It tracks events just like an XT cylinder, so key activity at the module lands in the same audit record as key activity at your XT locks. For healthcare, government, or anywhere a facility has to show who opened what and when, the AIM does not create a blind spot in the audit trail.
8) Can I set up a two-person rule on a Medeco XT opening?
The AIM supports a two-person authentication configuration, so a controlled opening or cabinet can be set to require two authorized XT keys rather than one. That is the usual ask on pharmacy stores, evidence rooms, and cash handling areas.
9) I just need more relay outputs on a door, not key-based triggering. Is the Medeco AIM the right part?
Probably not. The AIM's value is that an XT key is the trigger, with the event audited. If all you need is to fan one input out to several controlled outputs, a relay distribution board such as the Locknetics RDB4, a four-output relay distribution board, does that job without any key system behind it.
10) If I power the Medeco AIM from a 12 to 24V supply, what kind of transformer do I need?
Anything delivering within the module's 12 to 24V range off line voltage. The Adams Rite 4605 regular transformer steps 115 VAC down to 12/24 VAC with a 40 volt-amp output, which puts it in the AIM's stated voltage window. Size the supply against everything else on the circuit, since a strike or maglock on the same output draws far more than the module.
11) Can a transformer like the Adams Rite 4605 power the Medeco EA-100192 Access Interface Module?
The Medeco EA-100192 AIM can be powered by an XT key or by a 12 to 24V power supply, depending on the AIM connection used. The Adams Rite 4605 regular transformer converts 115 VAC to 12/24 VAC with a 40 volt-amp output, which is the same 12 to 24 volt band the AIM accepts. Confirm the AC or DC requirement for the specific AIM connection in the Medeco XT Access Interface Module documentation before pairing the two, since the 4605 output is AC. Note also that these are separate parts: the AIM is the interface module and the 4605 is only the power source for it and any strike or maglock on the same circuit.
12) If I only need an audible alert on an unauthorized attempt, do I need the Medeco EA-100192 AIM or a sounder like the RCI 914?
It depends on whether the alert has to be tied to a key credential. The RCI 914 Series delayed egress sounder produces a field-selectable volume output up to 102dB and annunciates on its own, so for a straightforward audible warning at an exit it does the job without any key system behind it. The Medeco EA-100192 AIM is the choice when the alert has to distinguish who tried: it uses authorized and unauthorized event conditions from a Medeco XT key to drive access control or alarm panels, start video cameras, or release electric strikes and maglocks, and it keeps an audit trail of key activity. Buyers in healthcare, government, and education specify the AIM for that credential linkage and compliance record rather than for the noise itself.
13) Is a request-to-exit kit such as the Command Access REX-KIT-ML an alternative to the Medeco EA-100192 Access Interface Module?
No, they solve opposite sides of the door. The Command Access REX-KIT-ML is a field installable request to exit kit for ML1-Series mortise locks, and the related CAT-SCHLBMKIT-ML is a field installable latchbolt monitor switch kit for Schlage L9000 mortise locks with an SPDT configuration. Those kits report a mechanical condition from inside the lock body, such as someone turning the lever to exit or the latchbolt projecting. The Medeco EA-100192 AIM is mounted as its own module and is actuated by inserting a Medeco XT key, then switches NO and NC relays for Access Granted or Access Denied events. A door that needs both credentialed entry signalling and an egress or latch signal takes the AIM plus the appropriate switch kit, not one in place of the other.
14) Is the Medeco EA-100192 AIM a commercial-duty product or a residential one?
Commercial. Medeco classifies the EA-100192 as commercial-grade, and the typical installs are office buildings, healthcare, schools, government facilities, warehouses, retail, and multi-tenant commercial property.
15) Is there an installation guide for the Medeco EA-100192 Access Interface Module?
Yes, two documents ship with the EA-100192 record: the Installation and User Guide, and a dedicated Medeco XT Access Interface Module (AIM) sheet. Both are posted as PDFs on the product, which is where an integrator should confirm relay terminal assignments before wiring into a panel.
16) What do I use to signal an unauthorized attempt if I am not running a Medeco XT key system?
The AIM only reports unauthorized events from XT key attempts. Where the opening is not on XT, local annunciation is the usual route instead: the Adams Rite 29-0218 piezo electric horn is a multi-voltage sounder, and the RCI 914 Series delayed egress sounder has field-selectable volume up to 102dB for exit-door alarms.
17) What should I use instead of the Medeco EA-100192 AIM to get power transfer through the door to an electrified lock?
The AIM is not a power transfer device. The Medeco EA-100192 Access Interface Module is a commercial electronic accessory that bridges the Medeco XT Intelligent Key System to electric strikes, maglocks, cameras, and alarm panels through NO and NC relay outputs. To carry power from the frame into the door leaf, the RCI 9500/9501 Series mortise pin transfer is the part for that job, rated 1.5A at 24VAC with a tamper-resistant design. An opening using an electrified mortise lock will typically use a transfer device for the wiring run and, separately, the AIM if XT key events need to drive other systems.
