Advance 71A6542001 MH BAL 1000...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$510.43
$460.43

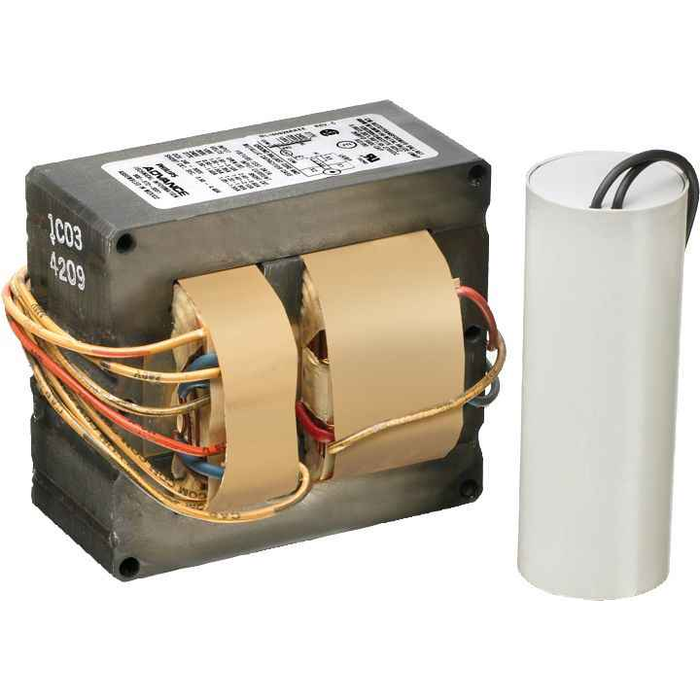

Advance 71A6542001 MH BAL 1000W M47 480V/120T KIT

Advance 71A6542001 MH BAL 1000W M47 480V/120T KIT

(No reviews yet) Write a Review

Model: 71A6542001
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$510.43
$460.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
MH BAL 1000W M47 480V/120T KIT

  • Certifications and Standards

    • BAA
    • EU RoHS
    • ARRA

  • Features

    • Signify Electronics

  • Application

    • Lighting Luminaire Component


71A6542001 - spec sheet

Manufacturer Resources

Product Specs

Ansi Code:
M47
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
METAL HALIDE
Microfarad:
24 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
1000 WTT
Product Height:
4.2500 IN
Product Length:
6.0000 IN
Product Type:
Magnetic HID
Product Wattage:
1000 W
Product Weight:
22.200 Lbs
Product Width:
4.5000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PROBE
Thermal Protection:
CLASS P
Voltage Rating:
480 V
Department:
Electrical

Advance 71A6542001 – Frequently Asked Questions

1) What lamp does the Advance 71A6542001 ballast kit run?
It drives a single 1000W probe-start metal halide lamp with ANSI code M47. One lamp per kit, and the lamp itself has to match M47 (probe start). A pulse-start lamp, or any other ANSI designation, will not operate correctly on this ballast.
2) Will this ballast fit in my existing fixture housing or pole base?
The core and coil measures 6 in long by 4.5 in wide by 4.25 in high. At 22.2 lbs it is a heavy magnetic assembly, so check both the tray footprint and the mounting bracket rating in the housing before swapping it in.
3) Can I put this 1000W metal halide ballast on a dimmer?
No. The 71A6542001 is not dimmable. It is a fixed-output magnetic ballast with a ballast factor of 1, so the lamp runs at full rated lumens whenever it is energized. For dimming or step control on a high bay or sports field, you need a different control approach entirely.
4) How do I make sure I'm ordering the right Advance replacement ballast?
Match on the part number 71A6542001 and check three things against the ballast you are pulling out: 480V input, 1000W M47 probe-start metal halide, and single lamp. If the old unit is a pulse-start or multi-tap type, this is not a direct swap.
5) What power factor does this 1000W HID ballast have, and does it matter for my service load?
Power factor is 0.9, so it is a high power factor ballast. On a 480V branch circuit that keeps input current down compared with a low-PF unit, which matters when you are loading several 1000W fixtures on one feeder. Ballast factor is 1, so lamp output is the full rated value.
