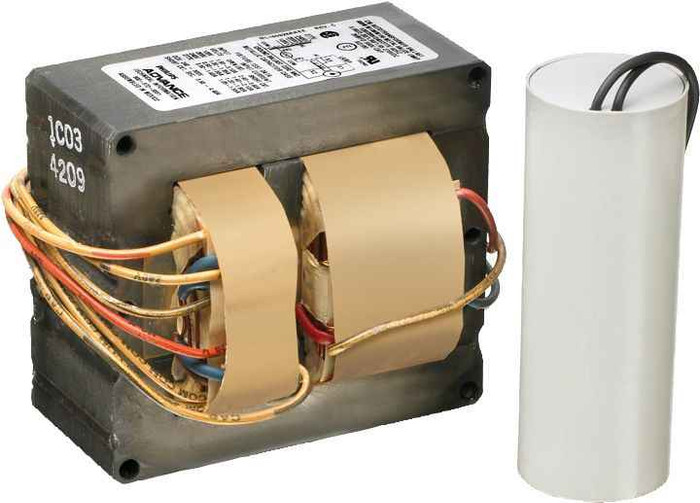

Advance 71A5752001D MH BAL 250W M138/M153 5-TAP KIT

Advance 71A5752001D MH BAL 250W M138/M153 5-TAP KIT

(No reviews yet) Write a Review

Model: 71A5752001D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$440.10
$390.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
MH BAL 250W M138/M153 5-TAP KIT

  • Features

    • Signify Electronics
    • Suitable for Outdoor; UL Listed, CSA, RoHS, EISA

  • Certifications and Standards

    • EU RoHS
    • BAA
    • ARRA

  • Application

    • Lighting Luminaire Component


71A5752001D - spec sheet

Manufacturer Resources

Product Specs

Ansi Code:
M138/153
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
METAL HALIDE
Microfarad:
17 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
250 WTT
Product Height:
4.2500 IN
Product Length:
4.7500 IN
Product Type:
Magnetic HID
Product Wattage:
250 W
Product Weight:
11.500 Lbs
Product Width:
4.0000 IN
Standard:
ULR;CSA certificate;EISA;RoHS Compliant
Start Type:
PULSE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277/480 V
Department:
Electrical

Advance 71A5752001D – Frequently Asked Questions

1) Will this 250W ballast kit fit inside my existing pole-top or shoebox fixture housing?
Check the ballast tray against 4.75 x 4.25 x 4.00 inches, which is the size of the core and coil, and allow for the 11.5 pound weight on the mounting plate. It's a magnetic HID core-and-coil kit, so it's noticeably heavier and bulkier than an electronic ballast of the same wattage.
2) Does this Advance ballast meet Buy American requirements for a government or school job?
It's made in the USA and carries BAA and ARRA compliance, which is what a public-agency or federally funded project specification usually asks for. It's also EISA compliant and RoHS compliant.
3) Does the Advance 71A5752001D kit include the capacitor, or do I order that separately?
The capacitor is part of the kit, rated 17 MFD. That's what makes it a kit rather than a bare core and coil, so the crew has what it needs to complete the change-out.
4) Can this metal halide ballast be dimmed or put on an occupancy sensor step-dim control?
No. The 71A5752001D is non-dimmable and runs at a ballast factor of 1, meaning full rated lamp lumens with no step or dimming control. If the specification calls for dimming or bi-level control in that fixture, this is the wrong ballast.
5) Is this ballast approved for a wet location outdoor fixture?
It's suitable for outdoor use and is UL Listed and CSA certified, with Class P thermal protection built in so the ballast cuts out if the case temperature climbs too high. Common uses are area lighting, wall packs and pole-mounted metal halide fixtures.
