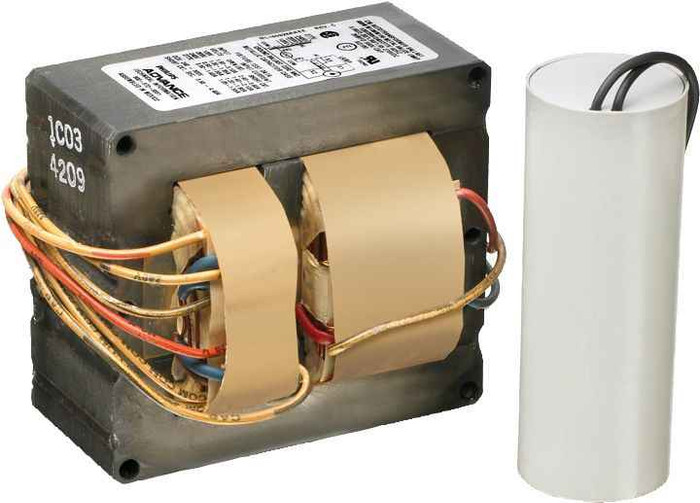

Advance 71A5770001D MH BALLAST 250W M58 QUAD KIT

Advance 71A5770001D MH BALLAST 250W M58 QUAD KIT

(No reviews yet) Write a Review

Model: 71A5770001D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$331.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
MH BALLAST 250W M58 QUAD KIT

  • Application

    • Lighting Luminaire Component

  • Certifications and Standards

    • ARRA
    • BAA
    • EU RoHS

  • Features

    • Signify Electronics
    • Suitable for Outdoor; UL Listed, CSA, RoHS


71A5770001D - spec sheet

Manufacturer Resources

Product Specs

Ansi Code:
M58
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
METAL HALIDE
Microfarad:
15 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
250 WTT
Product Height:
4.2500 IN
Product Length:
4.7500 IN
Product Type:
Magnetic HID
Product Wattage:
250 W
Product Weight:
10.500 Lbs
Product Width:
3.0000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PROBE
Thermal Protection:
CLASS P
Voltage Rating:
120/208/240/277 V
Department:
Electrical

Advance 71A5770001D – Frequently Asked Questions

1) Will the Advance 71A5770001D ballast kit run on 208V, or do I need to order a different voltage?
It's a quad-voltage kit, rated 120/208/240/277V at 60 Hz, so one part number covers all four common line voltages. You select the tap during wiring rather than ordering a voltage-specific ballast, which is why it's a common choice for fleets of fixtures on mixed services.
2) Is the capacitor included with the Advance 71A5770001D, or do I order it separately?
It ships as a kit with a 15 MFD capacitor, along with the core-and-coil ballast. The 15 MFD value is what the 250W M58 circuit calls for, so you don't have to source a capacitor separately to complete the fixture.
3) Will this metal halide ballast fit inside my existing pole head or wall pack housing?
The core and coil measures 4.75 x 4.25 x 3.00 inches and the assembly weighs 10.5 lbs. Measure your ballast tray against those three numbers before you pull the old unit, and make sure the mounting shelf is rated for the weight; magnetic HID ballasts are heavy compared with electronic units.
4) Can this ballast be used in an outdoor parking lot or area light?
Yes, it's suitable for outdoor use in a luminaire. It carries UL listing, CSA certification and RoHS compliance, and includes Class P thermal protection, which shuts the ballast down on an overtemperature condition rather than letting the windings cook.
5) Can I put this 250W metal halide ballast on a dimmer?
No. It's a non-dimmable magnetic HID ballast with a ballast factor of 1, meaning the lamp runs at full rated lumen output whenever it's energized. Control it with a contactor, photocell or time clock, not a dimmer.
6) Does the Advance 71A5770001D meet Buy American requirements for a government job?
It's made in the USA and the product data lists ARRA and BAA among its compliance items, which is what a public agency or institutional procurement office is usually asking for on federally funded work. It also lists EU RoHS.
7) What current draw should I size the branch circuit for on a 250W M58 ballast?
Size from the input watts, not the lamp watts. The ballast has a 0.9 power factor, so it's a high power factor unit and input current stays close to the ideal for the load. Divide your total input VA by the tap voltage you land on (120, 208, 240 or 277) to get amps per fixture, then apply your usual continuous-load derate.
