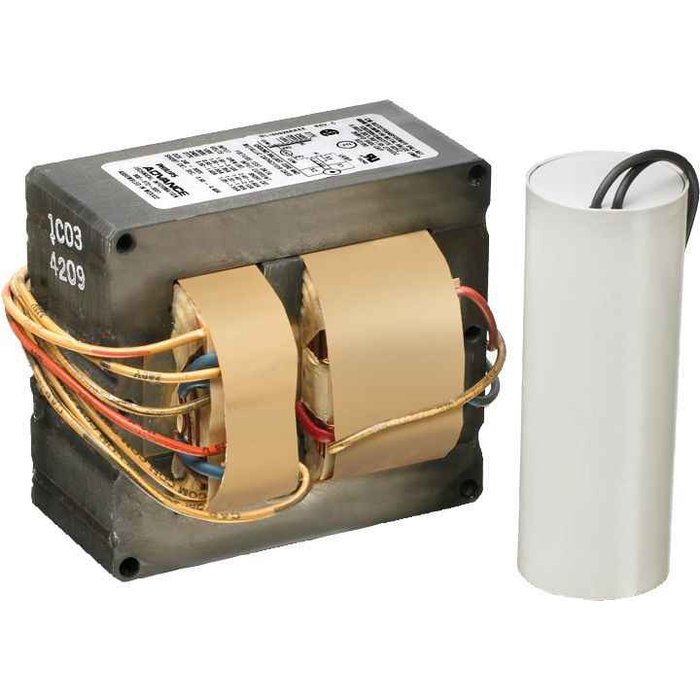

MH BAL 320W M132/154 QUAD KIT
71A5892001D - spec sheet
Application
- Lighting Luminaire Component
Features
- Suitable for Outdoor; UL Listed, CSA, RoHS
- Signify Electronics
Certifications and Standards
- ARRA
- BAA
- EU RoHS
71A5892001D - spec sheet
Manufacturer Resources
Product Specs
- Ansi Code:
- M132/154
- Ballast Factor:
- 1
- Country Of Origin:
- USA
- Dimmable:
- No
- Frequency Rating:
- 60 Hz
- Lamp Type:
- METAL HALIDE
- Microfarad:
- 21 MFD
- Number Of Lamps:
- 1
- Power Factor:
- 0.9
- Power Rating:
- 320 WTT
- Product Height:
- 4.2500 IN
- Product Length:
- 4.7500 IN
- Product Type:
- Magnetic HID
- Product Wattage:
- 320 W
- Product Weight:
- 12.500 Lbs
- Product Width:
- 4.3000 IN
- Standard:
- ULR;CSA certificate;RoHS Compliant
- Start Type:
- PULSE
- Thermal Protection:
- CLASS P
- Voltage Rating:
- 120/208/240/277 V
- Department:
- Electrical
Advance 71A5892001D – Frequently Asked Questions
1) Will the Advance 71A5892001D ballast kit run a 320W pulse start metal halide lamp?
That is exactly what it is built for. The 71A5892001D is a magnetic HID ballast kit rated 320 watts, pulse start, for a single metal halide lamp carrying ANSI code M132/154. If your lamp is a probe start type or a different ANSI designation, it is the wrong ballast.
2) Will this ballast fit in my existing fixture housing, and how much does it weigh?
Plan on a 4.75 x 4.3 x 4.25 inch footprint (length, width, height) and 12.5 pounds. That weight matters for pole-mounted and suspended high bay retrofits, since the ballast tray and its fasteners carry the load.
3) Can this 320W metal halide ballast kit be used in an outdoor fixture like a shoebox or wall pack?
Yes. The Advance 71A5892001D is suitable for outdoor use as a luminaire component and is UL Listed and CSA certified, with Class P thermal protection built in. It still has to be mounted inside the fixture housing, not exposed to weather.
4) What comes in the Advance 320W quad kit, and do I need a separate capacitor?
The kit ships as a core-and-coil ballast with its capacitor, rated 21 MFD. No separate capacitor purchase is needed for the 320W M132/154 application. Verify the capacitor voltage marking matches the tap you wire before energizing.
5) Does this Advance ballast qualify for Buy American requirements on a federal or institutional job?
It is made in the USA and the manufacturer lists ARRA and BAA compliance, along with EU RoHS. That is the documentation procurement officers on federally funded work usually ask for on lighting components.
