Milbank 320 Amp Ringless Meter...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,052.09

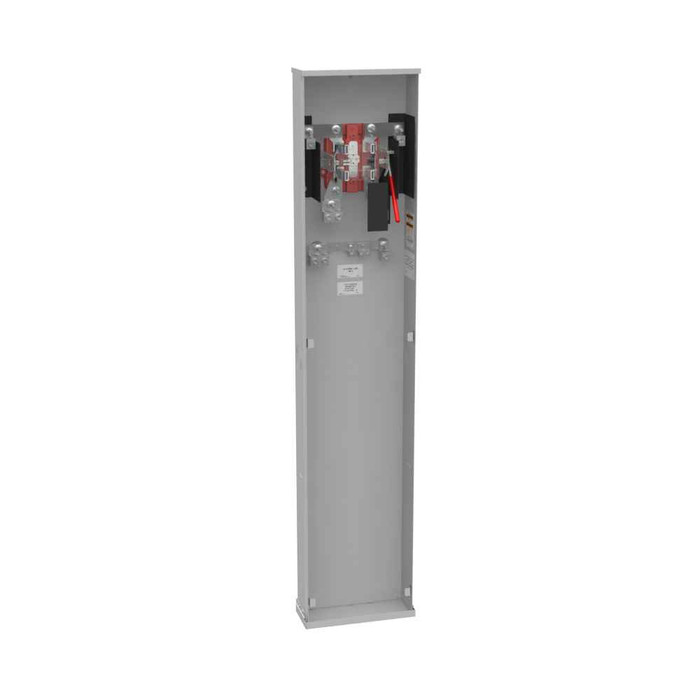

Milbank 4 Terminal Ringless Meter Socket Plain Top Lever Bypass Single Pedestal Direct Bury, 1 Position 320 Ampere

Milbank 320 Amp Ringless Meter Socket with Lever Bypass Single Pedestal Direct Bury System

(No reviews yet) Write a Review

Model: U1748-O

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,052.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 320 Amp Ringless Meter Socket with Lever Bypass Single Pedestal Direct Bury System

Professional electrical metering solution for underground service applications

The Milbank 320 Amp Ringless Meter Socket delivers reliable single-phase electrical metering with integrated lever bypass functionality for direct bury pedestal installations. Constructed with G90 galvanized steel and powder coat finish, this UL Listed Type 3R enclosure provides durable outdoor performance with 600V AC rating and 60 Hz frequency compatibility for professional electrical service applications.

Professional Features & Benefits

  • 320 Continuous Ampere Rating: Handles high-capacity electrical loads for demanding residential and commercial applications with reliable current handling.
  • Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption, improving operational flexibility and reducing downtime.
  • Type 3R UL Listed Enclosure: Provides weather-resistant protection against rain, sleet, and ice damage for dependable outdoor installation performance.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with powder coat finish for extended service life.
  • Direct Bury Pedestal Design: Simplifies underground installation with 64-inch height providing proper clearance and accessibility for utility connections.
  • 4 Barrel Ground Lug: Ensures proper electrical grounding with secure connection points for enhanced safety and code compliance.
  • Glass Polyester Insulation: Provides reliable electrical isolation and arc resistance for safe operation under varying environmental conditions.

Technical Specifications

  • Amperage Rating: 320 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: 4 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Main Breaker Size: No Main Breaker
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: UPHD
  • Product Height: 64 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Size: 4.844L x 13W x64H
  • Product Type: Ringless Meter Socket
  • Special Features: Wisconsin Area
  • Standard: UL Listed;Type 3R
  • Terminal: 3/8 Inch Stud
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Residential Service Entrance Metering
  • Commercial Building Electrical Service
  • Multi-Unit Property Metering
  • Industrial Facility Power Distribution
  • Municipal and Utility Infrastructure
  • Underground Service Installations
  • High-Capacity Electrical Systems

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather resistance for dependable outdoor performance. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability, while the professional-grade insulation and grounding systems provide safe, code-compliant operation for demanding electrical service applications.

Manufacturer Resources

Product Specs

Amperage Rating:
320 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Underground
Equipment Ground:
4 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Main Breaker Size:
No Main Breaker
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
UPHD
Product Height:
64 IN
Product Length:
4.844 IN
Product Size:
4.844L x 13W x64H
Product Type:
Ringless Meter Socket
Special Features:
Wisconsin Area
Standards:
UL Listed;Type 3R
Terminal:
3/8 Inch Stud
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
Amps:
320
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Plain Top
Installation Category:
Pedestal
Terminal Type:
3/8 Inch Stud
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz

Milbank U1748-O – Frequently Asked Questions

1) Will a Milbank U1748-O 320 amp meter socket work for an underground service, or do I need an overhead-fed socket?
Underground only. The U1748-O is built for underground cable entry and mounts on a pedestal that gets direct buried, with a plain top (no hub opening) so there is no provision for an overhead service mast. If the service drop comes in overhead, this is the wrong socket. For a buried lateral feeding a 320 amp single phase service, it is the right configuration.
2) Does the Milbank 320A ringless pedestal socket include a main breaker or disconnect?
No breaker. The U1748-O is a meter socket only, with zero main breakers and no receptacles in the enclosure. It gives you one meter position and nothing else, so the service disconnect and any overcurrent protection have to be provided separately downstream. If you want metering and the disconnect in one can, you need a meter-main combination rather than this socket.
3) What is the difference between the 4 terminal and 5 terminal versions of the Milbank U1748-O?
Terminal count is the ordering decision, and it is set by your utility. Milbank builds this socket as U1748-O-WI in 4 terminal and U1748-O-5T9-WI in 5 terminal, both to Wisconsin area requirements, plus a standard U1748-O. The fifth terminal is the neutral/ground jaw some utilities require for their metering. Everything else is common across the three: 320 continuous amps, 600V AC, 60 Hz, single phase, lever bypass, one meter position. Order the terminal arrangement your serving utility specifies, because the meter will not be set otherwise.
4) Can the meter be pulled on this Milbank socket without killing power to the building?
That is what the lever bypass is for. The U1748-O has a lever bypass provision, so a utility tech or electrician can close the bypass and carry load around the meter socket jaws while the meter itself is removed or swapped. Ringless construction means the cover comes off with the sealing ring, giving access to the jaws. It does not replace a service disconnect, and the bypass is a utility-operated device, not a customer switch.
5) Can I use this Milbank socket for a three phase or 480 volt service?
No. The U1748-O is a single phase socket rated 600 volts AC maximum at 60 Hz with one meter position. Single phase means a 120/240V residential or light commercial service. A three phase service, whether 120/208V or 277/480V, needs a three phase socket with the correct jaw configuration, and this one will not meter it.
6) Is this Milbank socket approved for Wisconsin utility service?
Two of the three builds are made to Wisconsin area requirements: U1748-O-WI with 4 terminals and U1748-O-5T9-WI with 5 terminals. The third, U1748-O, is the standard build. Utility-specific socket approvals vary by serving utility even within a state, so match the catalog number to what your utility's meter department has on its approved list.
7) What wire lugs and ground connections come on the Milbank U1748-O 320 amp socket?
Line and load land on 3/8 inch stud terminals, so you are landing lugs or terminating to studs rather than to set-screw box lugs. Grounding is handled by a 4 barrel ground lug, giving four separate points for the grounding electrode conductor and equipment grounds. Confirm your conductor terminations suit a 3/8 inch stud before you cut the feeders.
8) Will a direct bury meter pedestal hold up outdoors in a wet or salted location?
The enclosure is UL Listed and rated Type 3R, which is the outdoor rating for rain, sleet and ice, and the can is G90 galvanized steel with a powder coat finish. Internal isolation is glass polyester. Type 3R is a rain-tight rating, not a submersion rating, so the below-grade portion of a pedestal installation relies on the buried section being backfilled and sealed per the install instructions rather than on the 3R rating itself.
9) Can I meter more than one unit off this Milbank pedestal for a duplex or multi-unit property?
One tenant only. The U1748-O carries a single meter position, so it meters one service. A duplex, fourplex or small apartment building needs a multi-position (gang) socket or a metering pack with one position per tenant. Where several detached units share a buried lateral, the usual approach is a separate pedestal per unit or a single multi-position unit, not this one socket split.
10) What is a ringless meter socket and does my utility accept one?
Ringless means the cover secures directly to the socket without a separate sealing ring around the meter, so the cover lifts away for access to the jaws. Ring-type sockets use a locking ring that the utility seals instead. Utilities specify one or the other and generally will not set a meter on the wrong style, so check which your serving utility requires before ordering. The U1748-O is ringless, with a plain top and lever bypass.
