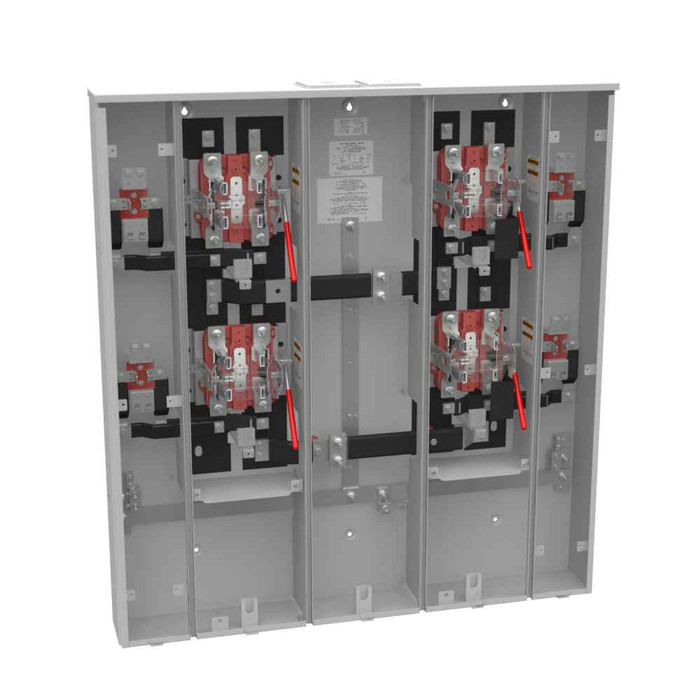

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate - LILCO Approved

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate - LILCO Approved

Professional meter socket solution with integrated bypass capability

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass functionality and LILCO approval for Long Island applications. Featuring 5-terminal configuration with 200 continuous ampere rating, this surface-mount meter socket accommodates up to 240V AC service with overhead or underground cable entry options. Constructed with G90 galvanized steel and powder coat finish for durability in Type 3R rated enclosures.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
• Lever Bypass Provision: Enables safe meter removal and replacement without service interruption for maintenance operations.
• 5-Terminal Ringless Design: Provides secure electrical connections without compression rings for simplified installation and service.
• LILCO Approval: Meets Long Island Lighting Company specifications for compliant installations in designated service territories.
• Type 3R Enclosure Rating: Weather-resistant construction protects against rain, sleet, and ice formation for outdoor installations.
• G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish ensures long-term durability and professional appearance.
• Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation configurations.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket With Main
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: CUHD
• Product Length: 6 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Type: Ringless Meter Socket
• Special Features: Long Island Lighting Company
• Standard: UL Listed;Type 3R
• Terminal: 3/8 Inch Stud
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service installations requiring meter bypass capability
• Light commercial facilities with 200A service requirements
• Multi-unit residential properties with individual metering needs
• Long Island service territory installations requiring LILCO compliance
• Retrofit applications where lever bypass functionality is preferred
• Overhead and underground service connection projects

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability with UL Listed certification and Type 3R weather resistance. The G90 galvanized steel construction with powder coat finish ensures long-term performance in demanding outdoor environments, while glass polyester insulation provides electrical safety and durability for professional electrical installations.
