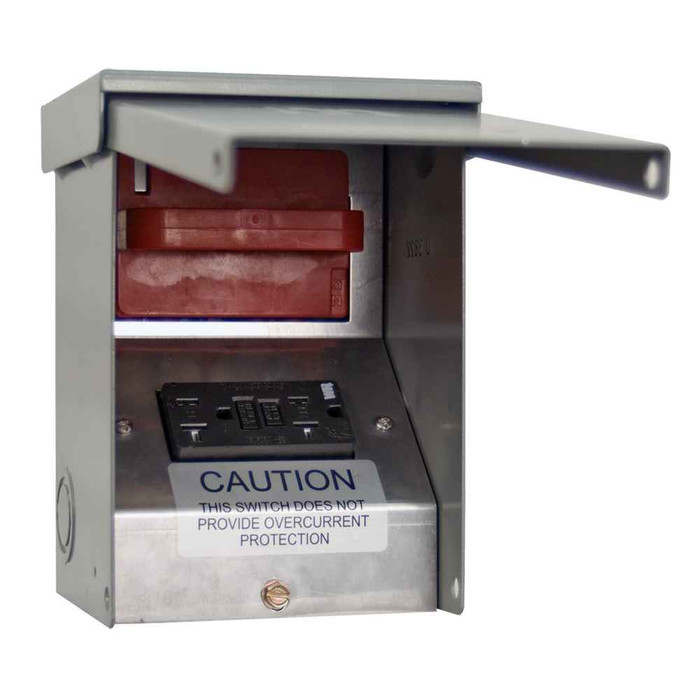

Milbank 60 Amp Non-Fused AC Disconnect Switch, Type 3R, Pull Out, Surface Mount with 20A GFCI - enclosure shown open displaying pull-out disconnect block and GFCI outlet

Milbank 60 Amp Non-Fused AC Disconnect Switch Type 3R Pull Out Surface Mount with 20A GFCI

(No reviews yet) Write a Review

Model: U3822-20GWR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$101.47
$93.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank U3822-20GWR - 60A Non-Fused AC Disconnect, Type 3R with 20A GFCI

The Milbank U3822-20GWR is a 60 Ampere non-fused AC disconnect switch designed for air conditioning and HVAC equipment isolation. The Type 3R painted steel enclosure is rated for outdoor and wet-location installations. A pull-out contact block provides a visible, positive disconnect for safe service access. Integrated 20 Ampere GFCI protection meets NEC personnel-protection requirements without a separate device. Rated to 240V AC with a 10,000 Ampere interrupting capacity (10kAIC). UL Listed. Surface mount with knockout conduit entries.

Key Features

  • 60A / 240V AC Rating: Handles standard residential and light-commercial AC loads with a 2-pole pull-out block.
  • Type 3R Painted Steel Enclosure: Weather-resistant construction suitable for outdoor surface-mount installations.
  • Integrated 20A GFCI: Built-in ground fault protection for NEC code compliance - no separate GFCI device required.
  • Pull-Out Contact Configuration: Visible isolation mechanism confirms positive disconnect during service.
  • 10,000A Interrupting Capacity (10kAIC): Rated for high fault-current environments.
  • 10 HP Motor Rating: Suitable for compressor and motor loads up to 10 horsepower.
  • Knockout Conduit Connections: Flexible field wiring entry for surface-mount installations.
  • UL Listed: Certified to applicable UL standards for AC disconnect switches.

Technical Specifications

  • Model: U3822-20GWR
  • Amperage Rating: 60 Ampere
  • Voltage Rating: Up to 240 Volts AC
  • Number of Poles: 2
  • Contact Configuration: Pull-Out
  • Interrupt Rating: 10,000 Ampere (10kAIC)
  • Motor Rating: 10 HP
  • GFCI Rating: 20 Ampere
  • Enclosure Type: Type 3R, Painted Steel
  • Mounting: Surface Mount
  • Conduit Connection: Knockouts
  • Product Dimensions: 5.065 in. (L) × 4.672 in. (W) × 7.5 in. (H)
  • Standards: UL Listed; Type 3R
  • Product Family Code: ACDS
  • UNSPSC: 39122233

Typical Applications

  • Residential and light-commercial air conditioning unit disconnects
  • Heat pump installations
  • HVAC equipment isolation at the unit
  • Outdoor equipment requiring GFCI protection (pool, spa, compressor)

Manufacturer Resources

Product Specs

Amperage Rating:
60 Ampere
Application:
Air Conditioner Disconnect
Brand Name:
Milbank
Conduit Connection:
Knockouts
Connection:
Pullout
Contact Configuration:
Pull Out
Configuration:
Painted Steel
Interrupt Rating:
10,000 Ampere Interrupting Capacity
Number Of Poles:
2
Product Family Code:
ACDS
Product Height:
7.5 IN
Product Length:
5.065 IN
Product Size:
5.065 x 4.672 x 7.5
Product Type:
Air Conditioner Disconnect
Special Features:
10 Horse Power;20 Ampere GFCI
Standards:
UL Listed;Type 3R
Unspsc Number:
39122233
Voltage Rating:
Up to 240 Volts Alternating Current
Product Mounting:
Surface Mount
Amps:
60
Product Width:
4.672 IN
Department:
Electrical
Product Subgroup:
Safety Switches & Disconnects
Product Group:
Power Distribution

Milbank U3822-20GWR – Frequently Asked Questions

1) Will a Milbank U3822-20GWR 60 amp disconnect handle a 3 or 4 ton residential AC condenser?
Sized right for it. The U3822-20GWR is a 2-pole, 60 amp pull-out disconnect rated up to 240 volts AC with a 10 HP motor rating, which covers the compressor loads on typical residential and light-commercial condensers and heat pumps. Check the nameplate on the unit for its MCA and maximum overcurrent device size, since this is a non-fused switch - it isolates the equipment, it does not provide the branch overcurrent protection.
2) Does the Milbank U3822-20GWR have a GFCI receptacle built in, so I don't need a separate service outlet at the condenser?
It does. A 20 amp GFCI is integrated into the U3822-20GWR enclosure, so the service receptacle NEC requires near HVAC equipment is part of the same box instead of a second device on its own strap. One enclosure, one set of knockouts, one mounting job.
3) Can this Milbank pull-out disconnect be mounted outdoors on the side of the house next to the condenser?
Yes. The U3822-20GWR uses a Type 3R painted steel enclosure, which is the rating for outdoor, rain-exposed wall mounting, and it is a surface-mount box, so it goes on the exterior wall surface rather than into it. Conduit lands through knockouts, so bring your whip or EMT in at the entry point that suits the run.
4) Non-fused or fused AC disconnect - which one do I need for my air conditioner?
The U3822-20GWR is non-fused, which is what you want when the condenser nameplate calls for a HACR breaker at the panel to provide the branch protection. It only isolates. If the nameplate specifies maximum fuse size or the unit requires fuses at the disconnect, a non-fused pull-out will not satisfy that and you need a fused disconnect instead. Read the nameplate first, then pick.
5) How much wall space do I need to mount a Milbank U3822-20GWR?
The enclosure measures 5.065 x 4.672 x 7.5 inches, with 7.5 inches the height. That is a small footprint, but leave working clearance in front and enough room for the pull-out block to come straight out of the face. Mount it within sight of the equipment it serves.
6) Is a pull-out disconnect acceptable for lockout during service, or do I need a switch-type disconnect?
A pull-out gives visible, positive isolation - the block physically comes out of the U3822-20GWR and the circuit is open where a technician can see it. That is why HVAC techs prefer them. What a pull-out does not give you is a lockable operating handle in the off position. If your facility's LOTO program requires a lockable handle, specify a switch-type disconnect rather than a pull-out.
7) Will a Milbank 60A disconnect hold up on a 240V circuit with high available fault current?
Rated at 10,000 amperes interrupting capacity, which covers the fault current available at the typical residential or light-commercial service where a condenser disconnect sits. On a job where the engineer has calculated available fault current above 10kAIC at that point in the system, this unit is not the right choice and you need a device with a higher AIC rating.
8) What is the exact Milbank part number to order for a 60A non-fused AC disconnect with a 20A GFCI?
U3822-20GWR. That is the Milbank catalog number for the 60 amp, 2-pole, non-fused pull-out AC disconnect in a Type 3R painted steel enclosure with the 20 amp GFCI built in, UL Listed. Specify it by that number when you are standardizing condenser disconnects across a portfolio.
9) Can I use this Milbank disconnect on a pool pump or spa instead of an air conditioner?
It works anywhere you need a 2-pole 240 volt isolating means with GFCI protection outdoors - pool and spa equipment, compressors, heat pumps. The 20 amp GFCI and Type 3R enclosure are the reason it suits those locations. Match the equipment's load and required protection to the 60 amp, 10 HP, 240 volt rating before you commit.
