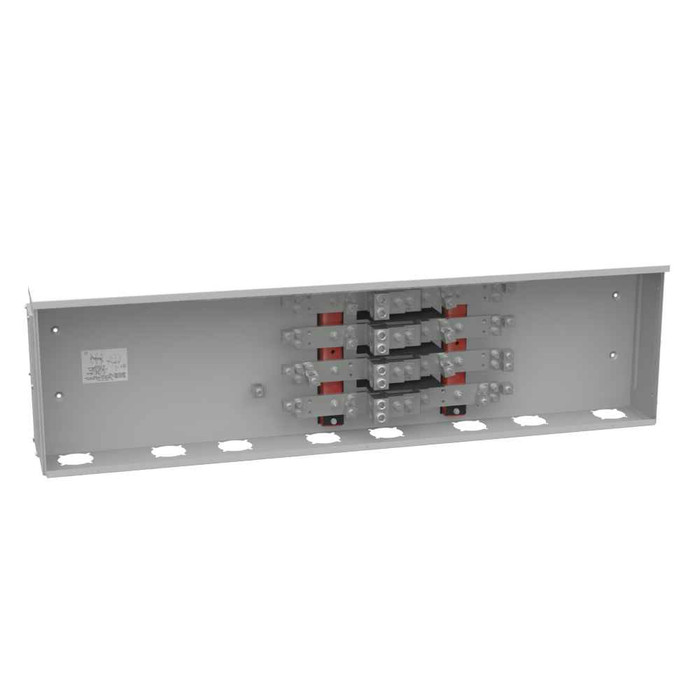

Milbank Line-to-Load Bussed Gutter, 600V, Outdoor Rated Type 3R

Milbank Line-to-Load Bussed Gutter 600V Type 3R Outdoor Distribution System

(No reviews yet) Write a Review

Model: BC338

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,756.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Line-to-Load Bussed Gutter 600V Type 3R Outdoor Distribution System

Professional Power Distribution for Outdoor Applications

The Milbank Line-to-Load Bussed Gutter delivers reliable 600V power distribution with Type 3R outdoor rating for versatile electrical installations. Constructed with G90 galvanized steel and ANSI 61 gray powder coat finish, this professional distribution system accommodates copper and aluminum conductors with flexible wire connection options from 4 AWG to 600 kcmil line side and 6 AWG to 250 kcmil load side lugs.

Professional Features & Benefits

  • 600V Rating: Handles up to 600 volts alternating current for versatile power distribution applications across commercial and industrial settings.
  • Type 3R Outdoor Rating: Weather-resistant enclosure provides reliable protection against rain, sleet, and ice formation for outdoor installations.
  • 42,000 Ampere Short Circuit Rating: High fault current capability ensures safe operation and protection in demanding electrical environments.
  • G90 Galvanized Steel Construction: Durable material with powder coat finish delivers long-lasting corrosion resistance and structural integrity.
  • Flexible Wire Connections: Accommodates 4 AWG to 600 kcmil line side lugs and 6 AWG to 250 kcmil load side lugs for versatile conductor sizing options.
  • Copper and Aluminum Compatible: Accepts both conductor materials with polypropylene insulation for installation flexibility and cost optimization.
  • UL Listed: Meets rigorous safety standards ensuring reliable performance and code compliance for professional installations.

Technical Specifications

  • Application: Bus Gutter
  • Brand Name: Milbank
  • Conductor Material: Copper and Aluminum
  • Departent: Electrical
  • Insulation Material: Polypropylene
  • Jacket Material: No Jacket Material
  • Product Color: ANSI 61 Gray
  • Product Family Code: BUSG
  • Product Finish: Powder Coat Finish
  • Product Material: G90 Galvanized Steel
  • Product Type: Line to Load Distribution
  • Short Circuit Rating: 42000 Ampere
  • Standard: UL Listed;Type 3R
  • Temperature Rating: No Temperature Rating
  • Unspsc Number: 26121541
  • Voltage Rating: Up to 600 Volts Alternating Current
  • Wire Connection: 4 AWG to 600 kcmil Line Side Lugs and 6 AWG to 250 kcmil Load Side Lugs

Professional Applications

  • Commercial Building Power Distribution
  • Industrial Facility Electrical Systems
  • Outdoor Electrical Installations
  • Multi-Tenant Properties
  • Manufacturing Plant Distribution
  • Utility Service Connections
  • Emergency Power Distribution Systems

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R outdoor rating for dependable performance in challenging environments. The G90 galvanized steel construction with powder coat finish ensures long-term durability and corrosion resistance for professional electrical distribution applications.

Manufacturer Resources

Product Specs

Application:
Bus Gutter
Brand Name:
Milbank
Conductor Material:
Copper and Aluminum
Insulation Material:
Polypropylene
Jacket Material:
No Jacket Material
Product Family Code:
BUSG
Product Finish:
Powder Coat Finish
Product Type:
Line to Load Distribution
Short Circuit Rating:
42000 Ampere
Standards:
UL Listed;Type 3R
Temperature Rating:
No Temperature Rating
Unspsc Number:
26121541
Voltage Rating:
Up to 600 Volts Alternating Current
Product Color:
ANSI 61 Grey
Product Material:
G90 Galvanized Steel
Department:
Electrical
Product Subgroup:
Electrical
Short Circuit Current:
42000 amperes
Product Details:
Line To Load Distribution
Product Group:
Metering & Service Entrance

Milbank BC338 – Frequently Asked Questions

1) What is a bussed gutter used for on a multi-meter service, and do I need one?
A bussed gutter is the line-to-load distribution box that sits between the service conductors and the meter sockets, splitting one incoming service into feeds for each meter position. The Milbank BC series covers 2 through 6 meter positions in single phase and three phase, so on a multi-tenant building you land the service once and tap each tenant position off the bus instead of splicing in a pull box. If your service is a single feed to a single meter, you don't need a bussed gutter at all.
2) Can the Milbank BC bussed gutter be mounted outside, exposed to weather?
Yes, it's a Type 3R enclosure, which is the outdoor rating for rain, sleet and ice, so it can go on an exterior wall alongside the meter stack. The shell is G90 galvanized steel with an ANSI 61 gray powder coat, which is what keeps it from rusting out in that location. Type 3R is not rated for washdown or dust-tight interiors, so a car wash bay or a dusty mill floor wants a Type 4 or 12 enclosure instead.
3) What size conductors will land in the lugs on a Milbank bussed gutter?
Line side lugs take 4 AWG up to 600 kcmil; load side lugs take 6 AWG up to 250 kcmil. Both accept copper or aluminum, so you can run aluminum service entrance conductors in and copper out, or the other way, without adapters. Note the load side tops out at 250 kcmil, so if a tenant feeder is larger than that this box will not terminate it.
4) What is the short circuit rating on the Milbank BC bussed gutter, and is it enough for my service?
42,000 amperes. That's the available fault current the bus can withstand, and it has to equal or exceed the fault current the utility can deliver at that point in the system. On most commercial and multi-family services the utility transformer will not push past 42 kA at the gutter, but if your utility's available fault current letter says higher, this box is not rated for that location.
5) Will the Milbank bussed gutter work on a 480V three-phase system?
Yes. It's rated up to 600 volts AC, which covers 120/240V single phase, 120/208V wye and 277/480V three phase. Order a three-phase variant for a 480V job, for example BC338 for three meter positions or BC438 for four.
6) How do I pick the right Milbank BC part number for my meter stack?
Two choices decide it: how many meter positions the gutter feeds, and whether the service is single phase or three phase. Single phase runs BC214 for two positions, BC318 for three, BC418 for four and BC518 for five. Three phase runs BC234, BC338, BC438, BC538 and BC638 for two through six positions. Match the position count to the number of tenant feeds you are landing, not to the number of tenants you have today, since spare positions are cheaper to buy now than to add later.
7) Is the Milbank bussed gutter UL Listed for a permitted commercial job?
It is UL Listed, and rated Type 3R. Those are the two designations an inspector looks for on outdoor line-to-load distribution equipment, and they are what lets you use it on a permitted commercial or multi-family service.
8) Is a six-position bussed gutter available in single phase, or only three phase?
Both. Milbank builds a six meter position single phase bussed gutter as well as the three phase BC638. Two through six positions are covered in each phase configuration, so a six-unit single phase apartment building is served without stepping up to a three phase box.
9) What color does the Milbank bussed gutter come in, and will it match the rest of the meter stack?
ANSI 61 gray, powder coated over G90 galvanized steel. ANSI 61 is the standard utility equipment gray, so it lines up with Milbank meter sockets and most switchgear already on the wall rather than standing out as a mismatched box.
