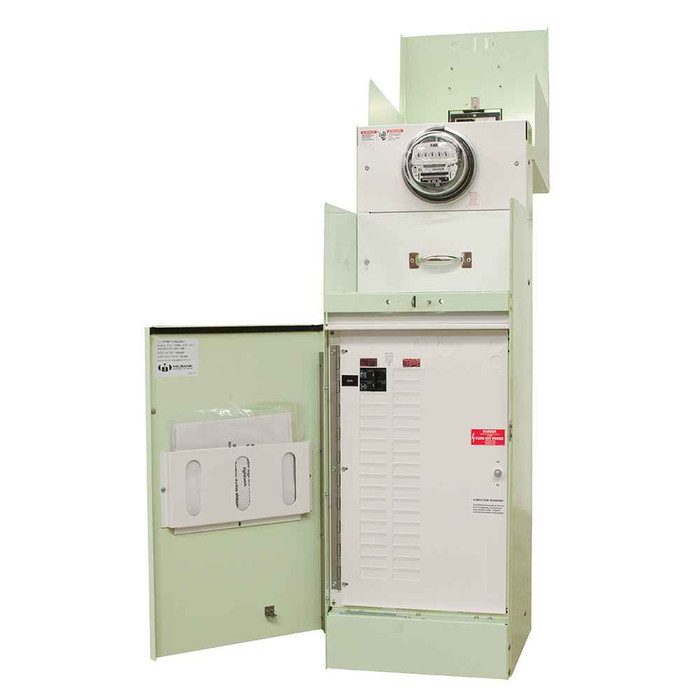

Milbank Main Load Center Ring-Type 100 Amperes 240 Volt Commercial Pedestals

Milbank Ring-Type Commercial Pedestal 100A 240V with 16-Circuit Load Center

(No reviews yet) Write a Review

Model: CP3B11115A42

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,890.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Ring-Type Commercial Pedestal 100A 240V with 16-Circuit Load Center

Professional Power Distribution for Commercial Applications

The Milbank Ring-Type Commercial Pedestal delivers reliable 100 continuous ampere power distribution at 240 volts with integrated 16-circuit load center capability. This pad-mounted unit features Type 3R enclosure rating for outdoor commercial installations, underground cable entry, and UL Listed construction ensuring professional-grade performance for demanding commercial power distribution requirements.

Professional Features & Benefits

  • 100 Continuous Ampere Rating: Provides robust power capacity for commercial electrical loads with reliable continuous operation.
  • Type 3R Enclosure: Weather-resistant construction protects internal components from rain, sleet, and outdoor environmental conditions.
  • 16-Circuit Load Center: Integrated distribution panel accommodates multiple branch circuits for comprehensive power management.
  • Pad Mount Design: Stable ground-level installation eliminates need for pole mounting while providing secure positioning.
  • Underground Cable Entry: Clean underground service connection maintains professional appearance and protects conductors.
  • UL Listed Construction: Meets rigorous safety standards ensuring code compliance and reliable operation.
  • Single Meter Position: Streamlined metering configuration simplifies utility connections and billing management.

Technical Specifications

  • Amperage Rating: 100 Continuous Ampere
  • Application: Power Distribution
  • Brand Name: Milbank
  • Bypass Provision: Link Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: No Hub Opening
  • Insulation: No Insulation
  • Load Center: 16 Circuit Load Center
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Product Family Code: CPEU
  • Product Height: 48 IN
  • Product Length: 17 IN
  • Product Mounting: Pad Mount
  • Product Size: 17L x 16W x48H
  • Product Type: Ring Type Metered Commercial Pedestal
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Width: 16 IN

Professional Applications

  • Commercial Building Power Distribution
  • Retail Center Electrical Service
  • Office Complex Power Management
  • Light Industrial Facilities
  • Multi-Tenant Commercial Properties
  • Professional Service Buildings
  • Commercial Outdoor Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed construction and Type 3R weather-resistant enclosure design. The robust 48-inch height and pad-mount configuration provide stable, professional installation while the integrated ground bar and single mechanical terminal design ensure secure electrical connections for long-term commercial power distribution performance.

Manufacturer Resources

Product Specs

Amperage Rating:
100 Continuous Ampere
Application:
Power Distribution
Brand Name:
Milbank
Bypass Provision:
Link Bypass
Cable Entry:
Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
No Hub Opening
Insulation:
No Insulation
Load Center:
16 Circuit Load Center
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Product Family Code:
CPEU
Product Height:
48 IN
Product Length:
17 IN
Product Size:
17L x 16W x48H
Product Type:
Power Outlet Pedestal
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Product Mounting:
Pad Mount
Amps:
100
Product Width:
16 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
No Insulation
Hub Style:
No Hub Opening
Installation Category:
Pad Mount
Terminal Type:
Single Mechanical
Frequency:
60 hertz
Product Details:
Ring Type Metered Commercial Pedestal
Product Group:
Power Distribution

Milbank CP3B11115A42 – Frequently Asked Questions

1) Will a Milbank 100A ring-type commercial pedestal fit an underground service, or do I need overhead entry?
Underground only. The CP3B pedestal is built for underground cable entry and has no hub opening in the top, so there is no provision to land overhead conduit through the enclosure roof. If the service drop is overhead, this is the wrong enclosure type for the job.
2) How much room do I need on the pad for a Milbank CP3B commercial pedestal?
Plan the pad for a footprint of 17 x 16 inches with the unit standing 48 inches tall. It is a pad-mount design, so it sets at ground level on the housekeeping pad rather than strapping to a pole. Pour or size the pad to the 17 by 16 footprint and keep the working clearance in front of the meter and load center door clear.
3) How many circuits can I run out of a Milbank 100 amp pedestal, and is the main breaker included?
Most CP3B configurations carry a 16-circuit load center with one main breaker built in, so the 100 amp main and the branch distribution are in the same pedestal. One configuration, the 7-terminal CP3B11513A, uses a 12-circuit load center instead. Branch breakers themselves are ordered separately by pole count and trip rating.
4) What is the difference between the 4-terminal and 7-terminal Milbank CP3B pedestals?
The terminal count has to match what the serving utility requires for the metering form. The 4-terminal versions (CP3B11115A22, CP3B11115A42, CP3B11115ASS) come with the 16-circuit load center; the 7-terminal CP3B11513A comes with a 12-circuit load center. Get the terminal count from the utility's meter socket specification before ordering, because the socket is not field convertible between the two.
5) Which short circuit rating do I order on a Milbank CP3B pedestal, 22kA or 42kA?
That comes off the utility's available fault current at the service point, not off the load. The mint green CP3B pedestal is offered at 22kA (CP3B11115A22) and 42kA (CP3B11115A42), and there is a T-fuse main version rated 50kA (CP3B1113JA50) for higher available fault current. The pedestal's interrupting rating has to equal or exceed the fault current the utility states for that transformer.
6) Can a Milbank ring-type pedestal be installed outdoors in the weather?
Yes, the CP3B pedestal is a Type 3R enclosure and UL Listed, so it is rated for outdoor use against rain and sleet. Type 3R is the standard rating for outdoor service equipment; it is not a washdown or dusttight rating, so a car wash bay, food plant, or coastal splash zone is a different conversation. In coastal or corrosive air, the stainless versions (CP3B11115ASS, CP3B111IRASS) hold up better than the painted mint green.
7) Can I use a Milbank CP3B pedestal to meter two tenants in a strip center?
No. The CP3B is a single meter position pedestal, so it meters one account. Two tenants on separate utility bills need two pedestals or a multi-position meter pack. What it does give you downstream of that one meter is a 16-circuit load center with a single main, which is the right build for one tenant space or one common-area service.
8) Is there a Milbank pedestal for an irrigation service or well pump?
Yes. Two of the CP3B builds are irrigation-specific pedestals, CP3B111IRASP in mint green and CP3B111IRASS in stainless, both 4 terminal. They are the ones to spec for a landscape irrigation controller or pump service rather than the general 16-circuit load center version, which is built for branch circuit distribution in a building.
9) Does the Milbank CP3B pedestal have a meter bypass, and does the utility need one?
It has a link bypass, which lets the meter be pulled and the load stay energized through the bypass links. Many utilities require bypass on commercial metering so they can change the meter without dropping the tenant. It is a single meter position, so it serves one metered account, not a multi-tenant bank.
10) What are the service conductor terminations in the Milbank 100A pedestal, and is there a ground bar?
Line and load land on single mechanical terminals, so you are torquing set-screw lugs on the conductors rather than crimping. An equipment ground bar is included, so the grounding electrode conductor and equipment grounds have a factory landing point. The unit is rated 100 continuous amperes at 60 Hz.
11) Does the Milbank commercial pedestal come with receptacles for temporary power?
No receptacles are provided. The CP3B is a metered distribution pedestal, not a temp-power or RV outlet pedestal, so if you need GFCI receptacles or a twist-lock at the pedestal you either feed them from the 16-circuit load center or spec a temporary power outlet pedestal instead.
12) What does the T-fuse main version of the Milbank pedestal do differently?
CP3B1113JA50 uses a T-fuse type main instead of a load center main breaker and carries a 50kA rating. Utilities that require fused service equipment, or sites where the available fault current exceeds what the 22kA and 42kA breaker versions cover, take this build. If you need branch circuit distribution in the pedestal, the 16-circuit load center versions are the ones to look at.
13) Is the Milbank pedestal enclosure insulated?
No insulation is included in the CP3B pedestal. It is a bare Type 3R sheet enclosure, so in cold climates any freeze protection for equipment inside, such as an irrigation controller, has to be handled separately rather than relying on the cabinet.
