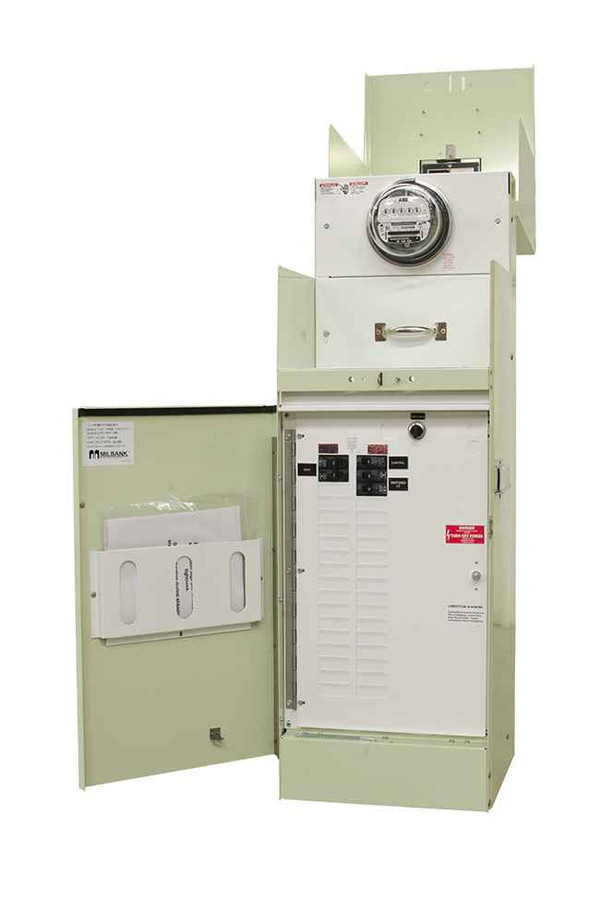

Milbank Ring-Type Metered Commercial Pedestal 200A 240V with 50A Double Pole Breaker

Milbank Ring-Type Metered Commercial Pedestal 200A 240V with 50A Double Pole Breaker

(No reviews yet) Write a Review

Model: CP3B12513A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7,284.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Ring-Type Metered Commercial Pedestal 200A 240V with 50A Double Pole Breaker

Professional Power Distribution for Commercial Applications

The Milbank Ring-Type Metered Commercial Pedestal delivers reliable 200 continuous ampere power distribution with integrated metering capability. This pad-mounted unit features G90 galvanized steel construction with powder coat finish for durability, single mechanical terminals, and includes one double pole 50 ampere breaker for versatile load management. UL Listed with Type 3R rating for outdoor commercial installations.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides substantial power capacity for demanding commercial electrical distribution requirements.
  • Ring-Type Metered Design: Integrated single position metering enables accurate power monitoring and billing applications.
  • G90 Galvanized Steel with Powder Coat: Superior corrosion resistance and long-lasting durability in outdoor environments.
  • Type 3R UL Listed: Weather-resistant enclosure meets stringent safety standards for reliable outdoor operation.
  • Pad Mount Configuration: Stable ground-level installation with 48" height for convenient access and service.
  • 50A Double Pole Breaker Included: Built-in circuit protection provides immediate load management capability.
  • Underground Cable Entry: Clean installation with protected wiring connections for professional appearance.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Power Distribution
  • Brand Name: Milbank
  • Bypass Provision: Link Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: No Hub Opening
  • Insulation: No Insulation
  • Number Of Jaws: 4 Terminal
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Product Family Code: CPEU
  • Product Height: 48 IN
  • Product Length: 17 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pad Mount
  • Product Size: 17L x 16W x48H
  • Product Type: Ring Type Metered Commercial Pedestal
  • Special Features: One Double Pole 50 Ampere Breaker
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Width: 16 IN

Professional Applications

  • Commercial Building Power Distribution
  • Retail and Office Facilities
  • Multi-Tenant Properties
  • Industrial Service Entrances
  • Municipal and Government Buildings
  • Educational Institutions
  • Healthcare Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the comprehensive grounding system and professional-grade terminals provide safe, dependable power distribution for critical commercial applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Power Distribution
Brand Name:
Milbank
Bypass Provision:
Link Bypass
Cable Entry:
Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
No Hub Opening
Insulation:
No Insulation
Number Of Jaws:
4 Terminal
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Product Family Code:
CPEU
Product Height:
48 IN
Product Length:
17 IN
Product Size:
17L x 16W x48H
Product Type:
Power Outlet Pedestal
Special Features:
One Double Pole 50 Ampere Breaker
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pad Mount
Amps:
200
Product Width:
16 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
No Insulation
Hub Style:
No Hub Opening
Installation Category:
Pad Mount
Terminal Type:
Single Mechanical
Frequency:
60 hertz
Product Details:
Ring Type Metered Commercial Pedestal
Number of Terminations:
4
Product Group:
Power Distribution

Milbank CP3B12513A – Frequently Asked Questions

1) Will the Milbank ring-type commercial pedestal fit a 200 amp service?
The Milbank CP3B ring-type metered pedestal is rated 200 continuous amperes at 60 Hertz, so it handles a 200 amp service directly. The meter socket side is a single position, ring type, with link bypass, which is what most utilities require for a 200 amp commercial meter. Equipment ground is a ground bar, and the line and load terminals are single mechanical lugs.
2) How much pad space do I need to pour for a Milbank CP3B pedestal?
Plan the pad around 17 x 16 x 48 inches, the pedestal's stated size, with 17 inches the length, 16 the width, and 48 the height above the pad. It is a pad mount unit, so it is anchored at ground level and the meter sits at roughly eye level for the utility reader. Feed is underground only, so the conduit stub-ups have to come through the pad, not down a riser.
3) Can I run overhead service into a Milbank CP3B commercial pedestal?
No. The CP3B pedestal is built for underground cable entry and it ships with no hub opening, so there is nowhere to land a weatherhead or a service mast hub on top. If the service drop is overhead, you need a meter socket or pedestal ordered with a hub opening instead of this one.
4) Is the Milbank CP3B pedestal rated for outdoor installation?
Yes, it is UL Listed and built to Type 3R, the rain-tight outdoor enclosure rating. The housing is G90 galvanized steel with a powder coat finish, which is what holds up on a pad exposed to weather and sprinkler overspray. There is no insulation in the enclosure, so it is not a cold-weather conditioned cabinet, just a weather-resistant one.
5) What is the difference between the 4 terminal and 7 terminal Milbank CP3B pedestals?
Jaw count is set by the utility, not by you. The 4 terminal versions (CP3B12110A22SL1, CP3B12119A22 and CP3B1213JA50) are the standard single phase 120/240 volt configuration. The 7 terminal version, CP3B12513A, is the network or three phase meter configuration some utilities specify. Get the jaw requirement from the serving utility before ordering, because a socket with the wrong jaw count will not be sealed.
6) How many circuits can I get in a Milbank CP3B metered pedestal?
Four builds are offered and they differ mainly by branch capacity. CP3B12110A22SL1 gives 2 to 16 circuits with a 22kA rating and a switched load provision, CP3B12119A22 gives 24 circuits at 22kA, and CP3B12513A is a 12 circuit breaker unit on a 7 terminal socket. CP3B1213JA50 is not a breaker panel at all, it is a T-fuse type rated 50kA. Pick by how many branch circuits the site needs and what short circuit current rating the engineer called for.
7) Can I plug equipment directly into a Milbank CP3B pedestal, like an RV or a job site pedestal?
No. The CP3B commercial pedestal has zero receptacles. It is a metered power distribution unit that lands on a pad and feeds circuits out by conductor, not a receptacle pedestal. For temporary power or RV service where you need factory-installed 30A and 50A receptacles and GFCI, you need a receptacle-equipped power outlet unit rather than this one.
8) Can the utility pull the meter without killing power to the building on a Milbank CP3B?
Yes, the pedestal is built with link bypass. The bypass links let the meter be removed and changed while the service stays energized, which is what utilities and property managers want on a tenant building where you cannot drop the load to swap a meter. It is a single position socket, so it meters one service, not a multi-tenant bank.
9) What conductors can I land in a Milbank 200A metered pedestal?
Line and load connections are single mechanical terminals, so conductors are torqued into mechanical lugs rather than crimped or bolted to a stud. That means field-installed copper or aluminum service conductors sized for the 200 amp rating go in directly, no separate lug kit needed. Grounding lands on the factory ground bar in the enclosure.
