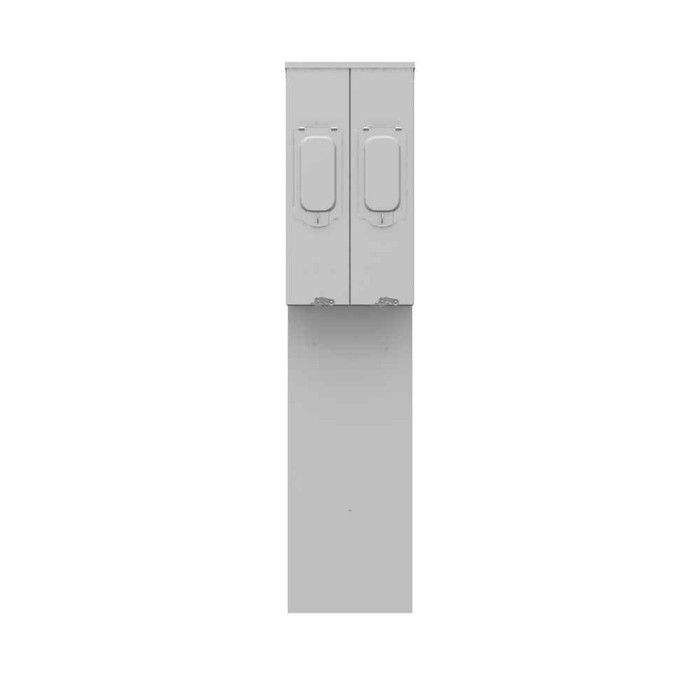

Milbank U8667-O-2/200 4 Terminal Ring Type Plain Top Double Pedestal 2-200 Ampere Main Breaker

Milbank 4 Terminal Ring Type Double Pedestal Meter Socket with Dual 200A Main Breakers

(No reviews yet) Write a Review

Model: U8667-O-2/200

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,895.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 4 Terminal Ring Type Double Pedestal Meter Socket with Dual 200A Main Breakers

Professional dual-meter electrical service solution with integrated main breaker protection

The Milbank 4 Terminal Ring Type Double Pedestal Meter Socket delivers reliable dual-meter electrical service with integrated 200 ampere main breaker protection. This professional-grade pedestal-mounted unit features G90 galvanized steel construction with powder coat finish for superior durability, 1 phase 240V AC service capability, and UL Listed Type 3R enclosure rating for outdoor applications. The 52" height pedestal design provides convenient access while accommodating underground cable entry and dual meter positions for versatile installation requirements.

Professional Features & Benefits

  • Dual 200A Main Breakers: Provides independent overcurrent protection for each meter position, ensuring reliable service isolation and safety compliance.
  • 4 Terminal Ring Type Design: Delivers secure electrical connections with single mechanical terminals supporting 1 AWG to 300 kcmil wire range for flexible installation options.
  • G90 Galvanized Steel Construction: Features powder coat finish over galvanized steel base for exceptional corrosion resistance and long-term outdoor performance.
  • UL Listed Type 3R Enclosure: Meets stringent safety standards with weather-resistant protection suitable for outdoor pedestal installations.
  • 52" Pedestal Height: Provides optimal working height for meter reading and maintenance access while maintaining professional appearance.
  • Underground Cable Entry: Accommodates below-grade service connections with plain top design for clean, professional installation.
  • Glass Polyester Insulation: Ensures reliable electrical isolation and performance across the full 240V AC voltage range with 60 Hz frequency rating.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: Quadplex Ground
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Load Side Wire Range: 1 AWG - 300 kcmil
  • Main Breaker Size: Two 200 Ampere Main Breakers
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 2
  • Number Of Meter Positions: 2 Positions
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: UPMC
  • Product Height: 52 IN
  • Product Length: 12.593 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Size: 12.593L x 12W x52H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 12 IN

Professional Applications

  • Multi-Unit Residential Properties requiring separate metering for individual units
  • Commercial Facilities with dual electrical service requirements
  • Duplex and Multi-Family Housing developments
  • Professional Offices with separate tenant metering needs
  • Retail Establishments requiring independent electrical monitoring
  • Light Industrial applications with dual service requirements

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability in outdoor environments, while the professional pedestal design provides convenient access and maintenance. With quadplex grounding and glass polyester insulation, this meter socket delivers dependable electrical service for demanding dual-meter applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Underground
Equipment Ground:
Quadplex Ground
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Load Side Wire Range:
1 AWG - 300 kcmil
Main Breaker Size:
Two 200 Ampere Main Breakers
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
2
Number Of Meter Positions:
2 Positions
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
UPMC
Product Height:
52 IN
Product Length:
12.593 IN
Product Size:
12.593L x 12W x52H
Product Type:
Ring Type Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
Amps:
200
Product Width:
12 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U8667-O-2/200 – Frequently Asked Questions

1) Can I meter two units off one pedestal with the Milbank U8667-O-2/200?
Yes. The U8667-O-2/200 is a double pedestal socket with 2 meter positions and two separate 200 ampere main breakers, so each tenant gets its own meter and its own overcurrent protection. It is a 1 phase, 240 volt unit at 60 Hz, which is the normal residential and light commercial service arrangement for duplexes and small multi-family buildings.
2) Will the Milbank U8667 pedestal meter socket take overhead service drop?
No. This pedestal is built for underground service only, and it has a plain top with no hub opening for a service mast or weatherhead. If the utility is bringing conductors in overhead, you need a different socket configured with a hub. For a trenched lateral feed it is the right unit.
3) What size conductors will land on the load side lugs of this Milbank double pedestal socket?
The load side terminals are single mechanical lugs rated 1 AWG through 300 kcmil, so anything from a 1 AWG feeder up to 300 kcmil copper or aluminum lands directly. One conductor per lug. Line side entry is underground.
4) Is this a 4 jaw or 5 jaw meter socket, and does that matter for my utility?
It is a 4 terminal (4 jaw) ring type socket, which is the standard single phase 120/240V configuration. Utilities that require a 5th jaw for a neutral or network metering will not accept it, so confirm the jaw count on your utility's approved meter list before you set the pedestal. The ring type design means it takes a ringed meter with a sealing ring rather than a ringless cover.
5) Can this Milbank meter pedestal be installed outdoors?
Yes. It is UL Listed with a Type 3R enclosure rating, which is the rain-tight outdoor classification used for service equipment. The enclosure is G90 galvanized steel with a powder coat finish over it for corrosion resistance in an exposed, ground-mounted location.
6) Does the U8667-O-2/200 have a meter bypass, and will my utility require one?
No bypass provision on this unit. The meter has to be pulled with the service de-energized, or the utility pulls it hot under their own procedure. Some utilities mandate a lever or horn bypass on new installations, particularly for commercial accounts, so check the service requirements before specifying this one.
7) What are the footprint dimensions of the Milbank U8667-O-2/200 pedestal?
The pedestal measures 12.593 long by 12 wide by 52 inches high. That 52 inch height puts the meter faces at a comfortable reading position, and the roughly 12 by 12 base is what you size the concrete pad and anchor layout around.
8) Does this Milbank pedestal include receptacles for a job site or RV hookup?
It has zero receptacles. This is a metering and service pedestal only, with two meter sockets and two 200A mains feeding out to the load side lugs. If you need GFCI receptacles or a 50A RV outlet built into the pedestal, that is a different product line.
9) Is 200 amps per meter position the continuous rating on this socket?
Yes, 200 amps is the continuous ampere rating, and each of the two positions carries its own 200A main breaker. So each tenant is served at a full 200A, not two positions splitting a single 200A service.
10) How is grounding handled in this double meter pedestal?
It is supplied with a quadplex ground, giving four grounding connection points inside the enclosure for equipment grounding and bonding of both service positions. Glass polyester is used for the internal insulation on the socket assembly.
